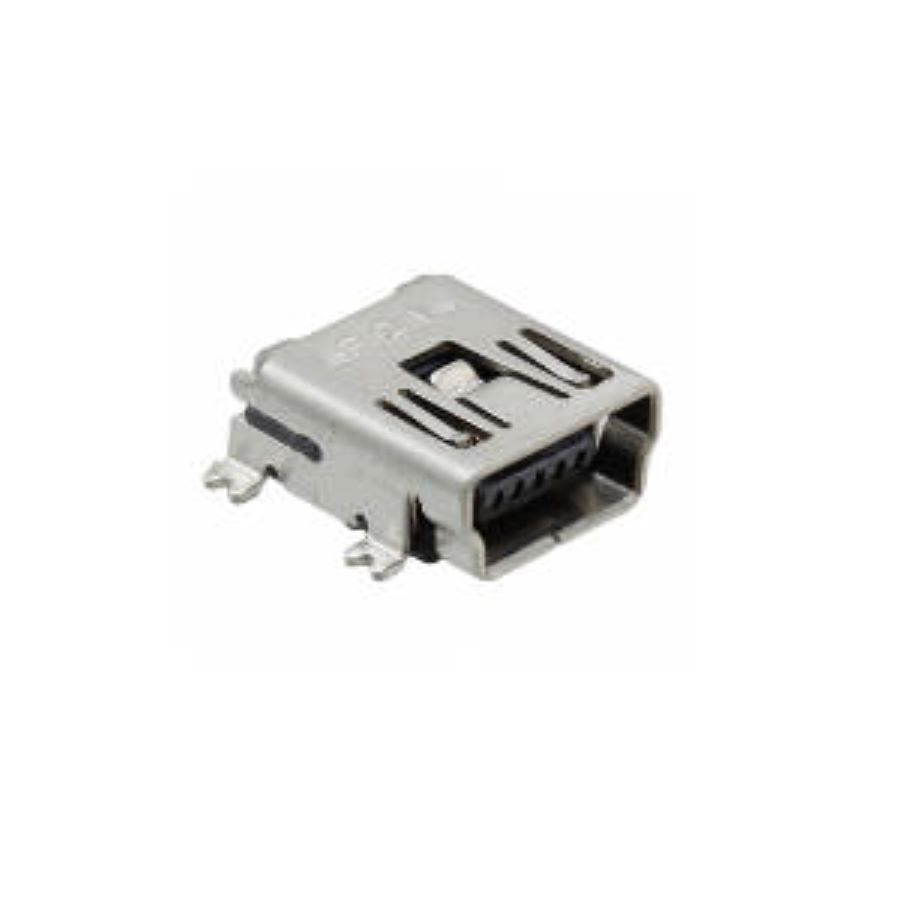

10033526-N3212LF
Manufacturer:
Amphenol
Mfr.Part #:
10033526-N3212LF
Datasheet:
Description:
USB Connectors SMD/SMT USB - mini B Female USB 2.0
| Parameter | Value |
|---|---|
| Length | 9.9 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Height | 4 mm |
| Packaging | Reel |
| Voltage Rating | 30 V |
| Depth | 9.4 mm |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| Contact Plating | Tin, Gold |
| Contact Material(Contact Finish) | Gold, Nickel |
| Pitch | 800 µm |
| Type | USB - mini B |
| Number of Terminals | 5 |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | Black |
| Gender | Female |
| Shielding | Shielded |
| Number of Contacts | 5 |
| USB Standard | USB 2.0 |
| Connector Type | Receptacle, USB |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Plating | Nickel |
| Mounting Angle | Right Angle |
Stock: 5675
Distributors
pcbx
pcbxUnit Price$0.45055
Ext.Price$0.45055
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.45055 | $0.45055 |
| 10 | $0.38301 | $3.83010 |
| 25 | $0.34368 | $8.59200 |
| 50 | $0.33458 | $16.72900 |
| 100 | $0.32573 | $32.57300 |
| 300 | $0.31308 | $93.92400 |
| 500 | $0.30093 | $150.46500 |
