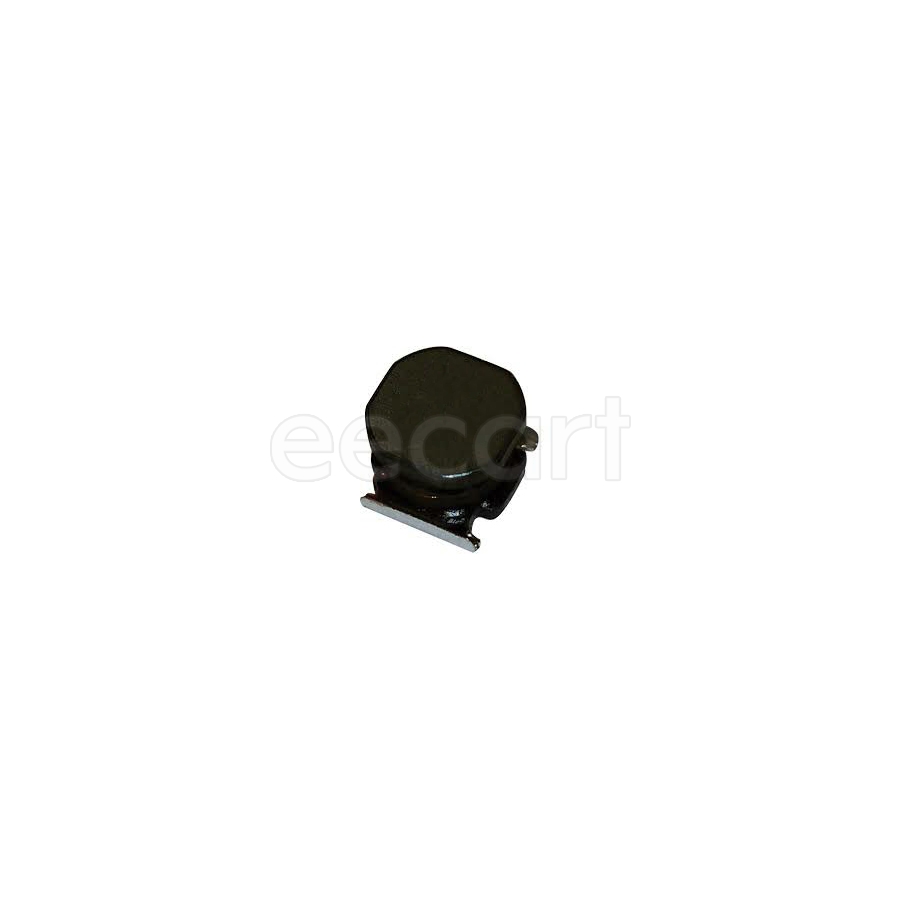

1255AY-1R2N=P3
Manufacturer:
Murata
Mfr.Part #:
1255AY-1R2N=P3
Datasheet:
Description:
Fixed Inductors 6.30mmL×6.30mmW×4.50mmH SMD/SMT 1.2 µH 30 % 5.9 A 12 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 30 % |
| Height - Seated (Max) | 4.5 mm |
| Length | 6.3 mm |
| Width | 6.3 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 4.5 mm |
| RoHS | Compliant |
| Current Rating | 5.9 A |
| DC Resistance (DCR) | 12 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 1 month ago) |
| Shielding | Shielded |
| Inductance | 1.2 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 5.9 A |
| inductance tolerance | 30 % |
| Series Resistance | 14.4 mΩ |
| Saturation Current | 8.4 A |
| Schedule B | 8504500000 |
| Manufacturer Lifecycle Status | IN PRODUCTION (Last Updated: 1 month ago) |
| Composition(Kit Type) | Wirewound |
| Packaging | Reel |
| Type | Wirewound |
Stock: 722
Distributors
pcbx
pcbxUnit Price$0.78824
Ext.Price$0.78824
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.78824 | $0.78824 |
| 10 | $0.60358 | $6.03580 |
| 25 | $0.60273 | $15.06825 |
| 50 | $0.50935 | $25.46750 |
| 100 | $0.43044 | $43.04400 |
| 300 | $0.36375 | $109.12500 |
| 500 | $0.30740 | $153.70000 |
| 1000 | $0.25978 | $259.78000 |
| 3000 | $0.21953 | $658.59000 |
| 5000 | $0.18552 | $927.60000 |
