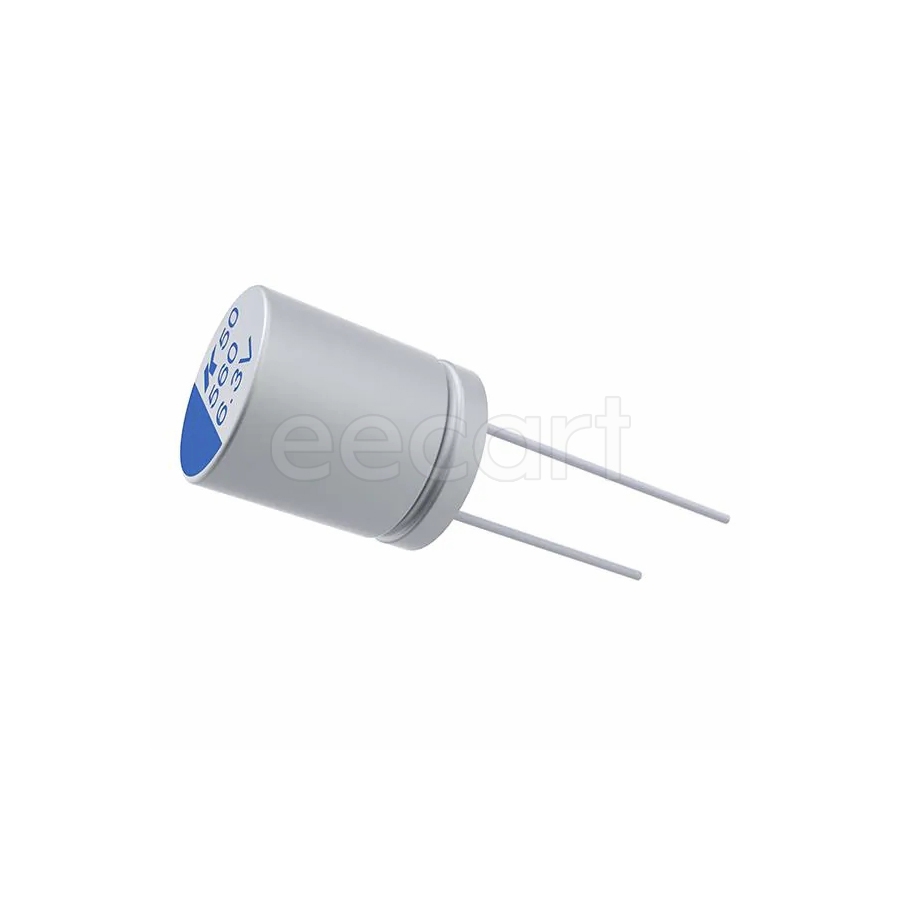

A750KS227M1EAAE015
Manufacturer:
KEMET
Mfr.Part #:
A750KS227M1EAAE015
Datasheet:
Description:
Polymer Capacitors 8.00mmD×12.00mmH Through Hole 220 µF 20 % 25 V
| Parameter | Value |
|---|---|
| Capacitance | 220 µF |
| Voltage Rating (DC) | 25 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 15 mΩ |
| Life (Hours) | 2000 Hours |
| Diameter | 8 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 12 mm |
| Voltage Rating | 25 V |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Ripple Current @ Low Frequency | 221 mA @ 120 Hz |
| Ripple Current @ High Frequency | 4.42 A @ 100 kHz |
| Packaging | Bulk |
| Height - Seated (Max) | 13 mm |
| Lead Pitch | 3.5 mm |
Stock: 1256
Distributors
pcbx
pcbxUnit Price$0.47534
Ext.Price$0.47534
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.47534 | $0.47534 |
| 10 | $0.22741 | $2.27410 |
| 25 | $0.21944 | $5.48600 |
| 50 | $0.21175 | $10.58750 |
| 100 | $0.20433 | $20.43300 |
| 300 | $0.18219 | $54.65700 |
| 500 | $0.16244 | $81.22000 |
| 1000 | $0.14961 | $149.61000 |
| 3000 | $0.13805 | $414.15000 |
| 5000 | $0.12739 | $636.95000 |
| 10000 | $0.12653 | $1265.30000 |
