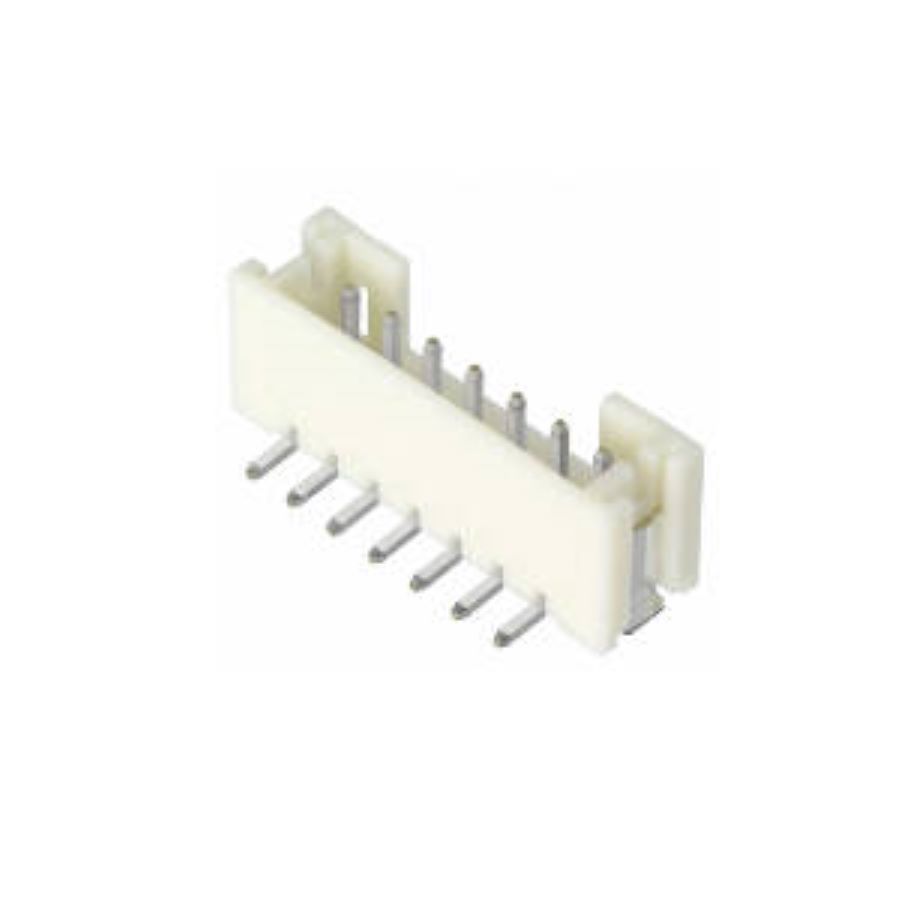

B7B-PH-SM4-TB(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
B7B-PH-SM4-TB(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Male Pin Number of Positions:7 Pitch:2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 100 V |
| Length | 7.112 mm |
| Width | 5.5 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 100 V |
| Number of Pins | 7 |
| Height | 9.4 mm |
| Packaging | Reel |
| Voltage Rating | 100 V |
| Depth | 5 mm |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2 mm |
| Current Rating | 2 A |
| Max Current Rating | 2 A |
| Working Voltage | 100 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | White |
| Gender | Male |
| Number of Contacts | 7 |
| Number of Poles | 7 |
| Connector Type | Male Pin |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Fastening Type | Detent |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 100 V |
| Housing Color | Beige |
| Contact Mating Length | 3.302 mm |
| Mating Post Length | 3.3 mm |
Stock: 900
Distributors
pcbx
pcbxUnit Price$0.39955
Ext.Price$0.39955
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.39955 | $0.39955 |
| 10 | $0.31478 | $3.14780 |
| 25 | $0.28514 | $7.12850 |
| 50 | $0.25829 | $12.91450 |
| 100 | $0.23396 | $23.39600 |
| 300 | $0.22380 | $67.14000 |
| 500 | $0.21408 | $107.04000 |
| 1000 | $0.20186 | $201.86000 |
