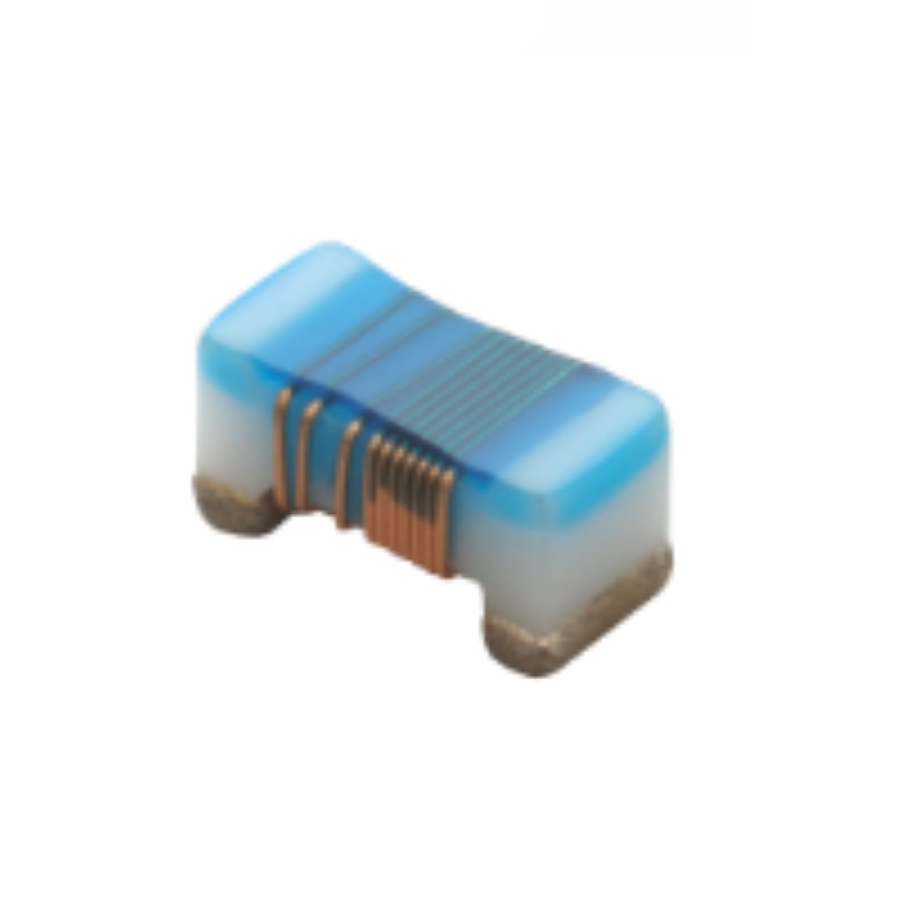

0603CS-56NXJLU
Manufacturer:
Coilcraft
Mfr.Part #:
0603CS-56NXJLU
Datasheet:
Description:
Fixed Inductors 0603(1608 Metric) SMD/SMT 56 nH 5 % 600 mA 310 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 5 % |
| Height - Seated (Max) | 1.02 mm |
| Length | 1.8 mm |
| Width | 1.12 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Height | 1.02 mm |
| Packaging | Reel |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 1.9 GHz |
| Type | Wirewound |
| Q Factor | 26 |
| Current Rating | 600 mA |
| DC Resistance (DCR) | 310 mΩ |
| Test Frequency | 200 MHz |
| Lifecycle Status | Production (Last Updated: 7 months ago) |
| Shielding | Unshielded |
| Inductance | 56 nH |
| Core Material | Ceramic |
| inductance tolerance | 5 % |
| Max DC Current | 600 mA |
Stock: 58
Distributors
pcbx
pcbxUnit Price$0.41645
Ext.Price$0.41645
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.41645 | $0.41645 |
| 10 | $0.41509 | $4.15090 |
| 25 | $0.41562 | $10.39050 |
| 50 | $0.41615 | $20.80750 |
| 100 | $0.41669 | $41.66900 |
| 300 | $0.39422 | $118.26600 |
| 500 | $0.37297 | $186.48500 |
