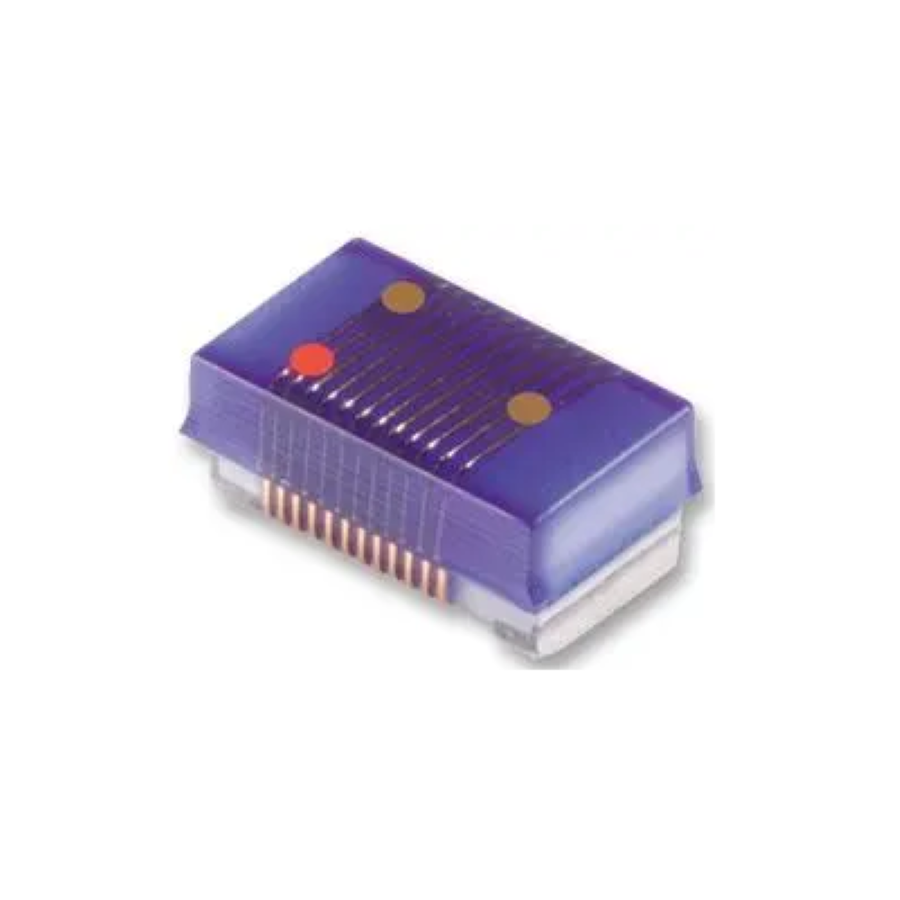

0603HP-R22XJLW
Manufacturer:
Coilcraft
Mfr.Part #:
0603HP-R22XJLW
Datasheet:
Description:
Fixed Inductors 0603(1608 Metric) SMD/SMT 220 nH 5 % 280 mA 2 Ω
| Parameter | Value |
|---|---|
| Tolerance | 5 % |
| Height - Seated (Max) | 0.94 mm |
| Length | 1.75 mm |
| Width | 1.09 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Height | 940 µm |
| Packaging | Reel |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| Self Resonant Frequency | 1.1 GHz |
| Type | Wirewound |
| Q Factor | 41 |
| DC Resistance (DCR) | 2 Ω |
| Test Frequency | 100 MHz |
| Lifecycle Status | Production (Last Updated: 20 hours ago) |
| Shielding | Unshielded |
| Inductance | 220 nH |
| Core Material | Ceramic |
| Max DC Current | 280 mA |
| Current Rating | 280 mA |
Stock: 1054
Distributors
pcbx
pcbxUnit Price$1.28722
Ext.Price$1.28722
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.28722 | $1.28722 |
| 10 | $1.23217 | $12.32170 |
| 25 | $1.17947 | $29.48675 |
| 50 | $1.12902 | $56.45100 |
| 100 | $0.98334 | $98.33400 |
| 300 | $0.85646 | $256.93800 |
| 500 | $0.74594 | $372.97000 |
| 1000 | $0.73091 | $730.91000 |
