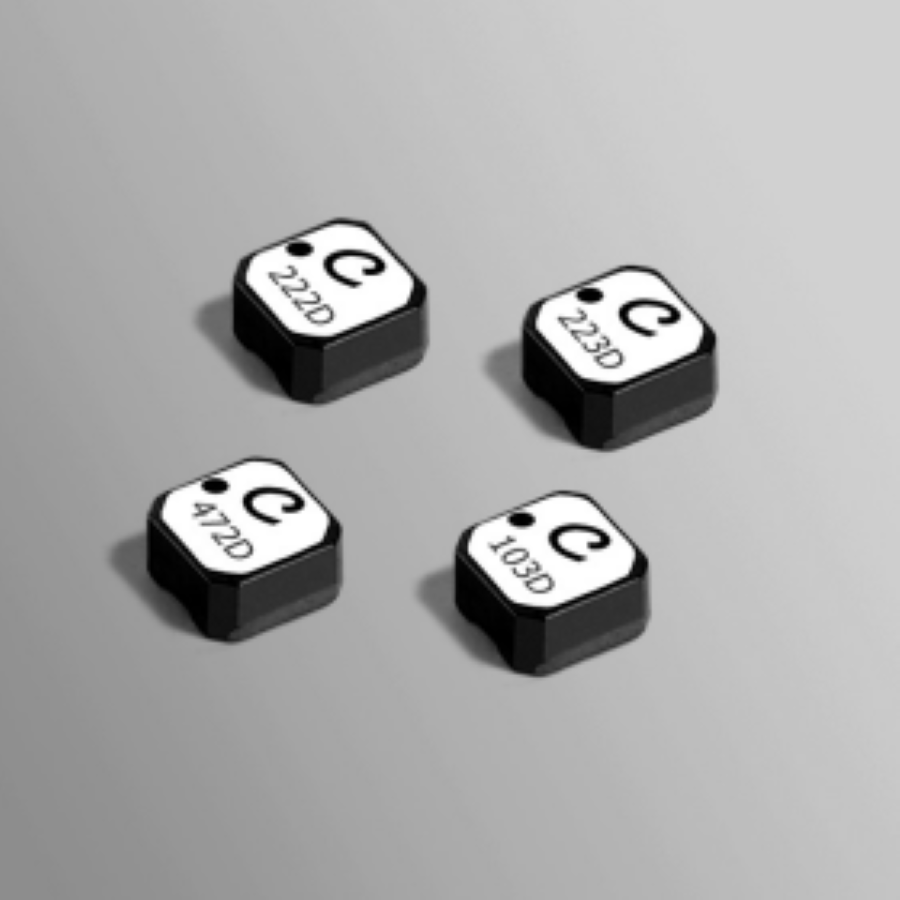

LPS3015-222MRB
Manufacturer:
Coilcraft
Mfr.Part #:
LPS3015-222MRB
Datasheet:
Description:
Fixed Inductors 1212(3030 Metric) SMD/SMT 2.2 µH 20 % 1.4 A 110 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 1.5 mm |
| Length | 3 mm |
| Width | 3 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 1.4 mm |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 40.001177 mg |
| Self Resonant Frequency | 110 MHz |
| Type | Wirewound |
| DC Resistance (DCR) | 110 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 20 hours ago) |
| Shielding | Shielded |
| Ambient Temperature Range High | 125 °C |
| Inductance | 2.2 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1.1 A |
| inductance tolerance | 20 % |
| Max DC Current | 2.1 A |
| Series Resistance | 110 mΩ |
| Saturation Current | 2 A |
| Current Rating | 1.4 A |
Stock: 2946
Distributors
pcbx
pcbxUnit Price$1.23313
Ext.Price$1.23313
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.23313 | $1.23313 |
| 10 | $1.21017 | $12.10170 |
| 25 | $1.18764 | $29.69100 |
| 50 | $1.16552 | $58.27600 |
| 100 | $1.10935 | $110.93500 |
| 300 | $0.86703 | $260.10900 |
| 500 | $0.67763 | $338.81500 |
| 1000 | $0.66534 | $665.34000 |
