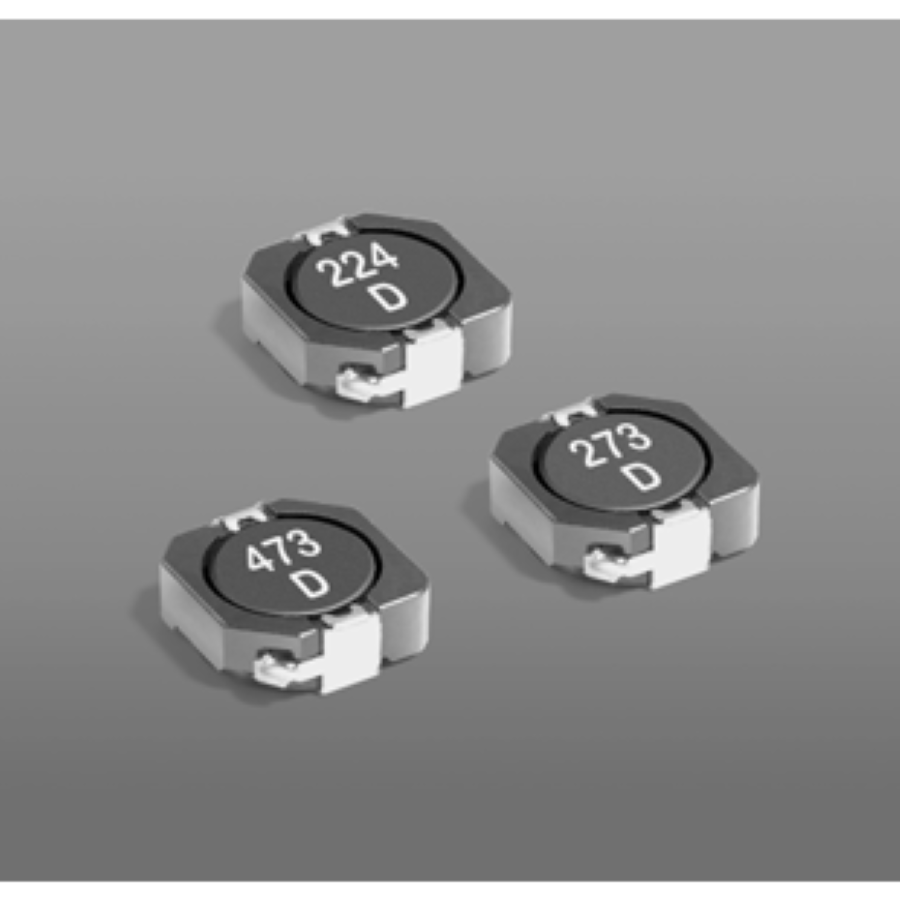

MSS1038-104MLC
Manufacturer:
Coilcraft
Mfr.Part #:
MSS1038-104MLC
Datasheet:
Description:
Fixed Inductors 10.00mmL×10.2mmW×3.80mmH SMD/SMT 100 µH 20 % 1.45 A 304 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 3.8 mm |
| Length | 10.5 mm |
| Width | 10.2 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Height | 4 mm |
| Packaging | Reel |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 6 MHz |
| Type | Wirewound |
| DC Resistance (DCR) | 304 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 20 hours ago) |
| Shielding | Shielded |
| Inductance | 100 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1.45 A |
| inductance tolerance | 20 % |
| Max DC Current | 1.45 A |
| Saturation Current | 1.02 A |
| Current Rating | 1.45 A |
Stock: 290
Distributors
pcbx
pcbxUnit Price$2.72180
Ext.Price$2.72180
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.72180 | $2.72180 |
| 10 | $2.60822 | $26.08220 |
| 25 | $2.49465 | $62.36625 |
| 50 | $2.38107 | $119.05350 |
| 100 | $2.29111 | $229.11100 |
| 300 | $1.79983 | $539.94900 |
| 500 | $1.41389 | $706.94500 |
| 1000 | $1.11072 | $1110.72000 |
