MSS1048-152NLC
Manufacturer:
Coilcraft
Mfr.Part #:
MSS1048-152NLC
Datasheet:
Description:

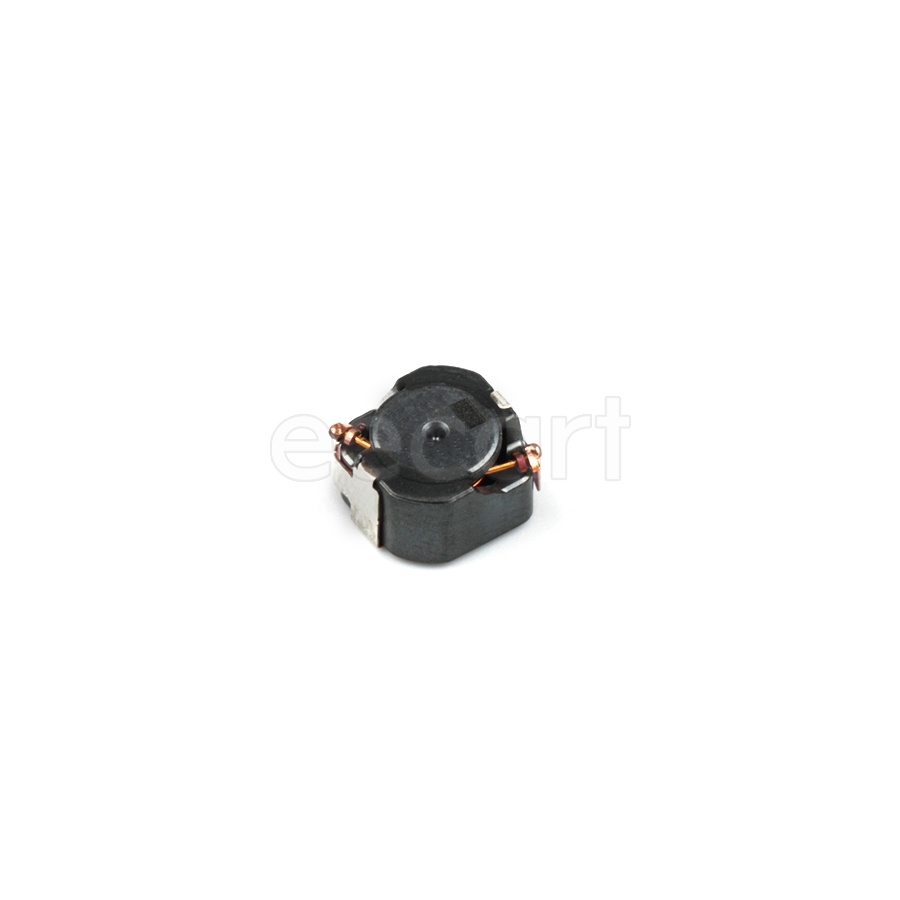

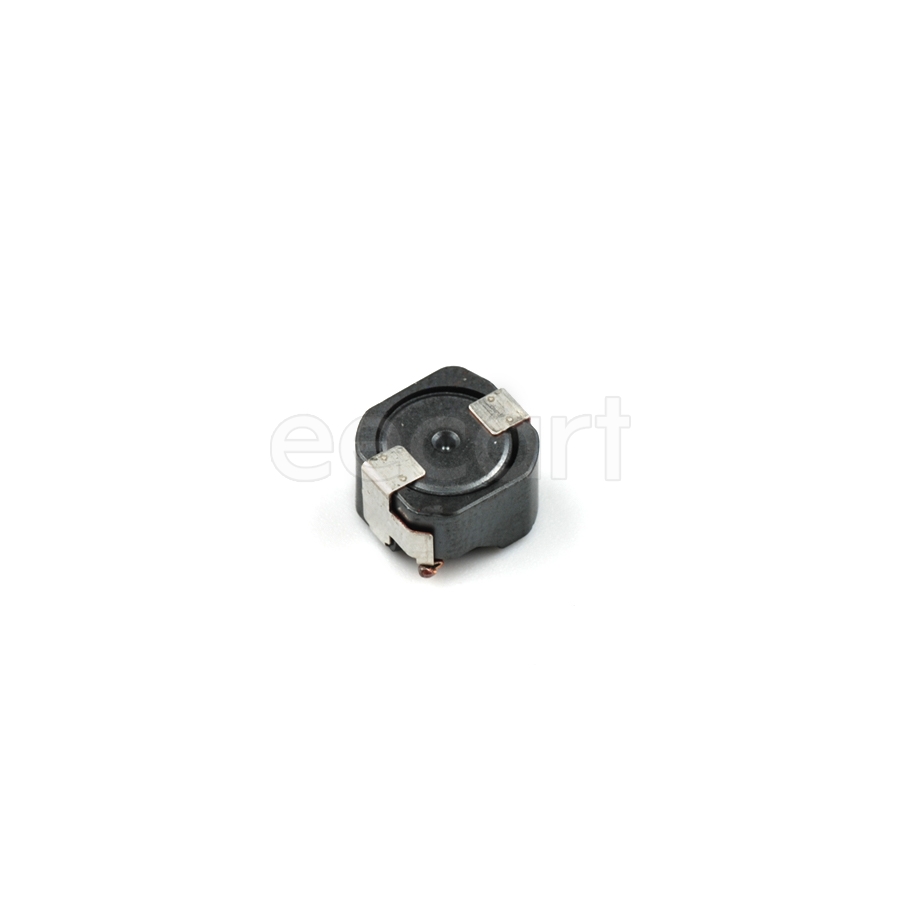

Fixed Inductors 10.20mmL×10.00mmW×4.80mmH SMD/SMT 1.5 µH 30 % 10.8 A 5.1 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 30 % |
| Height - Seated (Max) | 4.8 mm |
| Length | 10.5 mm |
| Width | 10.3 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 5.1 mm |
| Packaging | Reel |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 90 MHz |
| Type | Wirewound |
| DC Resistance (DCR) | 5.1 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 20 hours ago) |
| Shielding | Shielded |
| Inductance | 1.5 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 10.8 A |
| inductance tolerance | 30 % |
| Max DC Current | 10.8 A |
| Saturation Current | 5.44 A |
| Current Rating | 10.8 A |
Stock: 280
Distributors
pcbx
pcbxUnit Price$3.29645
Ext.Price$3.29645
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.29645 | $3.29645 |
| 10 | $2.85296 | $28.52960 |
| 25 | $2.63122 | $65.78050 |
| 50 | $2.40947 | $120.47350 |
| 100 | $2.21050 | $221.05000 |
