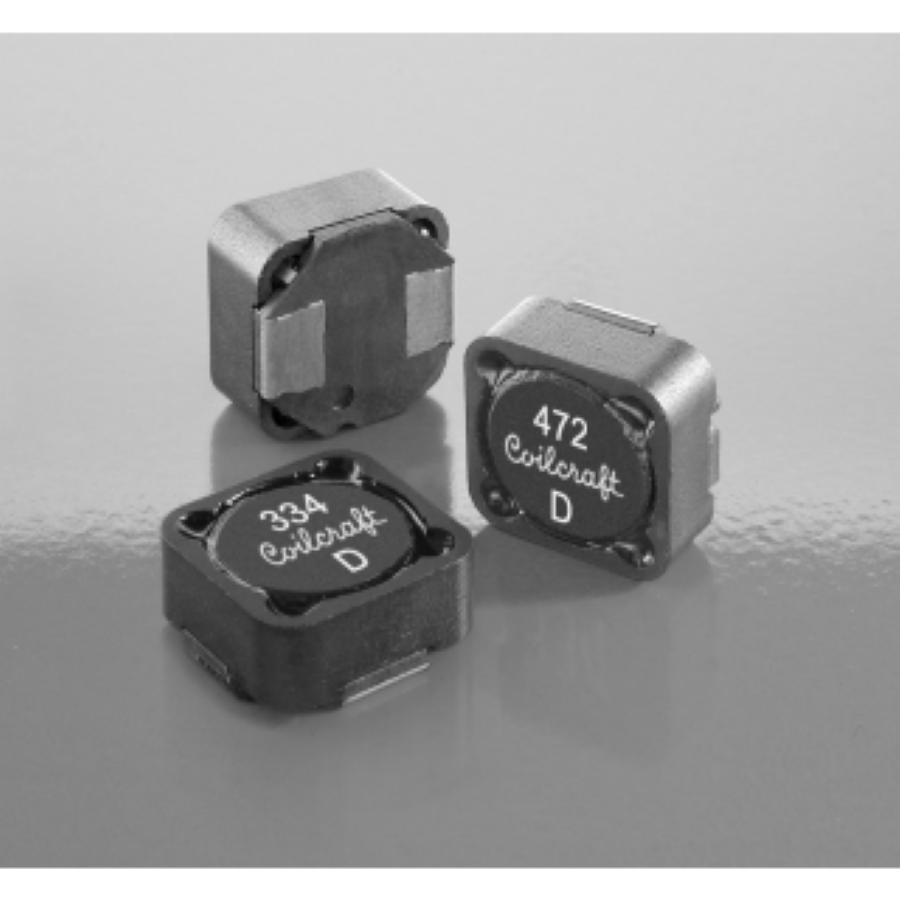

MSS1260-682MLD
Manufacturer:
Coilcraft
Mfr.Part #:
MSS1260-682MLD
Datasheet:
Description:
Fixed Inductors 4747(1212 Metric) SMD/SMT 6.8 µH 20 % 5.9 A 18.5 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 6 mm |
| Length | 12.3 mm |
| Width | 12.3 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 6.2 mm |
| Packaging | Reel |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 27 MHz |
| Type | Fixed Inductors |
| DC Resistance (DCR) | 18.5 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 20 hours ago) |
| Shielding | Shielded |
| Inductance | 6.8 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 5.9 A |
| inductance tolerance | 20 % |
| Max DC Current | 5.9 A |
| Saturation Current | 7.4 A |
| Current Rating | 5.9 A |
Stock: 104
Distributors
pcbx
pcbxUnit Price$3.38569
Ext.Price$3.38569
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.38569 | $3.38569 |
| 10 | $3.16529 | $31.65290 |
| 25 | $3.05241 | $76.31025 |
| 50 | $2.94355 | $147.17750 |
| 100 | $2.75015 | $275.01500 |
| 300 | $1.92767 | $578.30100 |
| 500 | $1.35117 | $675.58500 |
