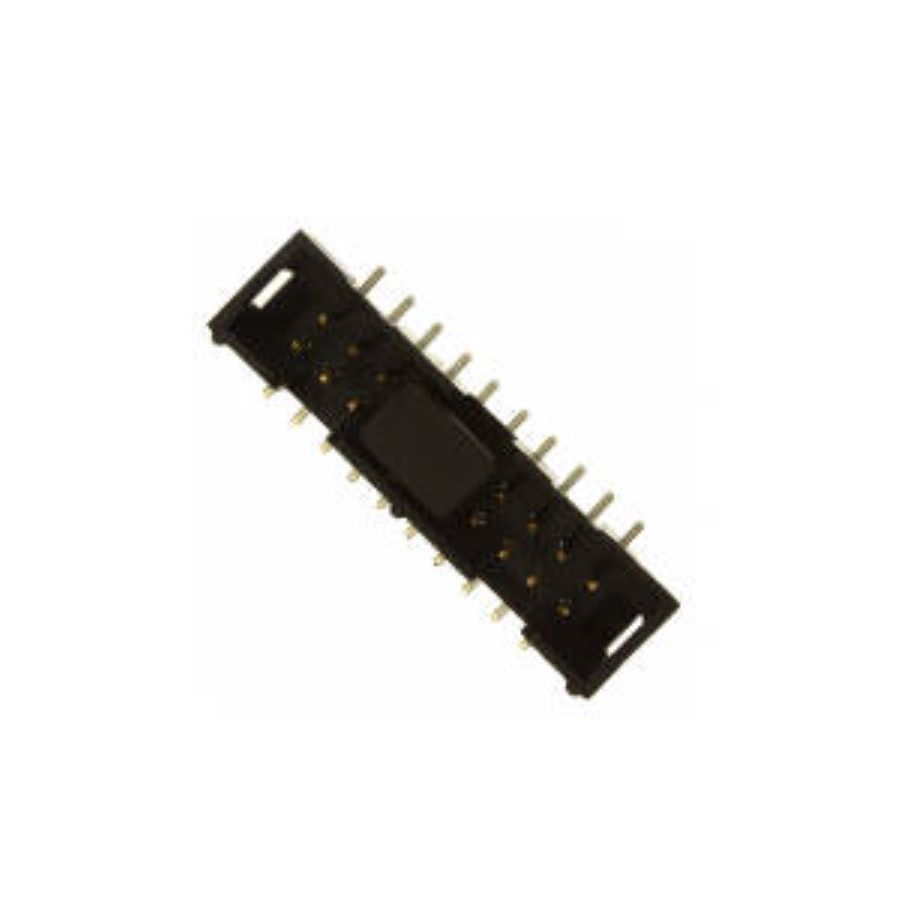

D2520-6V0C-AR-WE
Manufacturer:
3M
Mfr.Part #:
D2520-6V0C-AR-WE
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Male Pin Number of Positions:20 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 32.72 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Depth | 8.59 mm |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 2 A |
| Max Current Rating | 1.75 A |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 20 |
| Connector Type | Male Pin |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Housing Color | Black |
| Contact Mating Length | 6.1722 mm |
| Contact Gender | Male |
| Mating Post Length | 6.17 mm |
| Termination Post Length | 2.84 mm |
Stock: 1504
Distributors
pcbx
pcbxUnit Price$1.95196
Ext.Price$1.95196
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.95196 | $1.95196 |
| 10 | $1.66061 | $16.60610 |
| 25 | $1.57301 | $39.32525 |
| 50 | $1.49003 | $74.50150 |
| 100 | $1.41144 | $141.14400 |
