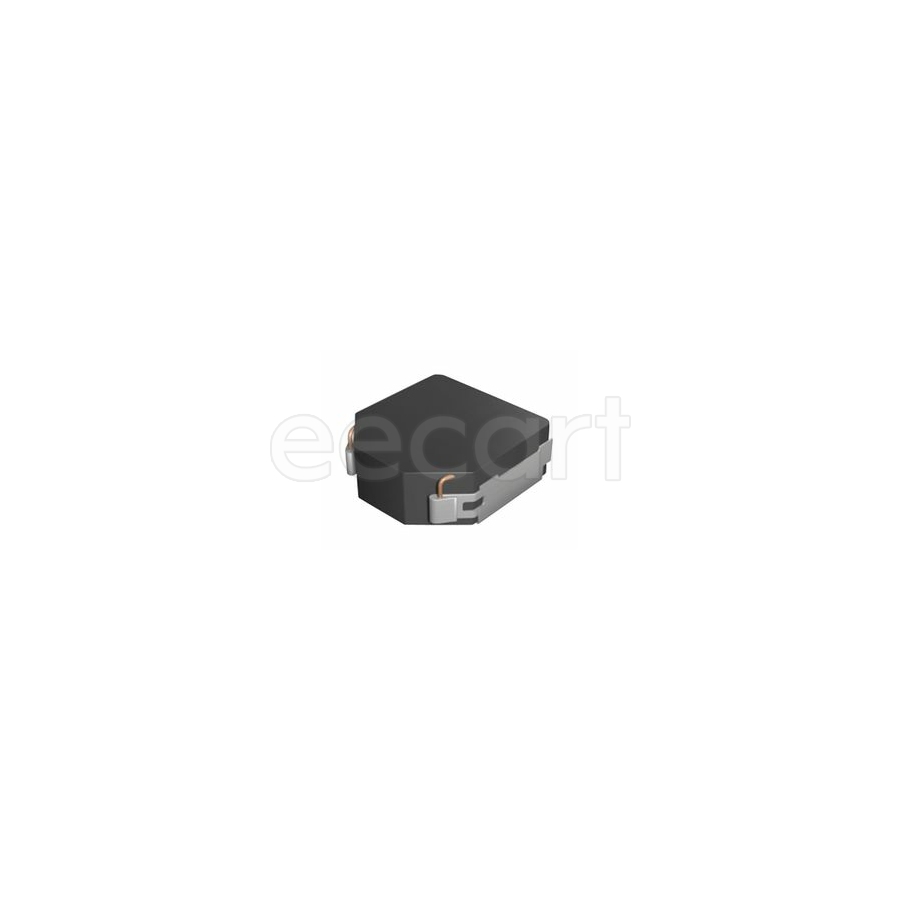

FDSD0630-H-4R7M=P3
Manufacturer:
Murata
Mfr.Part #:
FDSD0630-H-4R7M=P3
Datasheet:
Description:
Fixed Inductors SMD,7.00mm×6.60mm SMD/SMT 4.7 µH 20 % 4.7 A 40 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 3 mm |
| Length | 7.0104 mm |
| Width | 6.604 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Composition(Kit Type) | Wirewound |
| Height | 3 mm |
| Packaging | Reel |
| Depth | 6.6 mm |
| RoHS | Compliant |
| Current Rating | 4.7 A |
| DC Resistance (DCR) | 40 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 5 days ago) |
| Shielding | Shielded |
| Inductance | 4.7 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 4.7 A |
| inductance tolerance | 20 % |
| Max DC Current | 4.7 A |
| Series Resistance | 40 mΩ |
| Saturation Current | 7.6 A |
| Schedule B | 8504500000 |
| Manufacturer Lifecycle Status | IN PRODUCTION (Last Updated: 5 days ago) |
| Type | Wirewound |
Stock: 61
Distributors
pcbx
pcbxUnit Price$0.51980
Ext.Price$0.51980
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.51980 | $0.51980 |
| 10 | $0.44029 | $4.40290 |
| 25 | $0.40010 | $10.00250 |
| 50 | $0.35334 | $17.66700 |
| 100 | $0.31205 | $31.20500 |
| 300 | $0.29626 | $88.87800 |
| 500 | $0.28127 | $140.63500 |
| 1000 | $0.23853 | $238.53000 |
| 3000 | $0.22714 | $681.42000 |
| 5000 | $0.21630 | $1081.50000 |
