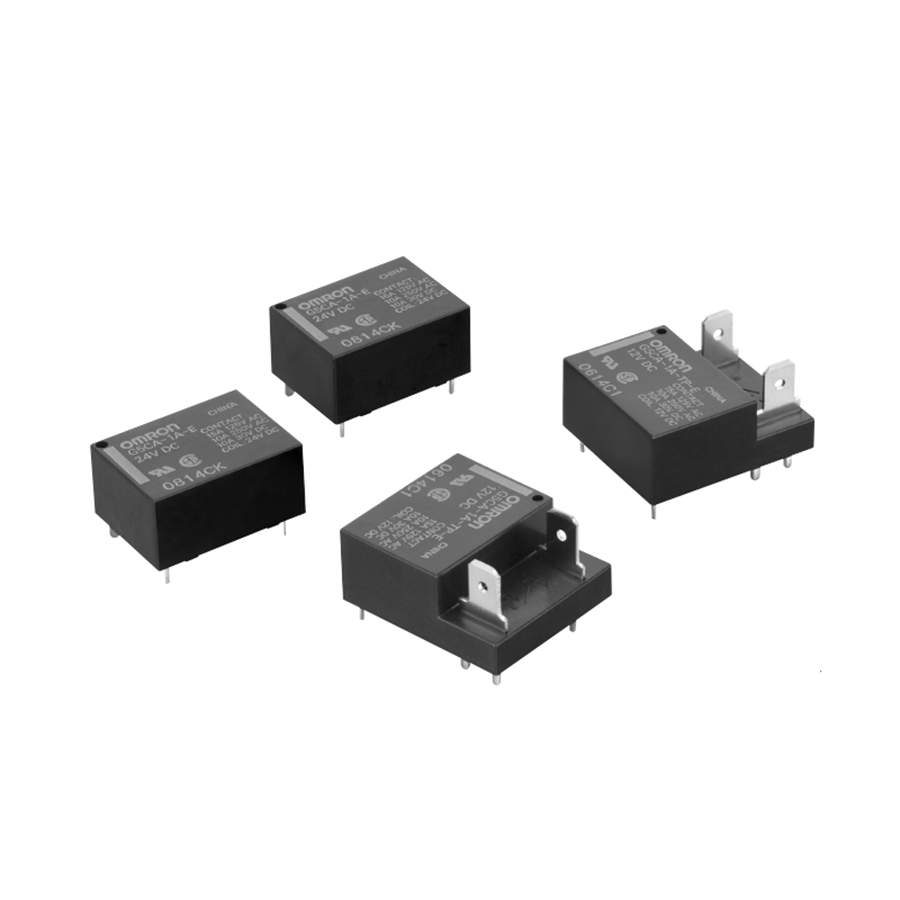

G5CA-1A-E-DC5
Manufacturer:
Omron
Mfr.Part #:
G5CA-1A-E-DC5
Datasheet:
Description:
Power Relays Through Hole 40 mA 125 Ω 5 V General Purpose
| Parameter | Value |
|---|---|
| Length | 22 mm |
| Width | 16 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 4 |
| Height | 11 mm |
| Packaging | Bulk |
| Depth | 16 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Weight | 8 g |
| Contact Material(Contact Finish) | Silver |
| Current Rating | 15 A |
| Max Current Rating | 15 A |
| Max Voltage Rating (DC) | 125 V |
| Approvals | CSA, UL |
| Number of Contacts | 1 |
| Ambient Temperature Range High | 70 °C |
| Throw Configuration | SPST |
| Max Voltage Rating (AC) | 250 V |
| Coil Voltage (DC) | 5 V |
| Coil Current | 40 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 125 Ω |
| Relay Type | General Purpose |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Contact Current Rating | 15 A |
| switching current | 15 A |
| power consumption | 150 mW |
| Termination Style | PC Pin |
| Switching Voltage | 250 V, 125 V |
| Coil Power | 200 mW |
| Must Operate Voltage | 3.75 V |
| Must Release Voltage | 500 mV |
Stock: 219
Distributors
pcbx
pcbxUnit Price$2.81016
Ext.Price$2.81016
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.81016 | $2.81016 |
| 10 | $2.52204 | $25.22040 |
| 25 | $2.27155 | $56.78875 |
| 50 | $2.25267 | $112.63350 |
| 100 | $2.23393 | $223.39300 |
