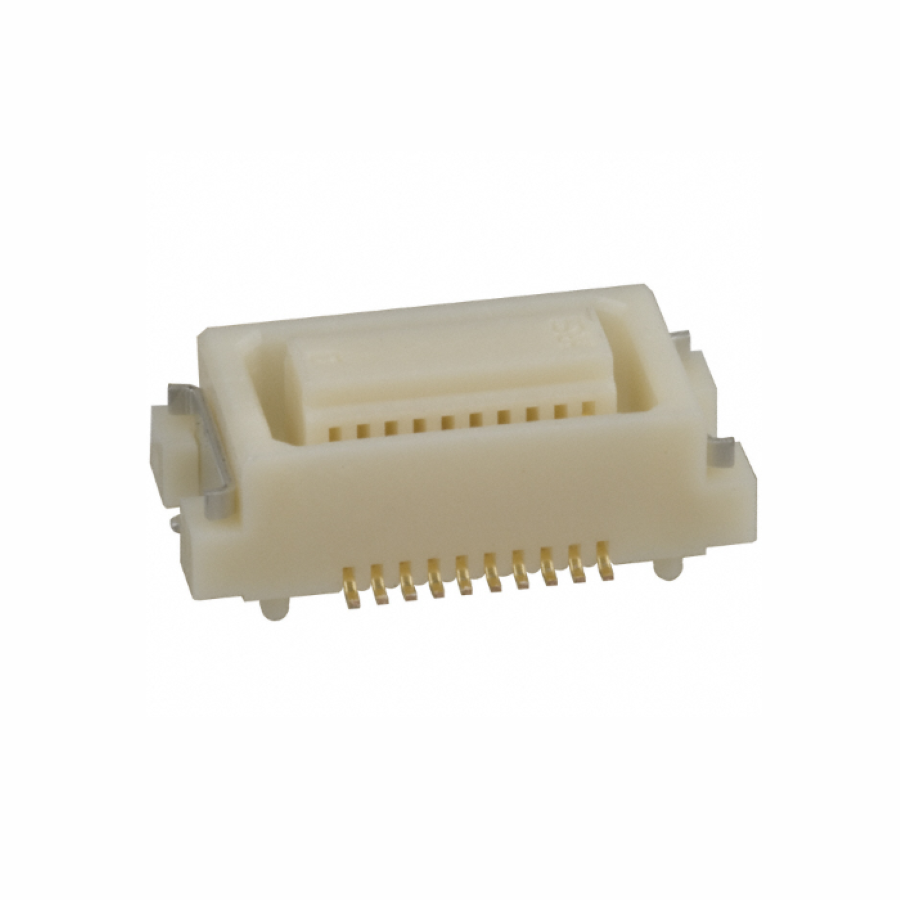

DF17(3.0)-20DS-0.5V(57)
Manufacturer:
Hirose Electric
Mfr.Part #:
DF17(3.0)-20DS-0.5V(57)
Datasheet:
Description:
Board to Board Connectors SMD/SMT Receptacle Number of Positions:20 Number of Rows:2 Pitch:500 µm
| Parameter | Value |
|---|---|
| Length | 10 mm |
| Width | 5.7 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -35 °C |
| Height | 3.5 mm |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 4.7 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 500 µm |
| Manufacturer Package Identifier | DF17(3.0)-20DS-0.5V(57) |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper, Gold |
| Pitch | 500 µm |
| Current Rating | 300 mA |
| Max Current Rating | 300 mA |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Gender | Receptacle |
| Number of Contacts | 20 |
| Connector Type | Receptacle |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Housing Material | Polyamide |
| Contact Resistance | 60 mΩ |
| Max Voltage Rating (AC) | 50 V |
| Housing Color | White |
| Stack Height | 3 mm |
| Mated Stacking Heights | 7 mm |
| Contact Voltage Rating (AC) | 50 V |
| Contact Pitch | 0.5 mm |
| Mounting Angle | Straight |
Stock: 79
Distributors
pcbx
pcbxUnit Price$1.00113
Ext.Price$1.00113
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.00113 | $1.00113 |
| 10 | $0.87630 | $8.76300 |
| 25 | $0.83869 | $20.96725 |
| 50 | $0.81987 | $40.99350 |
| 100 | $0.78226 | $78.22600 |
| 300 | $0.71340 | $214.02000 |
| 500 | $0.65060 | $325.30000 |
| 1000 | $0.58306 | $583.06000 |
