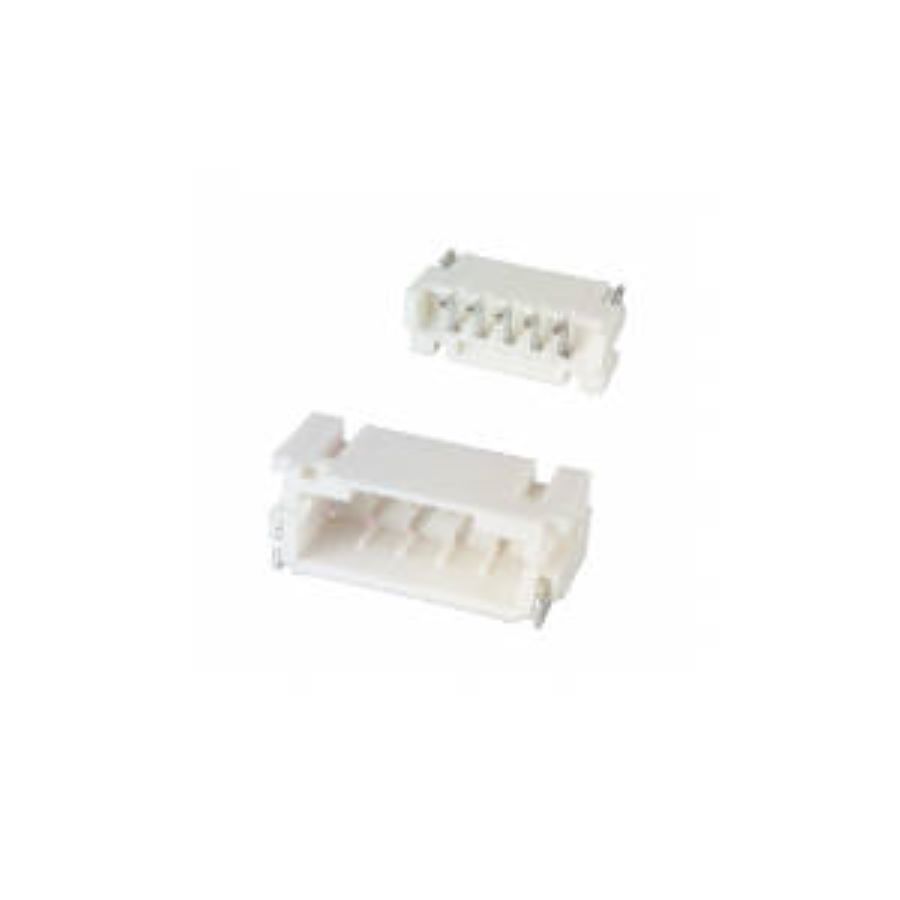

S5B-PH-SM4-TB(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
S5B-PH-SM4-TB(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Male Pin Number of Positions:5 Pitch:2 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 100 V |
| Length | 6.096 mm |
| Width | 5 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 100 V |
| Number of Pins | 5 |
| Height | 9.4 mm |
| Packaging | Reel |
| Depth | 8.6 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Weight | 28.349523 g |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2 mm |
| Current Rating | 2 A |
| Max Current Rating | 2 A |
| Working Voltage | 100 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | White |
| Gender | Male |
| Number of Contacts | 5 |
| Number of Poles | 5 |
| Connector Type | Male Pin |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Fastening Type | Detent |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 100 V |
| Housing Color | Beige |
| Contact Mating Length | 3.302 mm |
| Schedule B | 8536694040 |
Stock: 1208
Distributors
pcbx
pcbxUnit Price$0.32429
Ext.Price$0.32429
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.32429 | $0.32429 |
| 10 | $0.28982 | $2.89820 |
| 50 | $0.25901 | $12.95050 |
| 100 | $0.23693 | $23.69300 |
| 500 | $0.21674 | $108.37000 |
| 1000 | $0.19827 | $198.27000 |
| 3000 | $0.18624 | $558.72000 |
| 5000 | $0.17493 | $874.65000 |
