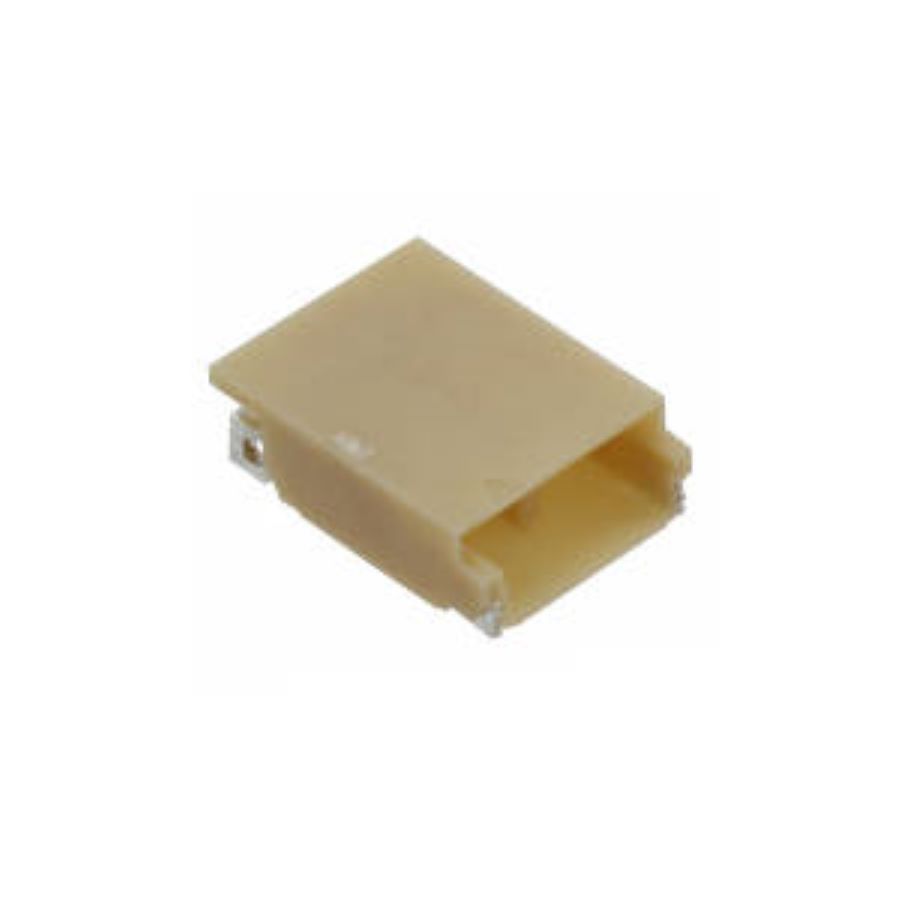

SM02B-BHSS-1-TB(LF)(SN)
Manufacturer:
JST
Mfr.Part #:
SM02B-BHSS-1-TB(LF)(SN)
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:2 Pitch:3.5 mm
| Parameter | Value |
|---|---|
| Length | 7.5 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 2 |
| Height | 3.2 mm |
| Packaging | Reel |
| Voltage Rating | 1400 V (1.4 kV) |
| Depth | 10.5 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Manufacturer Package Identifier | SM02B-BHSS-1-TB(LF)(SN) |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3.5 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Orientation | Right Angle |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 2 |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polyphthalamide |
| Fastening Type | Detent |
| Contact Resistance | 20 mΩ |
| Housing Color | Natural |
| Schedule B | 8535908040 |
Stock: 6958
Distributors
pcbx
pcbxUnit Price$0.68223
Ext.Price$0.68223
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.68223 | $0.68223 |
| 10 | $0.57707 | $5.77070 |
| 25 | $0.54672 | $13.66800 |
| 50 | $0.51797 | $25.89850 |
| 100 | $0.49073 | $49.07300 |
| 300 | $0.46347 | $139.04100 |
| 500 | $0.43773 | $218.86500 |
| 1000 | $0.35394 | $353.94000 |
