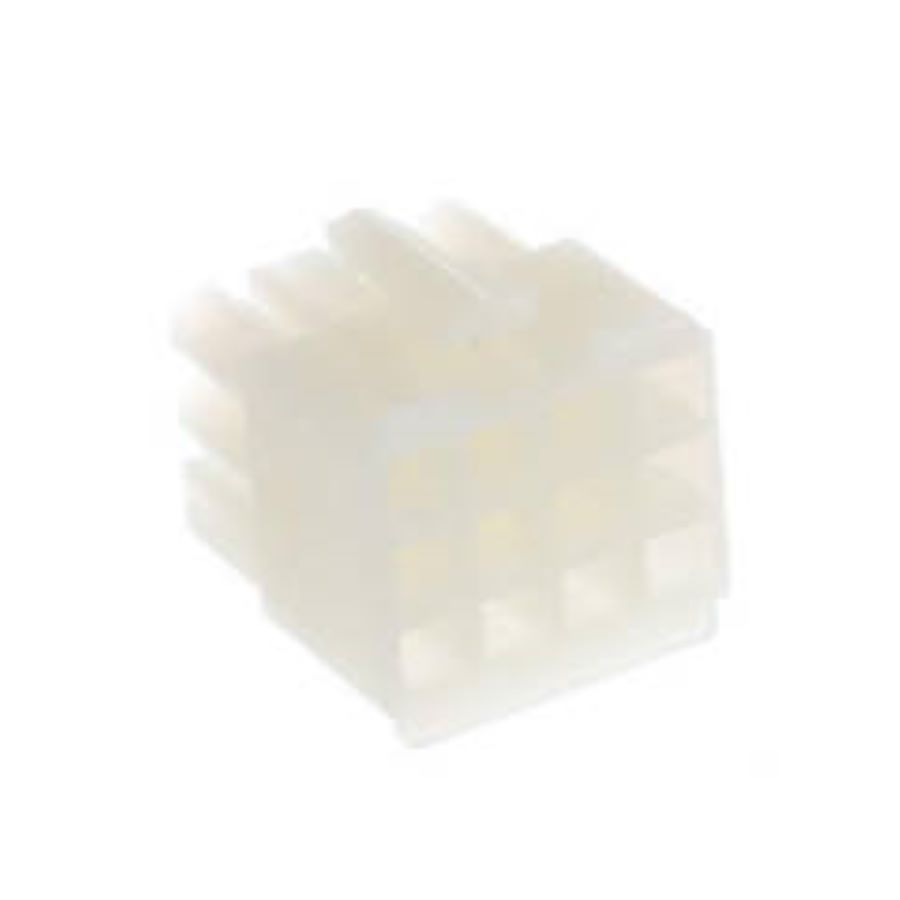

0019091129
Manufacturer:
Molex
Mfr.Part #:
0019091129
Datasheet:
Description:
Headers and Wire Housings Through Hole Plug, Socket Number of Positions:12 Pitch:6.7 mm
| Parameter | Value |
|---|---|
| Length | 22.9 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 21.082 mm |
| Packaging | Bulk |
| Depth | 29.9 mm |
| Halogen Free | Low Halogen |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Pitch | 6.7 mm |
| Current Rating | 9 A |
| Max Current Rating | 12 A |
| Flammability Rating | UL94V-2 |
| Approvals | CSA, TUV, UL |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Receptacle |
| Number of Contacts | 12 |
| Connector Type | Plug, Socket |
| Number of Positions | 12 |
| Number of Rows | 3 |
| Housing Material | Nylon |
| Contact Current Rating | 9 A |
| glow wire compliant | Non-compliant |
| Contact Gender | Male |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
