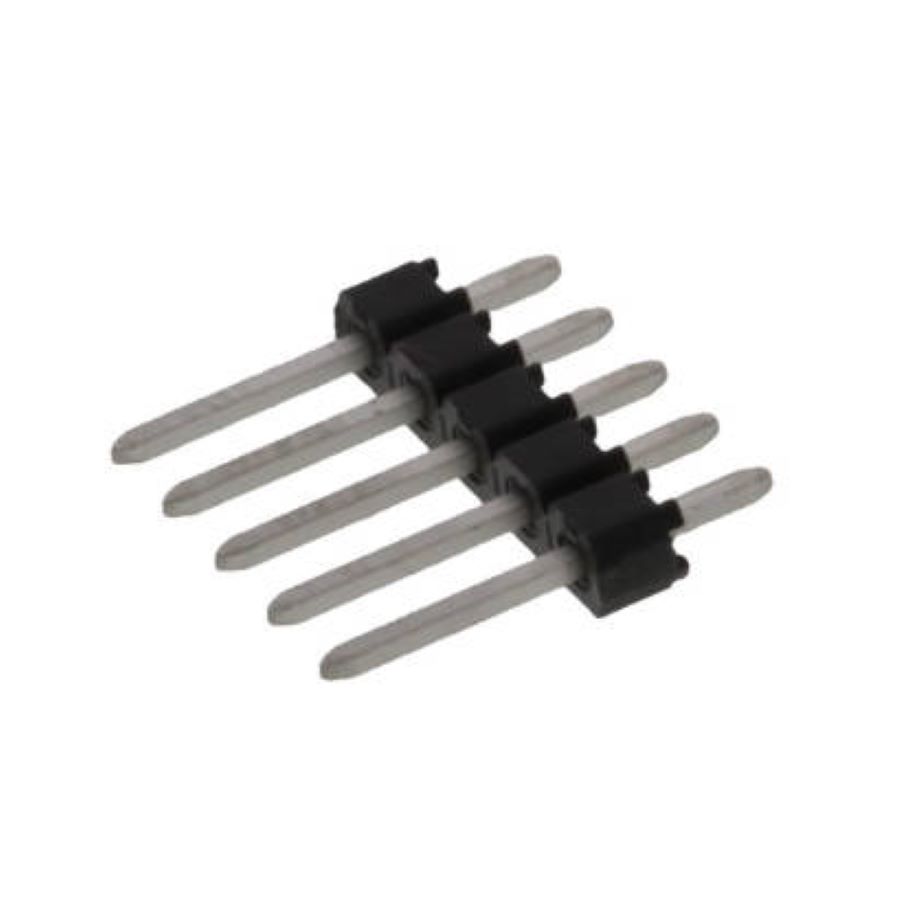

0022284030
Manufacturer:
Molex
Mfr.Part #:
0022284030
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:3 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 10.16 mm |
| Termination | Solder |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
| Height | 8.88 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 5.8 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Manufacturer Package Identifier | 22-28-4030 |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 4 A |
| Max Current Rating | 4 A |
| Max Voltage Rating (DC) | 250.25 kV |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 3 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 3 |
| Connector Type | Male Pin |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | White |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Mating Length | 6.096 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.18 mm |
Stock: 8178
Distributors
pcbx
pcbxUnit Price$0.25042
Ext.Price$0.25042
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.25042 | $0.25042 |
| 10 | $0.21335 | $2.13350 |
| 25 | $0.20212 | $5.05300 |
| 50 | $0.19148 | $9.57400 |
| 100 | $0.18139 | $18.13900 |
| 300 | $0.17137 | $51.41100 |
| 500 | $0.16191 | $80.95500 |
| 1000 | $0.15417 | $154.17000 |
| 3000 | $0.14566 | $436.98000 |
| 5000 | $0.13761 | $688.05000 |
| 10000 | $0.13105 | $1310.50000 |
