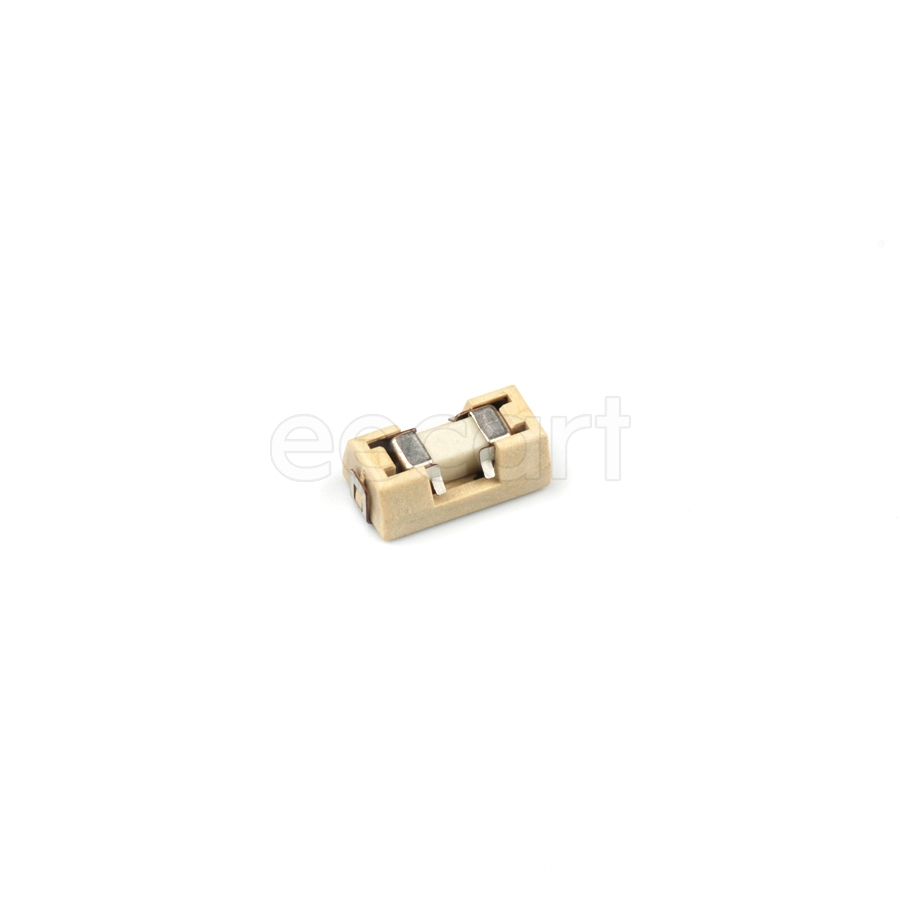

0154003.DR
Manufacturer:
Littelfuse
Mfr.Part #:
0154003.DR
Datasheet:
Description:
Fuses SMD/SMT Board Mount (Cartridge Style Excluded) 3 A Voltage Rating (AC):125 V Voltage Rating (DC):125 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 9.73 mm |
| Width | 5.03 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 2 |
| Resistance | 22.7 mΩ |
| Height | 3.81 mm |
| Packaging | Reel |
| Voltage Rating | 125 V |
| Depth | 5.03 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Current Rating | 3 A |
| Working Voltage | 125 V |
| Flammability Rating | UL94 V-0 |
| Approvals | PSE, UL |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | White |
| Power Dissipation | 125 W |
| Body Material | Thermoplastic |
| Terminal Material | Copper |
| Fuse Current | 3 A |
| Size | 0.383" L x 0.198" W x 0.150" H (9.73 mm x 5.03 mm x 3.81 mm) |
| Type | Board Mount (Cartridge Style Excluded) |
Stock: 2365
Distributors
pcbx
pcbxUnit Price$1.36234
Ext.Price$1.36234
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.36234 | $1.36234 |
| 10 | $1.12800 | $11.28000 |
| 25 | $1.03237 | $25.80925 |
| 50 | $0.94485 | $47.24250 |
| 100 | $0.86476 | $86.47600 |
| 300 | $0.80789 | $242.36700 |
| 500 | $0.75476 | $377.38000 |
| 1000 | $0.72420 | $724.20000 |
