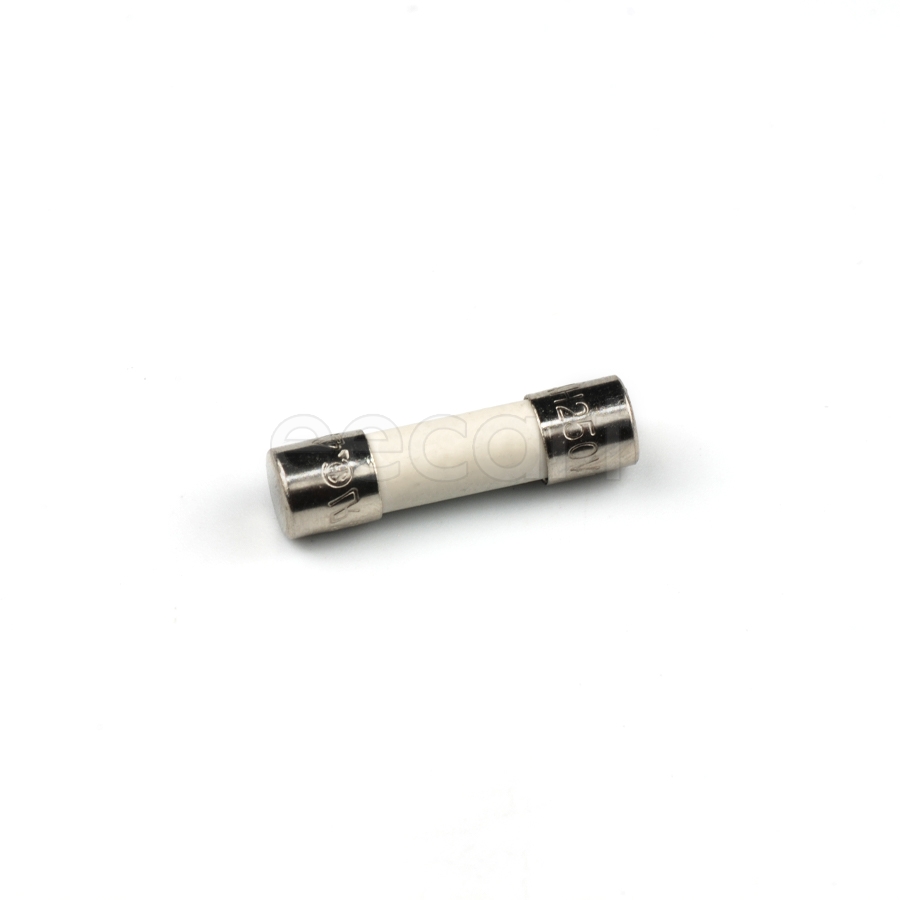

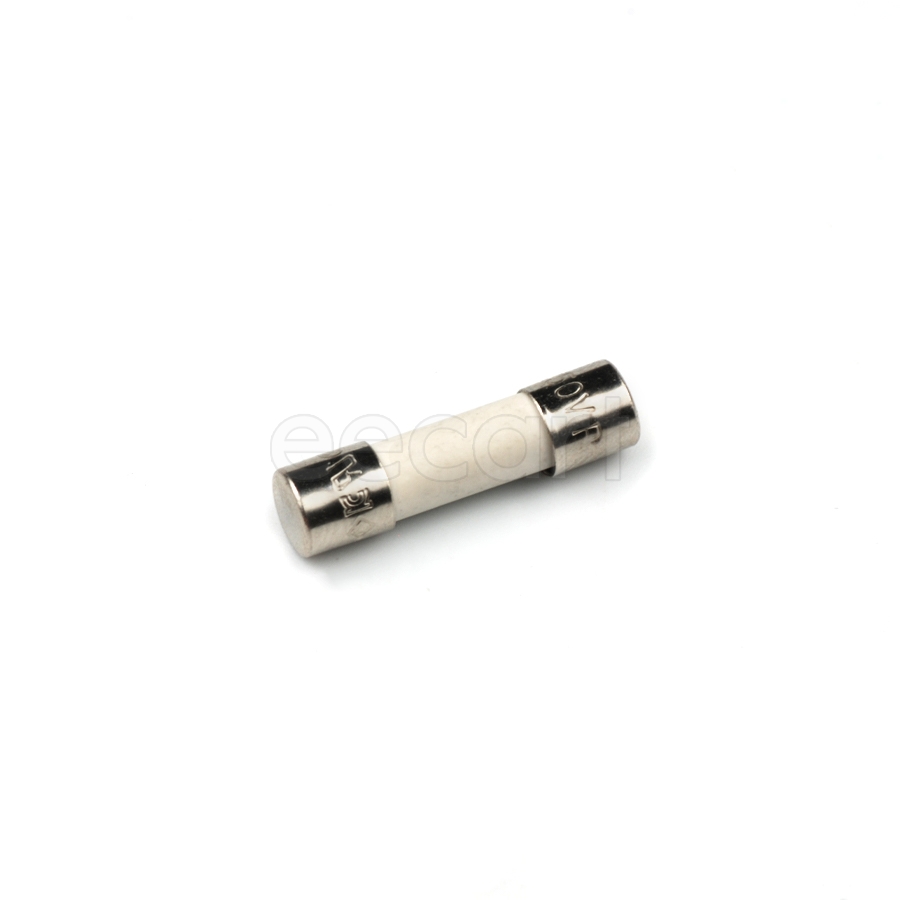

0216008.MXP
Manufacturer:
Littelfuse
Mfr.Part #:
0216008.MXP
Datasheet:
Description:
Fuses Holder / Clip Axial Lead and Cartridge Fuse Cylindrical 8 A Voltage Rating (AC):250 V Voltage Rating (DC):250 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 20 mm |
| Termination | Clip |
| Diameter | 5 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 2 |
| Resistance | 12 mΩ |
| Composition(Kit Type) | Ceramic |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Nickel |
| Contact Material(Contact Finish) | Brass |
| Type | Axial Lead and Cartridge Fuse |
| Current Rating | 8 A |
| Approvals | CE, CSA, KC, PSE, SEMKO, TUV, UR |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Power Dissipation | 4 W |
| Body Material | Ceramic |
| Housing Material | Ceramic |
| Outside Diameter | 5.2 mm |
| Fuse Current | 8 A |
| Size | 5 mm x 20 mm |
| Body Style | Cylindrical |
Stock: 266
Distributors
pcbx
pcbxUnit Price$0.13373
Ext.Price$0.13373
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.13373 | $0.13373 |
| 10 | $0.11959 | $1.19590 |
| 50 | $0.10694 | $5.34700 |
| 100 | $0.09500 | $9.50000 |
| 500 | $0.08439 | $42.19500 |
| 1000 | $0.08041 | $80.41000 |
| 3000 | $0.07662 | $229.86000 |
| 5000 | $0.07301 | $365.05000 |
