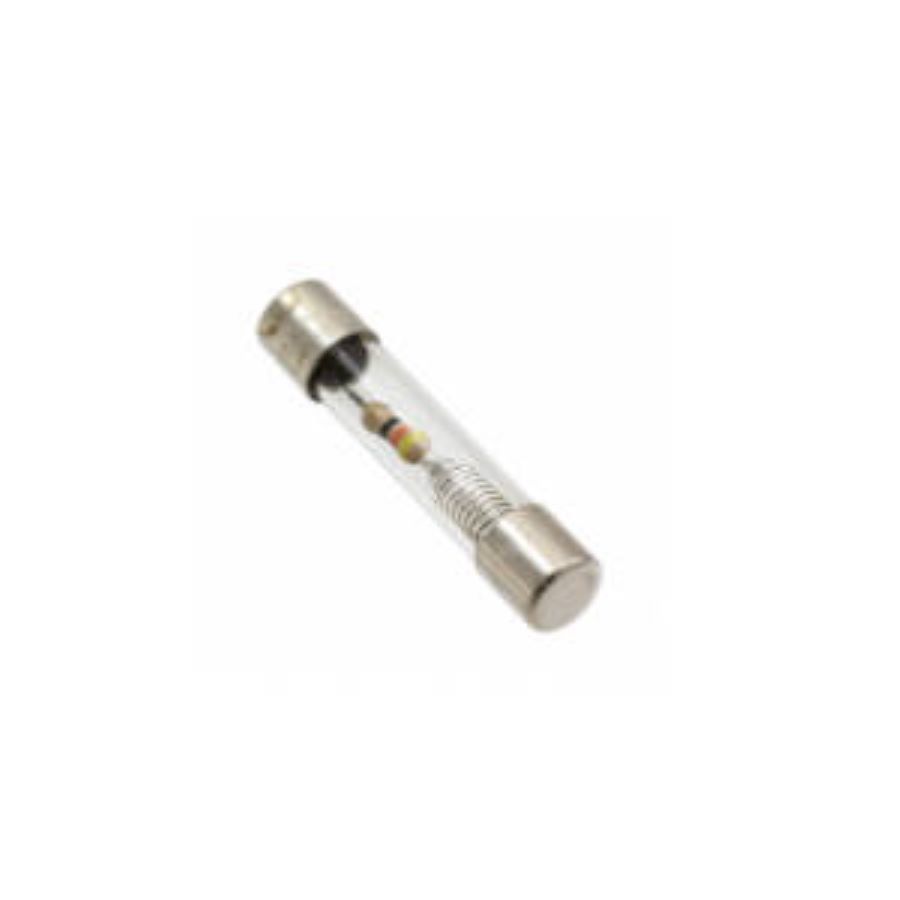

0313.250MXP
Manufacturer:
Littelfuse
Mfr.Part #:
0313.250MXP
Datasheet:
Description:
Fuses Clip, Holder Cylindrical 250 mA Voltage Rating (AC):250 V Voltage Rating (DC):250 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 31.75 mm |
| Termination | Clip |
| Diameter | 6.35 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 2 |
| Resistance | 4.27 Ω |
| Radiation Hardening | No |
| REACH SVHC | Unknown |
| Contact Plating | Nickel |
| Current | 250 mA |
| Current Rating | 250 mA |
| Approvals | CE, CSA, UL |
| Body Material | Glass |
| Housing Material | Glass |
| Outside Diameter | 6.35 mm |
| Fuse Current | 250 mA |
| Size | 0.250" Dia x 1.250" L (6.35 mm x 31.75 mm) |
| Body Style | Cylindrical |
| Packaging | Bulk |
| Contact Material(Contact Finish) | Brass |
| RoHS | Compliant |
Stock: 1
Distributors
pcbx
pcbxUnit Price$0.80966
Ext.Price$0.80966
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.80966 | $0.80966 |
| 10 | $0.66624 | $6.66240 |
| 25 | $0.61668 | $15.41700 |
| 50 | $0.57081 | $28.54050 |
| 100 | $0.52836 | $52.83600 |
| 300 | $0.50667 | $152.00100 |
| 500 | $0.48587 | $242.93500 |
| 1000 | $0.46250 | $462.50000 |
