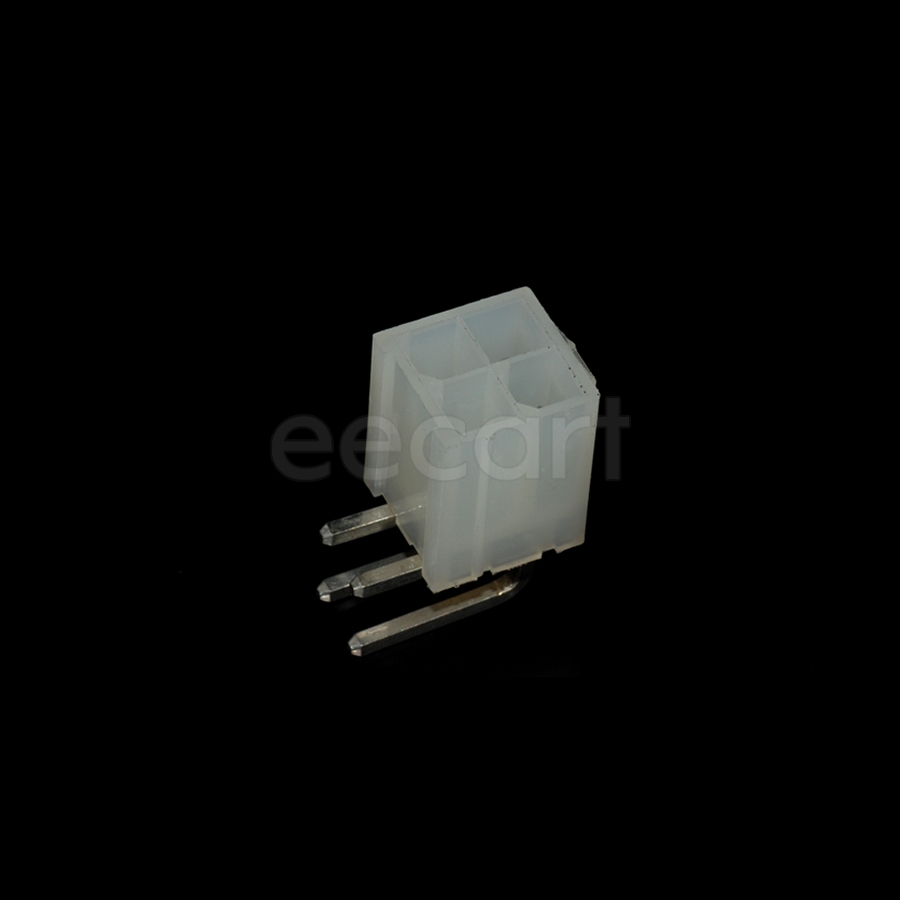

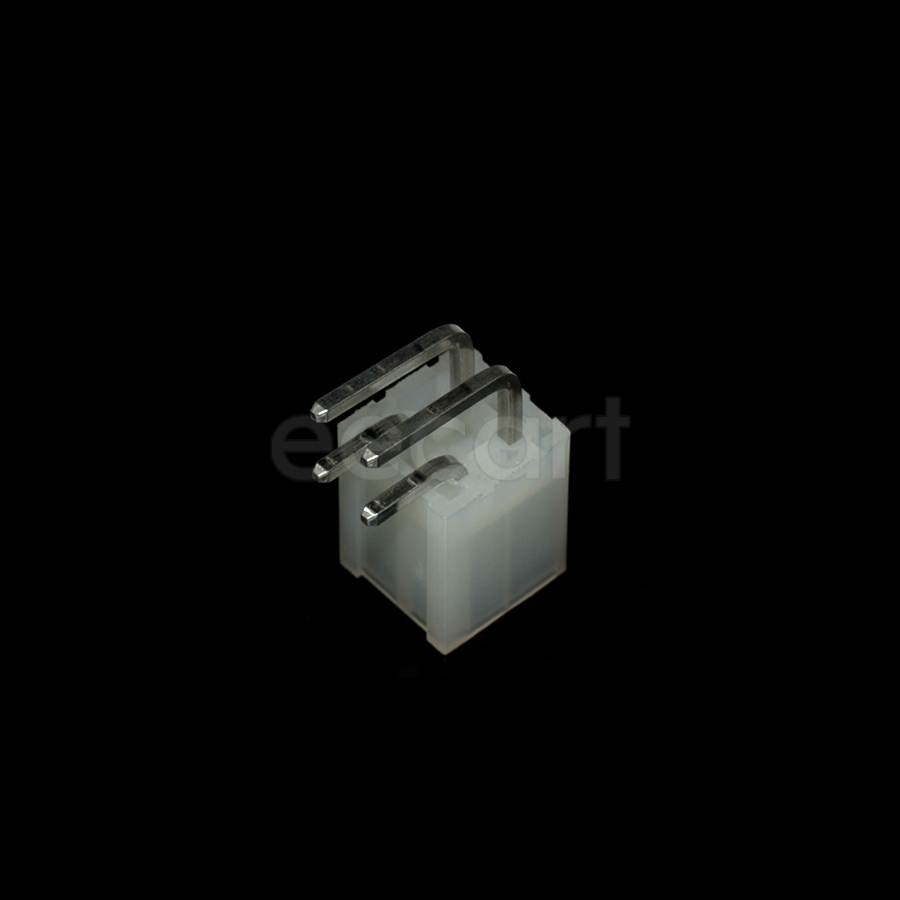

0353180420
Manufacturer:
Molex
Mfr.Part #:
0353180420
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:4 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Length | 9.6 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Depth | 12.8 mm |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 4.2 mm |
| Number of Terminals | 4 |
| Current Rating | 6 A |
| Number of Circuits | 4 |
| Orientation | Right Angle, Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Natural |
| Gender | Pin (Male) |
| Number of Contacts | 4 |
| Connector Type | Header |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing | 4.2 mm |
| Housing Material | Nylon |
| Number of Ports | 1 |
| Fastening Type | Ramp |
| Plating | Tin |
| Contact Mating Length | 5.2832 mm |
| Mating Post Length | 5.3 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | KR |
| Termination Post Length | 4.4 mm |
Stock: 2724
Distributors
pcbx
pcbxUnit Price$0.25042
Ext.Price$0.25042
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.25042 | $0.25042 |
| 10 | $0.21025 | $2.10250 |
| 25 | $0.19909 | $4.97725 |
| 50 | $0.18852 | $9.42600 |
| 100 | $0.17851 | $17.85100 |
| 300 | $0.16863 | $50.58900 |
| 500 | $0.15930 | $79.65000 |
| 1000 | $0.15169 | $151.69000 |
| 3000 | $0.14331 | $429.93000 |
| 5000 | $0.13540 | $677.00000 |
| 10000 | $0.12894 | $1289.40000 |
