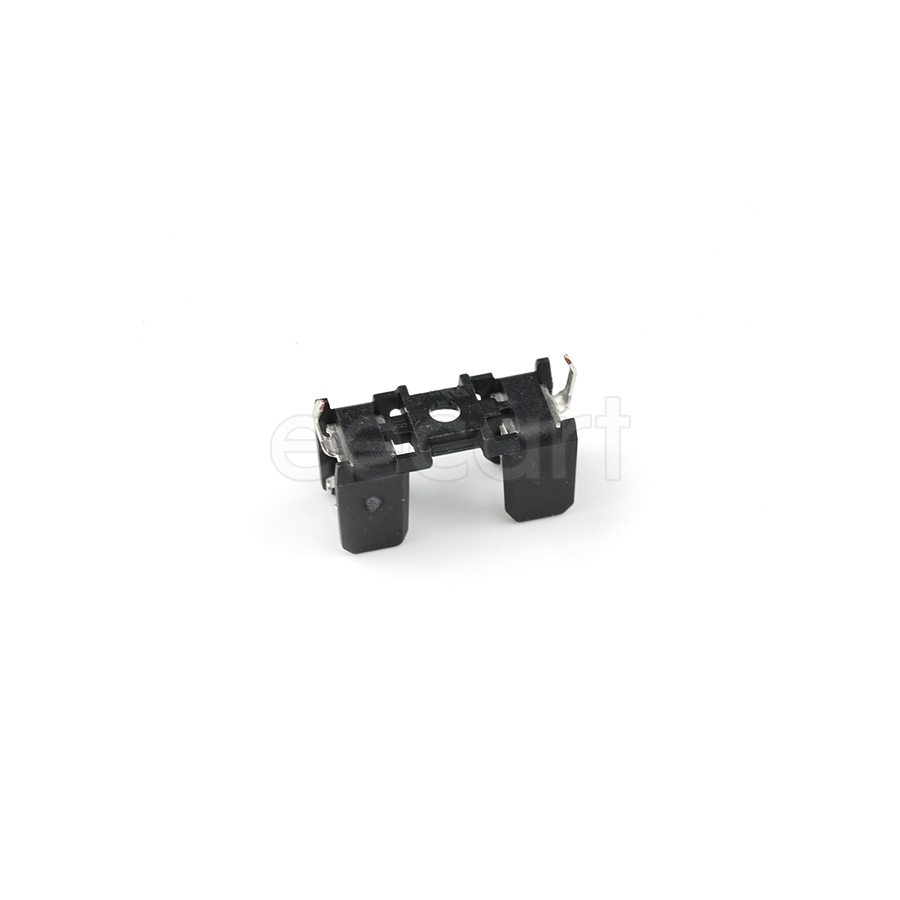

03540101ZXGY
Manufacturer:
Littelfuse
Mfr.Part #:
03540101ZXGY
Datasheet:
Description:
Fuse Holders Through Hole 15 A 600 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 300 V |
| Length | 12.7 mm |
| Width | 12.7 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 600 V |
| Height | 13.5 mm |
| Material | Thermoplastic |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 35.56 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Voltage | 600 V |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Phosphorus Bronze |
| Type | Cartridge |
| Current Rating | 15 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 1 |
| Orientation | Horizontal |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Grey |
| Body Material | Bronze, Tin |
| Ambient Temperature Range High | 85 °C |
| Number of Poles | 1 |
| Fuse Current | 15 A |
| Size | 0.250" Dia x 1.250" L (6.35 mm x 31.75 mm) |
| For Use With | 3 AG, 1/4" x 1-1/4" (SFE-20) |
Stock: 679
Distributors
pcbx
pcbxUnit Price$1.16419
Ext.Price$1.16419
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.16419 | $1.16419 |
| 10 | $0.95942 | $9.59420 |
| 25 | $0.87504 | $21.87600 |
| 50 | $0.79808 | $39.90400 |
| 100 | $0.72789 | $72.78900 |
| 300 | $0.69858 | $209.57400 |
| 500 | $0.67046 | $335.23000 |
| 1000 | $0.64486 | $644.86000 |
