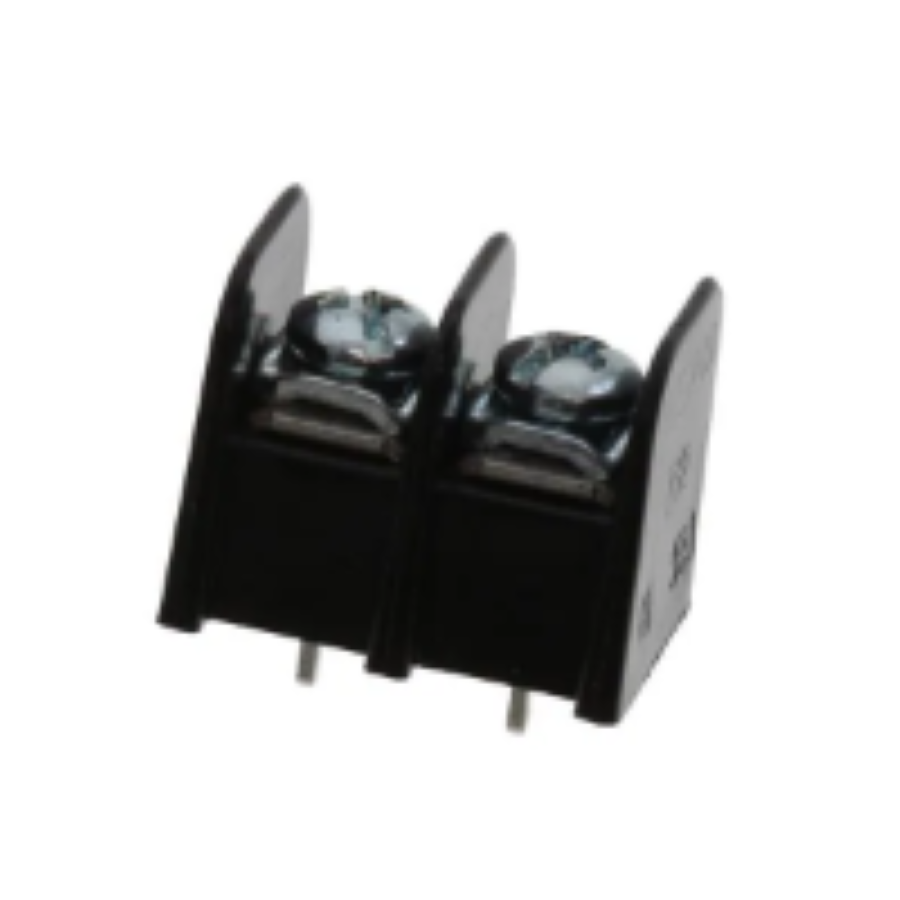

0387207504
Manufacturer:
Molex
Mfr.Part #:
0387207504
Datasheet:
Description:
Terminal Blocks Through Hole 4 9.53 mm 25 A 300 V 22 AWG to 12 AWG
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 300 V |
| Length | 40.1 mm |
| Termination | Screw |
| Max Operating Temperature | 130 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 300 V |
| Material | Brass |
| Packaging | Bag |
| Voltage Rating | 300 V |
| Depth | 15.7 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| Voltage | 300 V |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass, Steel |
| Pitch | 9.53 mm |
| Current Rating | 25 A |
| Working Voltage | 300 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 4 |
| Orientation | Horizontal |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Max Supply Voltage | 300 V |
| Color | Black |
| Number of Contacts | 4 |
| ELV | Compliant |
| Number of Poles | 4 |
| Connector Type | Terminal Block |
| Wire/Cable Gauge | 12 AWG |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Insulation Material | Thermoplastic |
| Housing Material | Thermoplastic |
| Number of Positions Per Level | 4 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 20 AWG |
| Wire Gauge (Min) | 22 AWG |
| Housing Color | Black |
| Plating | Tin |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Connection Method | Screw |
| Wire Gauge Range | 22 AWG to 12 AWG |
Stock: 1891
Distributors
pcbx
pcbxUnit Price$3.24722
Ext.Price$3.24722
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.24722 | $3.24722 |
| 10 | $2.30506 | $23.05060 |
| 25 | $2.02124 | $50.53100 |
| 50 | $1.84504 | $92.25200 |
| 100 | $1.70008 | $170.00800 |
| 300 | $1.58572 | $475.71600 |
| 500 | $1.47905 | $739.52500 |
| 1000 | $1.37955 | $1379.55000 |
