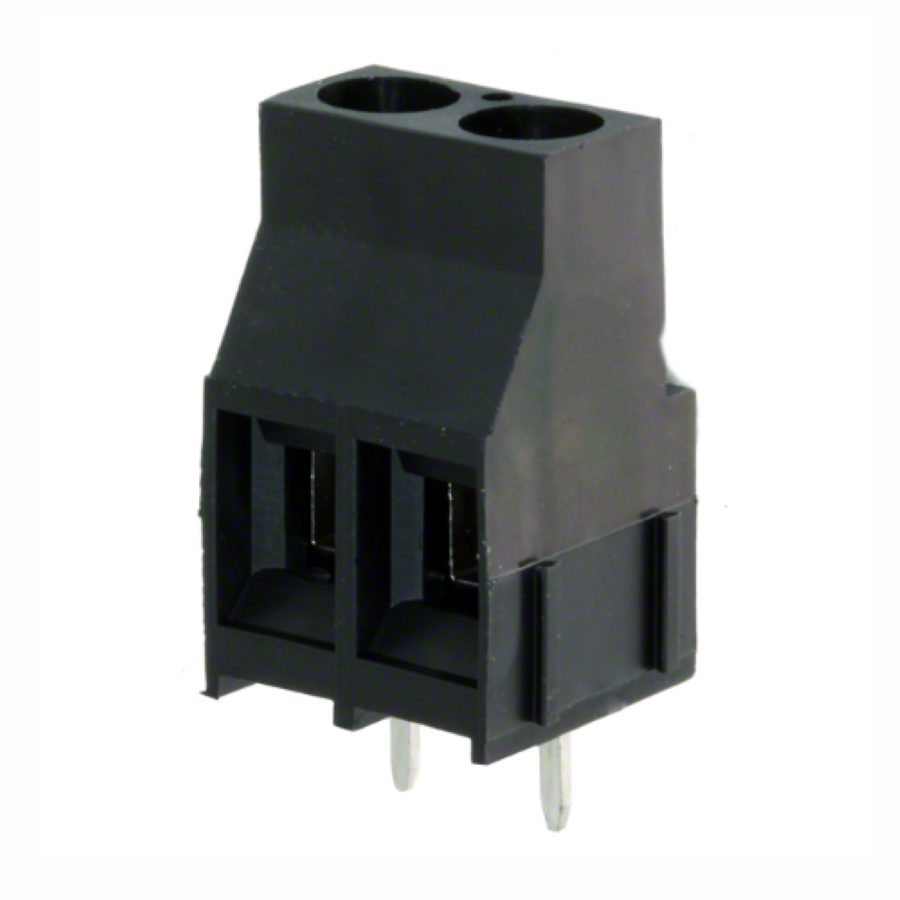

0393800102
Manufacturer:
Molex
Mfr.Part #:
0393800102
Datasheet:
Description:
Terminal Blocks Through Hole 2 6.35 mm 30 A 300 V
| Parameter | Value |
|---|---|
| Length | 13.3 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 12.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 300 V |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Pitch | 6.35 mm |
| Current | 30 A |
| Current Rating | 30 A |
| Number of Circuits | 2 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Max Voltage Rating (AC) | 300 V |
| Max Supply Voltage (AC) | 300 V |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 10 AWG |
| Housing Color | Black |
| Plating | Nickel |
| Schedule B | 8536695050|8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Connection Method | Screw |
Stock: 10402
Distributors
pcbx
pcbxUnit Price$1.10762
Ext.Price$1.10762
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.10762 | $1.10762 |
| 10 | $0.80023 | $8.00230 |
| 25 | $0.69726 | $17.43150 |
| 50 | $0.64522 | $32.26100 |
| 100 | $0.59706 | $59.70600 |
| 300 | $0.55250 | $165.75000 |
| 500 | $0.51126 | $255.63000 |
| 1000 | $0.47310 | $473.10000 |
| 3000 | $0.43779 | $1313.37000 |
| 5000 | $0.40512 | $2025.60000 |
