0430451226
Manufacturer:
Molex
Mfr.Part #:
0430451226
Datasheet:
Description:

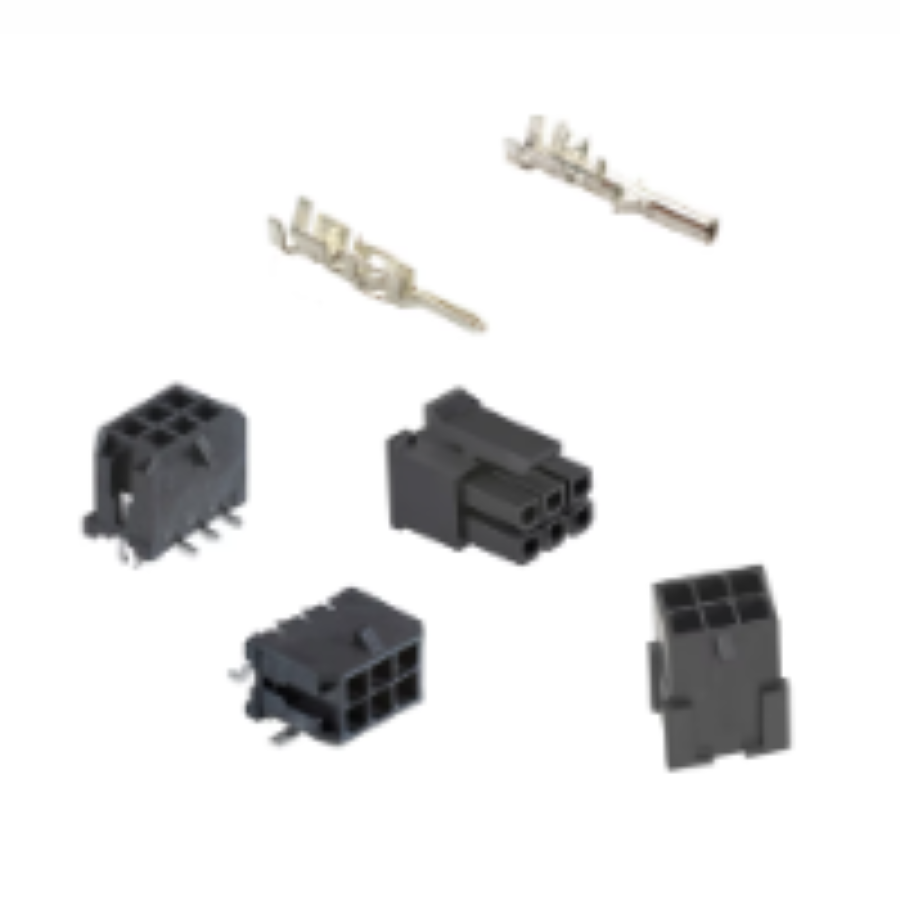

Headers and Wire Housings Through Hole Header Number of Positions:12 Pitch:3 mm
| Parameter | Value |
|---|---|
| Length | 22.15 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tray |
| Depth | 8.77 mm |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3 mm |
| Current Rating | 5 A |
| Max Voltage Rating (DC) | 250 V |
| Number of Circuits | 12 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 12 |
| Connector Type | Header |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing | 3 mm |
| Housing Material | Polymer |
| Fastening Type | Ramp |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Black |
| Plating | Tin |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 3.18 mm |
Stock: 418
Distributors
pcbx
pcbxUnit Price$2.11462
Ext.Price$2.11462
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.11462 | $2.11462 |
| 10 | $1.79512 | $17.95120 |
| 25 | $1.68238 | $42.05950 |
| 50 | $1.60203 | $80.10150 |
| 100 | $1.52551 | $152.55100 |
| 300 | $1.44130 | $432.39000 |
| 500 | $1.36174 | $680.87000 |
| 1000 | $1.27803 | $1278.03000 |
| 3000 | $1.19946 | $3598.38000 |
