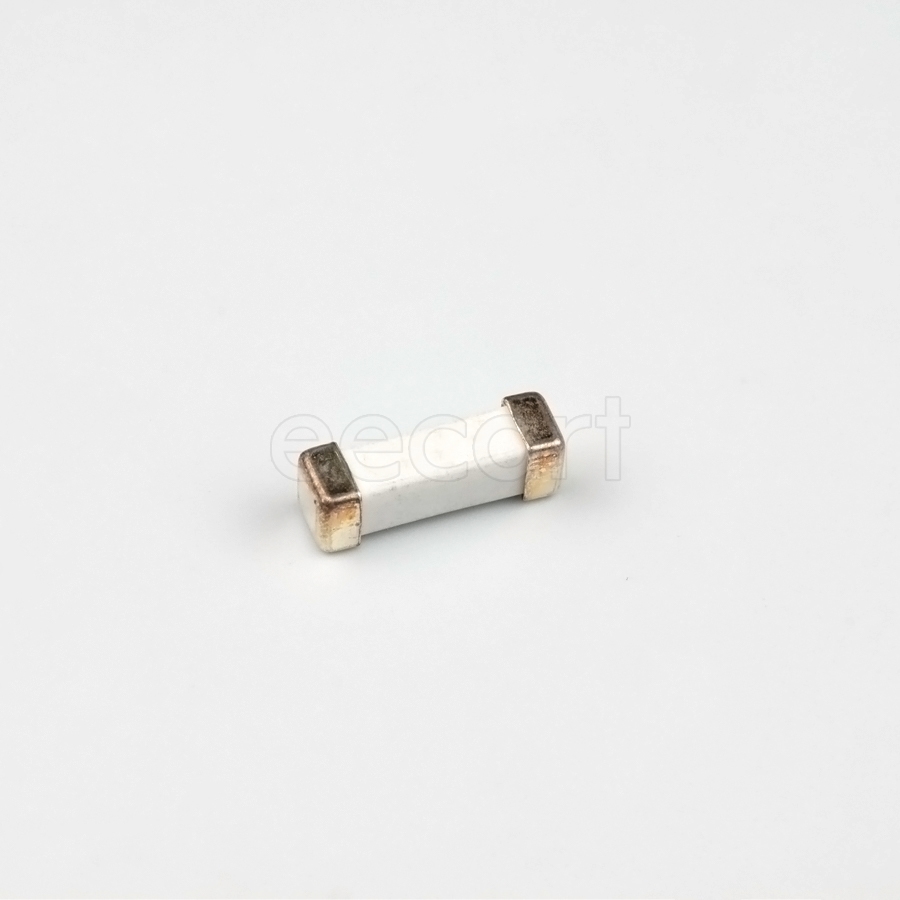

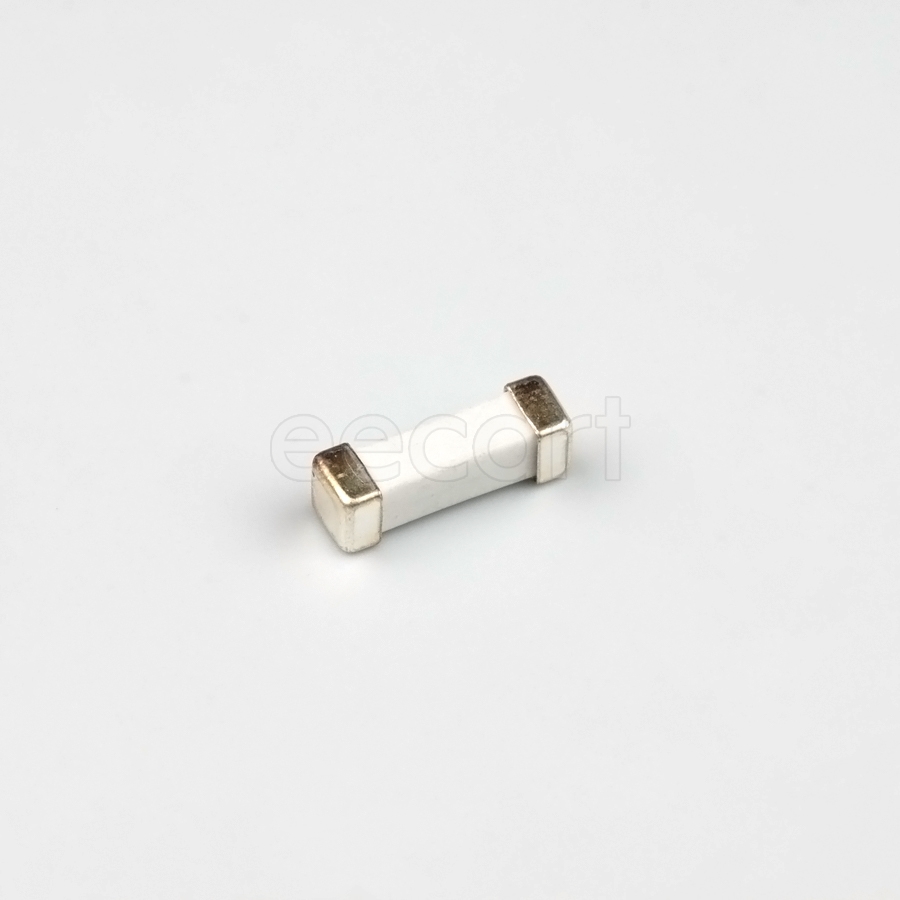

0452012.MRL
Manufacturer:
Littelfuse
Mfr.Part #:
0452012.MRL
Datasheet:
Description:
Fuses SMD/SMT Time Delay / Slow Blow 12 A Voltage Rating (AC):72 V Voltage Rating (DC):60 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 60 V |
| Length | 6.1 mm |
| Width | 2.69 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 72 V |
| Number of Pins | 2 |
| Resistance | 6.1 mΩ |
| Height | 2.6924 mm |
| Packaging | Reel |
| Depth | 2.69 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Current Rating | 12 A |
| Approvals | CSA, UR |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Body Material | Ceramic |
| Housing Material | Ceramic |
| Size | 0.240" L x 0.106" W x 0.106" H (6.10 mm x 2.69 mm x 2.69 mm) |
| Type | Time Delay / Slow Blow |
Stock: 674
Distributors
pcbx
pcbxUnit Price$0.27485
Ext.Price$0.27485
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.27485 | $0.27485 |
| 10 | $0.24301 | $2.43010 |
| 50 | $0.21485 | $10.74250 |
| 100 | $0.19177 | $19.17700 |
| 500 | $0.17117 | $85.58500 |
| 1000 | $0.15278 | $152.78000 |
| 3000 | $0.14149 | $424.47000 |
| 5000 | $0.13103 | $655.15000 |
