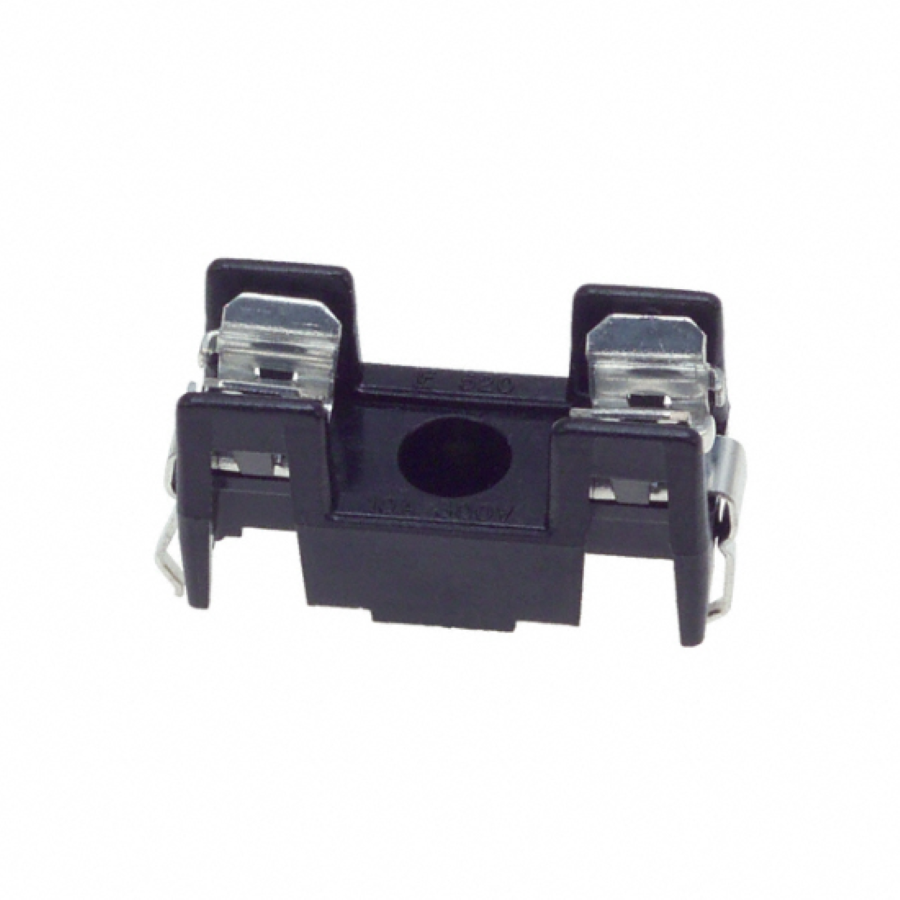

05200101Z
Manufacturer:
Littelfuse
Mfr.Part #:
05200101Z
Datasheet:
Description:
Fuse Holders Through Hole 10 A 600 V Illuminated
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 300 V |
| Length | 26.2 mm |
| Width | 10.2 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 300 V |
| Number of Pins | 2 |
| Material | Thermoplastic |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 10.16 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Voltage | 600 V |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Current Rating | 10 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 1 |
| Orientation | Horizontal |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Body Material | Thermoplastic |
| Number of Poles | 1 |
| Illumination Type | Illuminated |
| Fuse Current | 10 A |
| Size | 5 mm x 20 mm |
Stock: 2384
Distributors
pcbx
pcbxUnit Price$0.60634
Ext.Price$0.60634
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.60634 | $0.60634 |
| 10 | $0.48240 | $4.82400 |
| 25 | $0.43904 | $10.97600 |
| 50 | $0.39957 | $19.97850 |
| 100 | $0.36365 | $36.36500 |
| 300 | $0.34401 | $103.20300 |
| 500 | $0.32544 | $162.72000 |
| 1000 | $0.30710 | $307.10000 |
