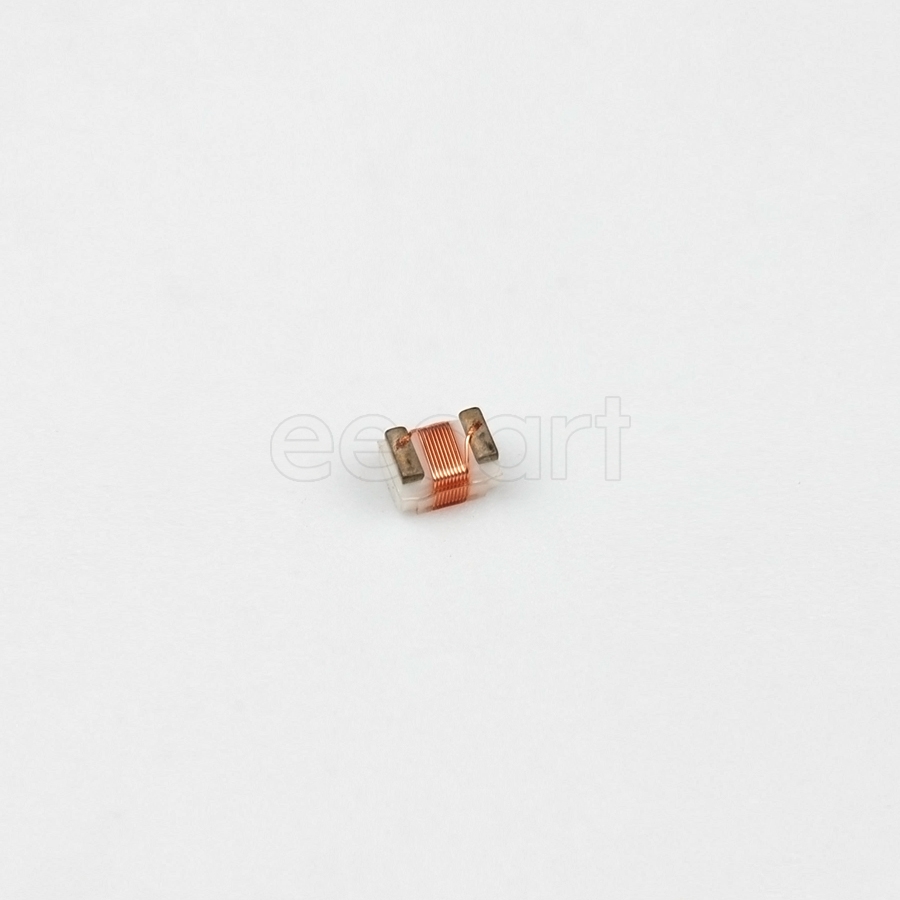

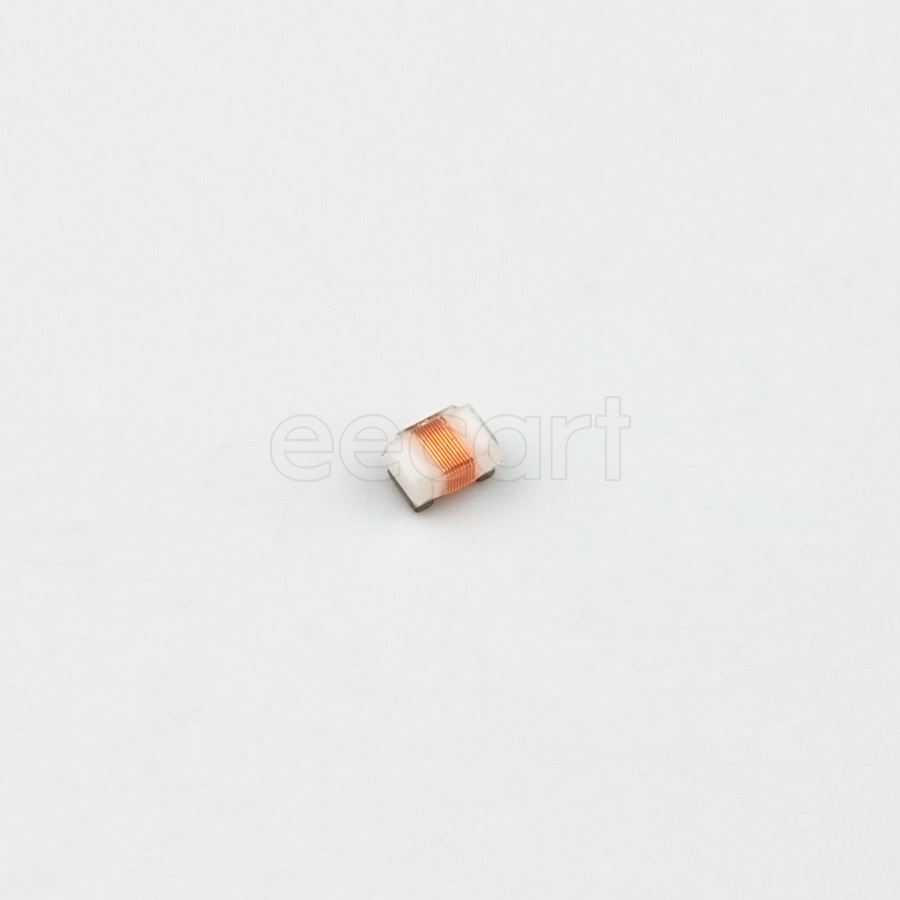

0603LS-682XJLB
Manufacturer:
Coilcraft
Mfr.Part #:
0603LS-682XJLB
Datasheet:
Description:
Fixed Inductors 1.80mmL×1.17mmW×1.12mmH SMD/SMT 6.8 µH 5 % 200 mA 3.1 Ω
| Parameter | Value |
|---|---|
| Tolerance | 5 % |
| Length | 1.8 mm |
| Width | 1.169 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Height | 1.12 mm |
| Packaging | Reel |
| Lead Free | Contains Lead |
| REACH SVHC | No SVHC |
| Weight | 2.012816 mg |
| Self Resonant Frequency | 31 MHz |
| Q Factor | 15 |
| Current Rating | 200 mA |
| DC Resistance (DCR) | 3.1 Ω |
| Test Frequency | 7.9 MHz |
| Lifecycle Status | Production (Last Updated: 4 months ago) |
| Inductance | 6.8 µH |
| Core Material | Ceramic, Ferrite |
| inductance tolerance | 5 % |
| Max DC Current | 200 mA |
| Shielding | Unshielded |
| Height - Seated (Max) | 1.12 mm |
| Type | Wirewound |
| RoHS | Compliant |
