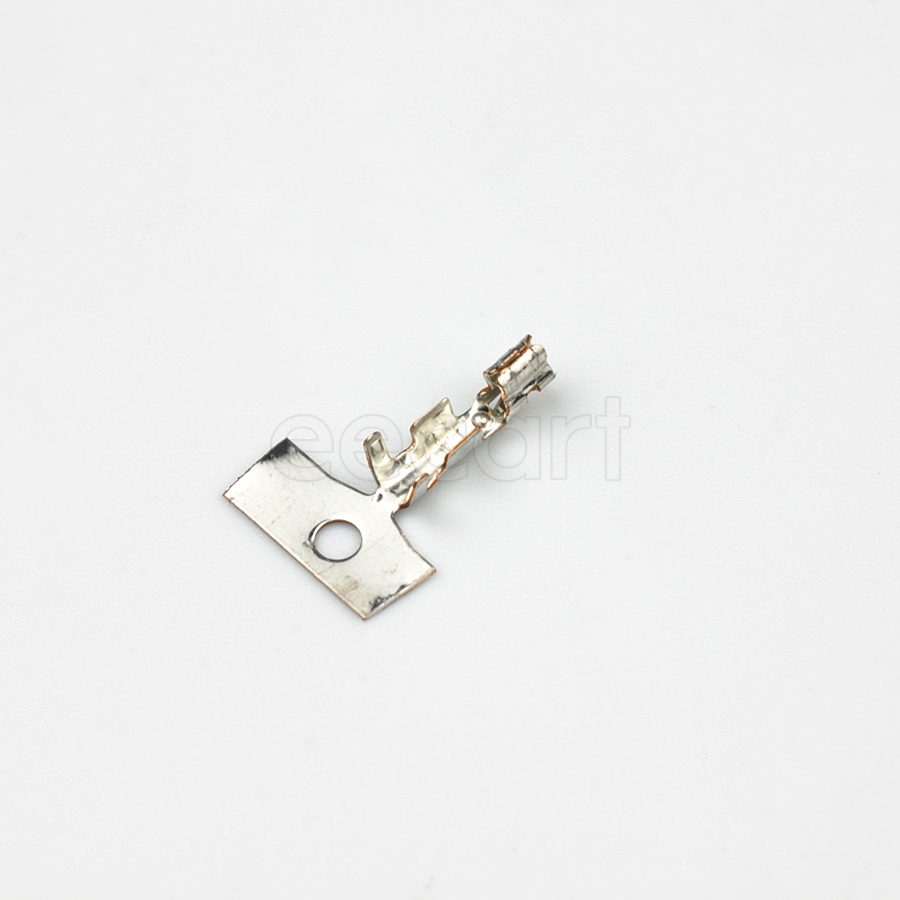

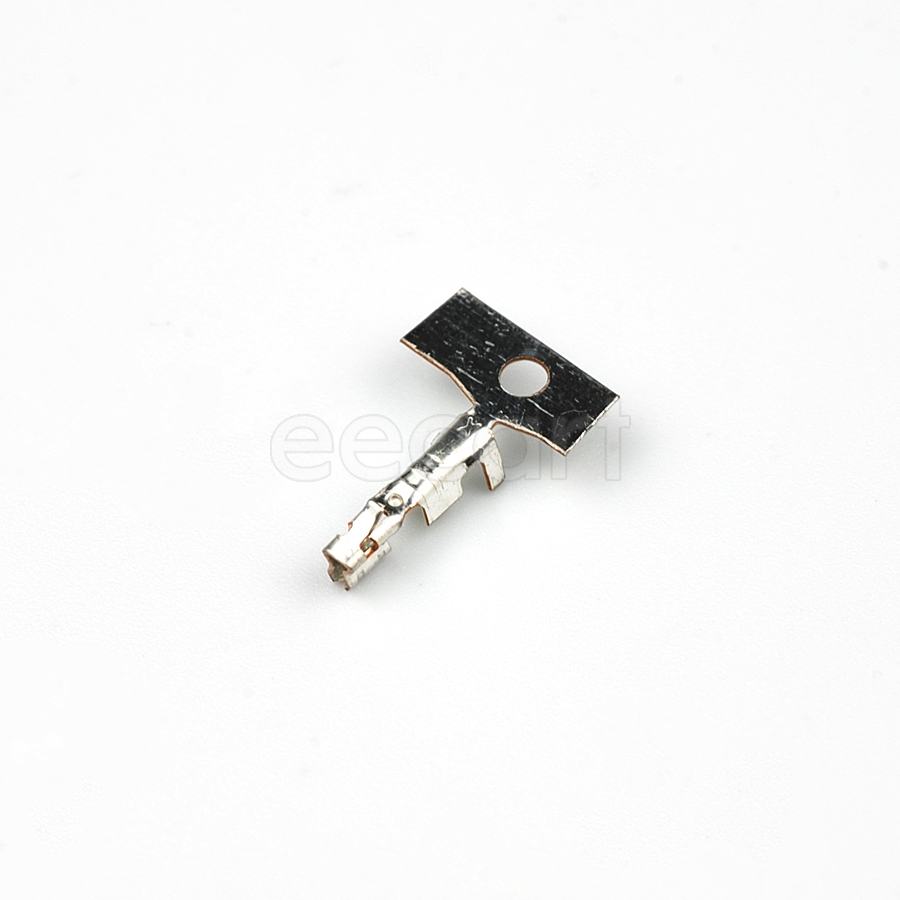

08-70-1031
Manufacturer:
Molex
Mfr.Part #:
08-70-1031
Datasheet:
Description:
Headers and Wire Housings Through Hole Connector, Crimp, PCB, Signal
| Parameter | Value |
|---|---|
| Length | 12.5 mm |
| Width | 3.5 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 3.6 mm |
| Packaging | Reel |
| Voltage Rating | 250 V |
| Depth | 3.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Current Rating | 7 A |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 1 |
| Number of Poles | 1 |
| Connector Type | Connector, Crimp, PCB, Signal |
| Wire/Cable Gauge | 18 AWG |
| Contact Resistance | 10 mΩ |
| Shape | Straight |
| Wire Gauge (Max) | 18 AWG |
| Wire Gauge (Min) | 24 AWG |
| Plating | Tin |
| Contact Gender | Female |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | JP |
Stock: 105060
Distributors
pcbx
pcbxUnit Price$0.22282
Ext.Price$0.22282
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.22282 | $0.22282 |
| 10 | $0.11141 | $1.11410 |
| 50 | $0.08570 | $4.28500 |
| 100 | $0.06592 | $6.59200 |
| 500 | $0.05071 | $25.35500 |
| 1000 | $0.03901 | $39.01000 |
| 3000 | $0.03001 | $90.03000 |
| 5000 | $0.03001 | $150.05000 |
| 10000 | $0.02941 | $294.10000 |
| 30000 | $0.02576 | $772.80000 |
| 50000 | $0.02257 | $1128.50000 |
