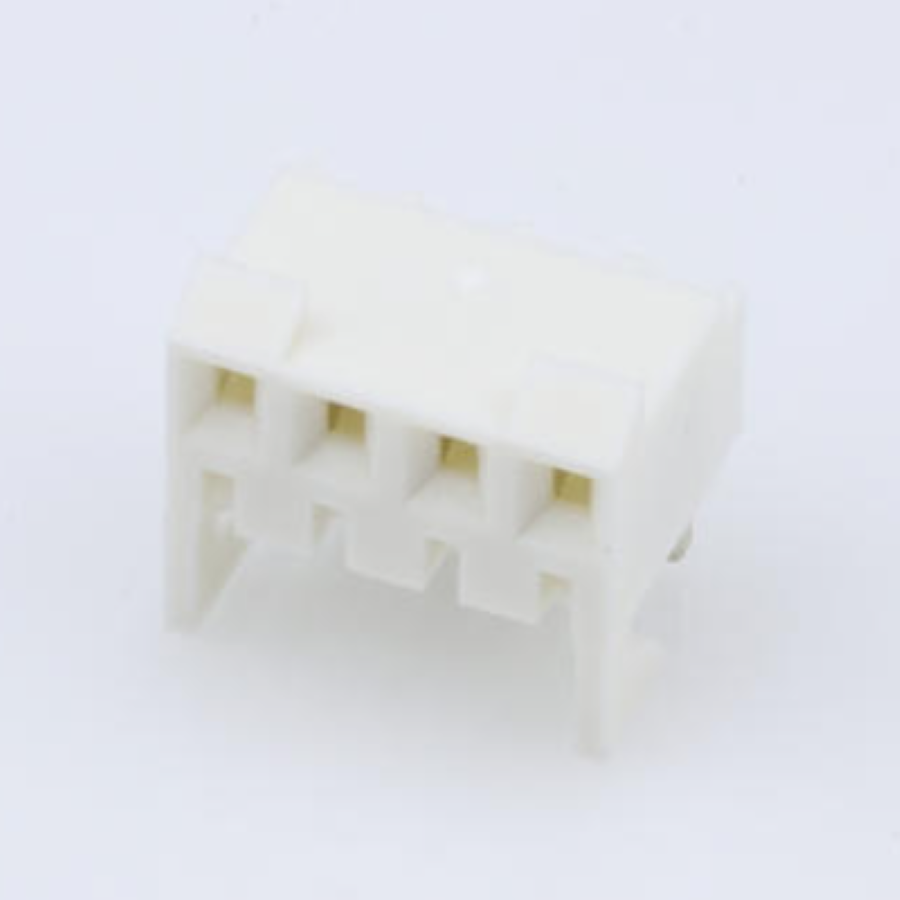

09-48-4108
Manufacturer:
Molex
Mfr.Part #:
09-48-4108
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:10 Pitch:3.96 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tray |
| Voltage Rating | 250 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 3.96 mm |
| Current Rating | 5 A |
| Number of Circuits | 9 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Female |
| Number of Contacts | 10 |
| Connector Type | Receptacle |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Contact Resistance | 6 mΩ |
| Housing Color | White |
| Plating | Tin |
| Contact Gender | Female |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | PR |
| Termination Post Length | 3.05 mm |
Stock: 1849
Distributors
pcbx
pcbxUnit Price$1.32087
Ext.Price$1.32087
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.32087 | $1.32087 |
| 10 | $1.15159 | $11.51590 |
| 25 | $1.12680 | $28.17000 |
| 50 | $1.05208 | $52.60400 |
| 100 | $0.98231 | $98.23100 |
| 300 | $0.92098 | $276.29400 |
| 500 | $0.86348 | $431.74000 |
| 1000 | $0.81390 | $813.90000 |
