09675097658
Manufacturer:
Harting
Mfr.Part #:
09675097658
Datasheet:
Description:

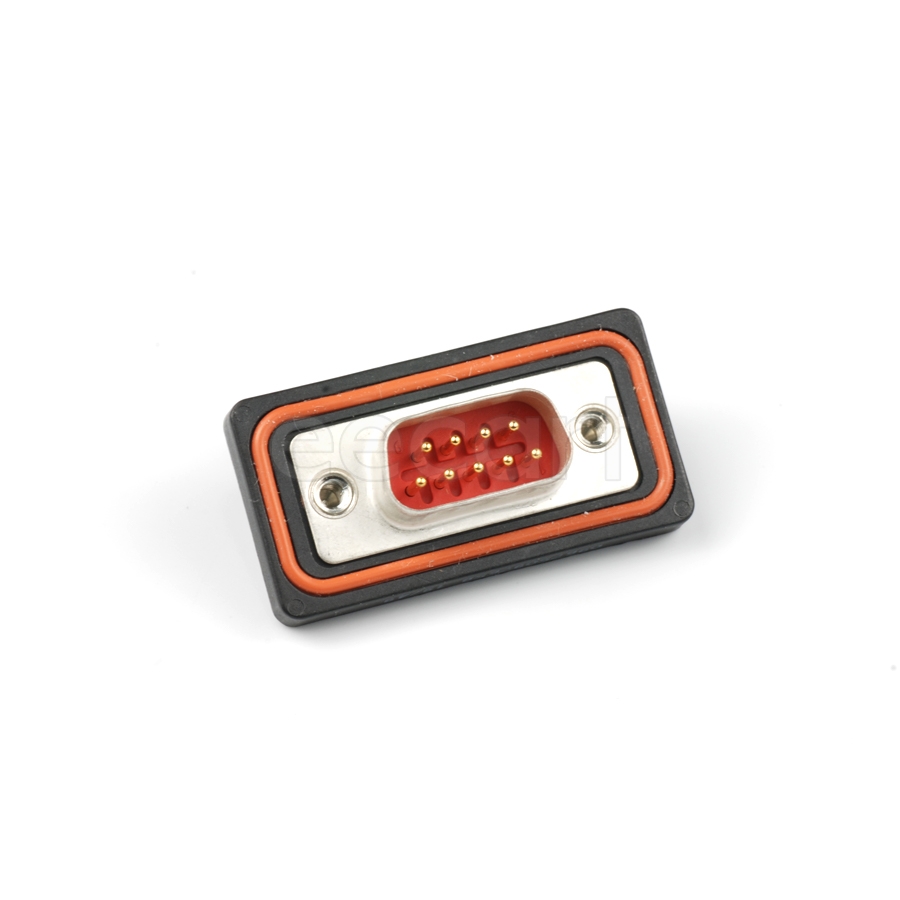

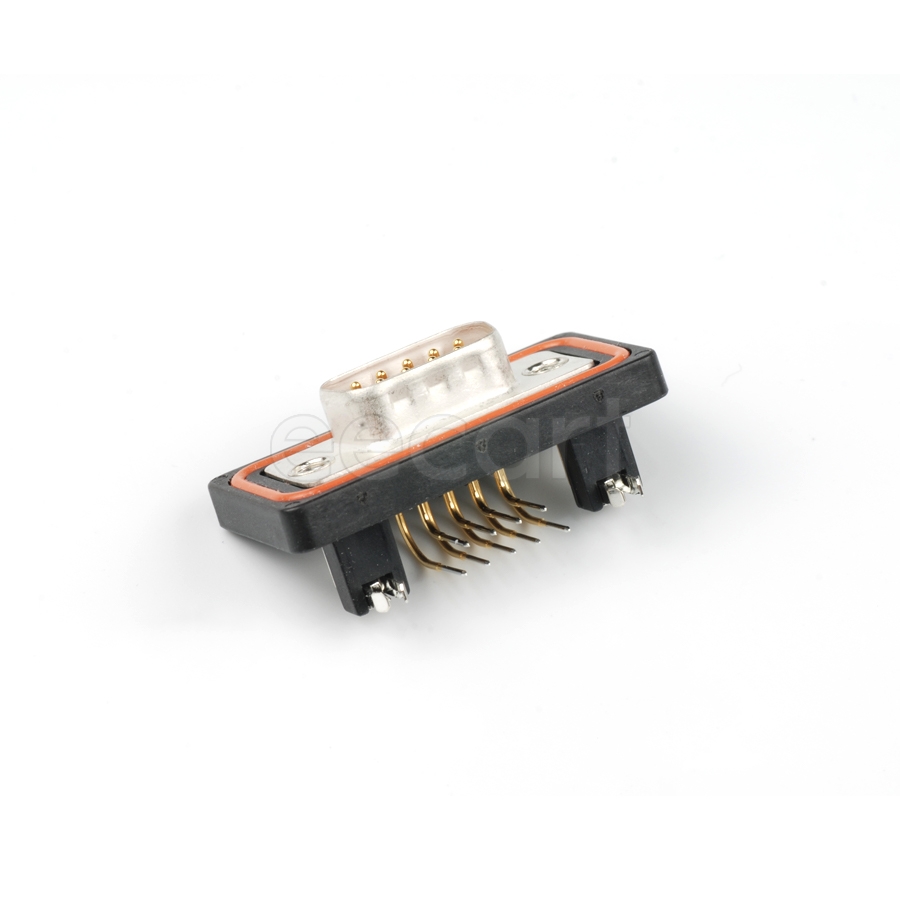

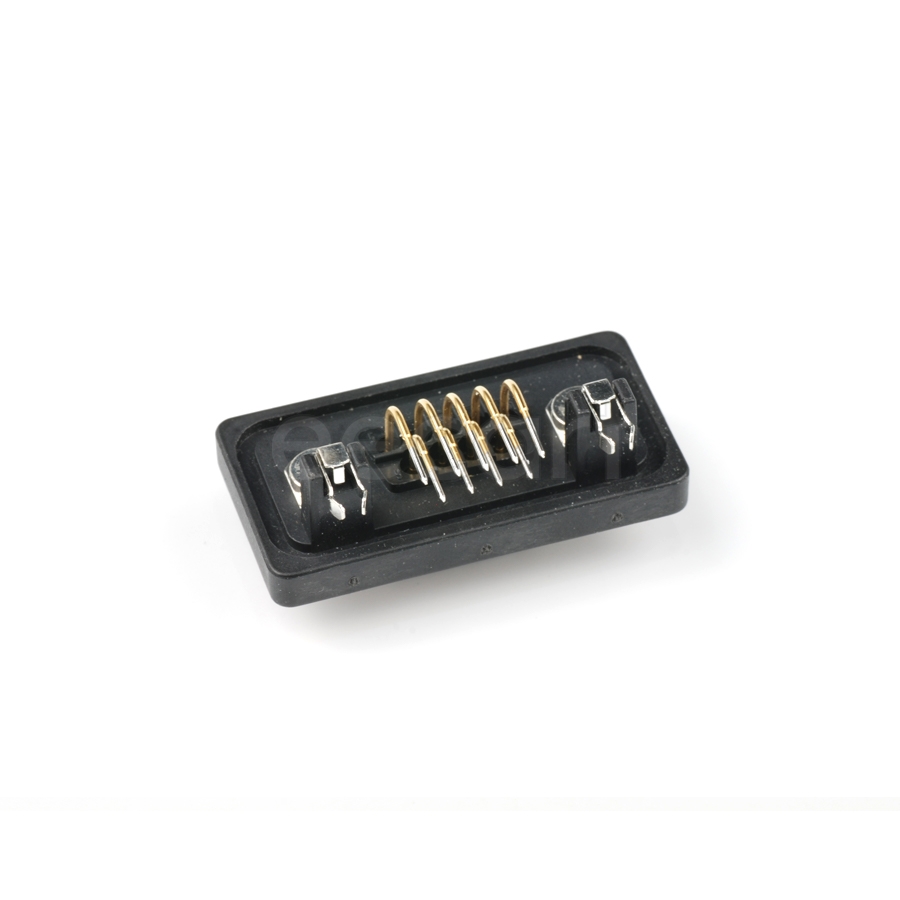

D-Sub Connectors Through Hole D-Sub Number of Positions:9 Solder IP67 Male
| Parameter | Value |
|---|---|
| Length | 40 mm |
| Width | 18.84 mm |
| Termination | Solder |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| Depth | 19 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Ratings | Dust Tight, IP67, Waterproof |
| Contact Plating | Gold |
| Pitch | 2.74 mm |
| Number of Terminals | 9 |
| Current Rating | 5 A |
| Orientation | Right Angle |
| Gender | Male |
| Number of Contacts | 9 |
| Connector Type | D-Sub, Plug, Signal |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Housing Material | Glass |
| Number of Ports | 1 |
| Contact Type | Pin D-Sub |
| IP Rating(Ingress Protection) | IP67 |
| Type | D-Sub |
Stock: 6
Distributors
pcbx
pcbxUnit Price$18.18606
Ext.Price$18.18606
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $18.18606 | $18.18606 |
| 10 | $15.45713 | $154.57130 |
| 25 | $14.48764 | $362.19100 |
| 50 | $13.79258 | $689.62900 |
| 100 | $13.13600 | $1313.60000 |
| 300 | $12.44187 | $3732.56100 |
| 500 | $11.78435 | $5892.17500 |
