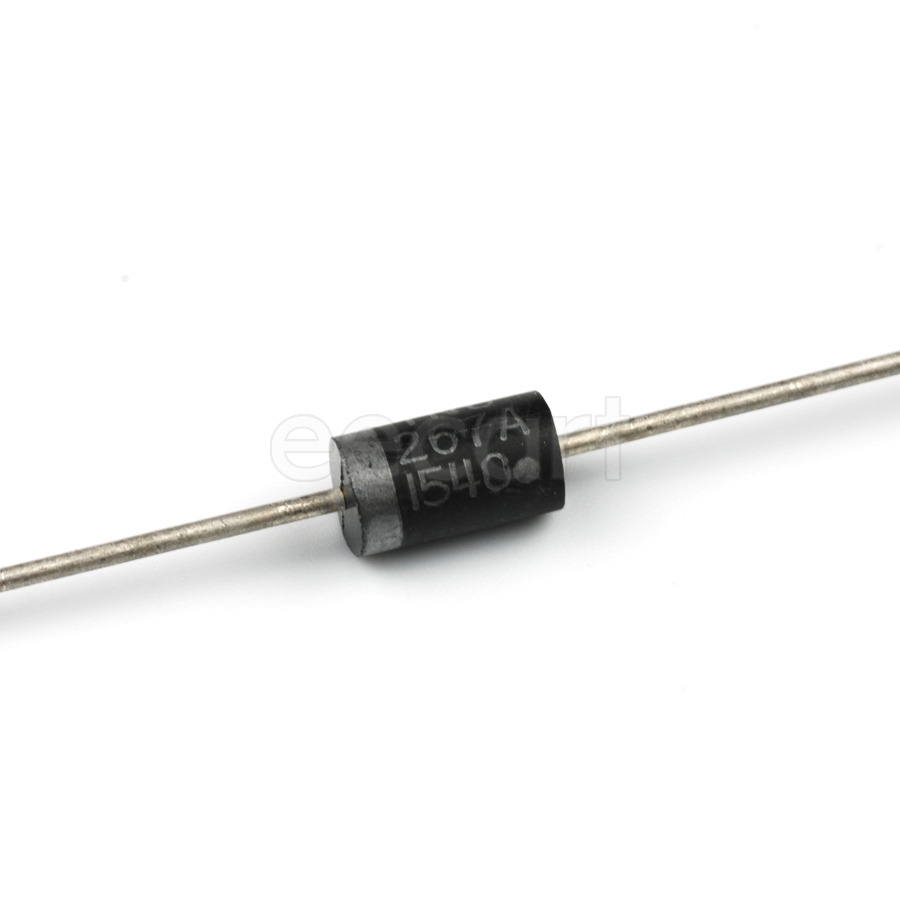

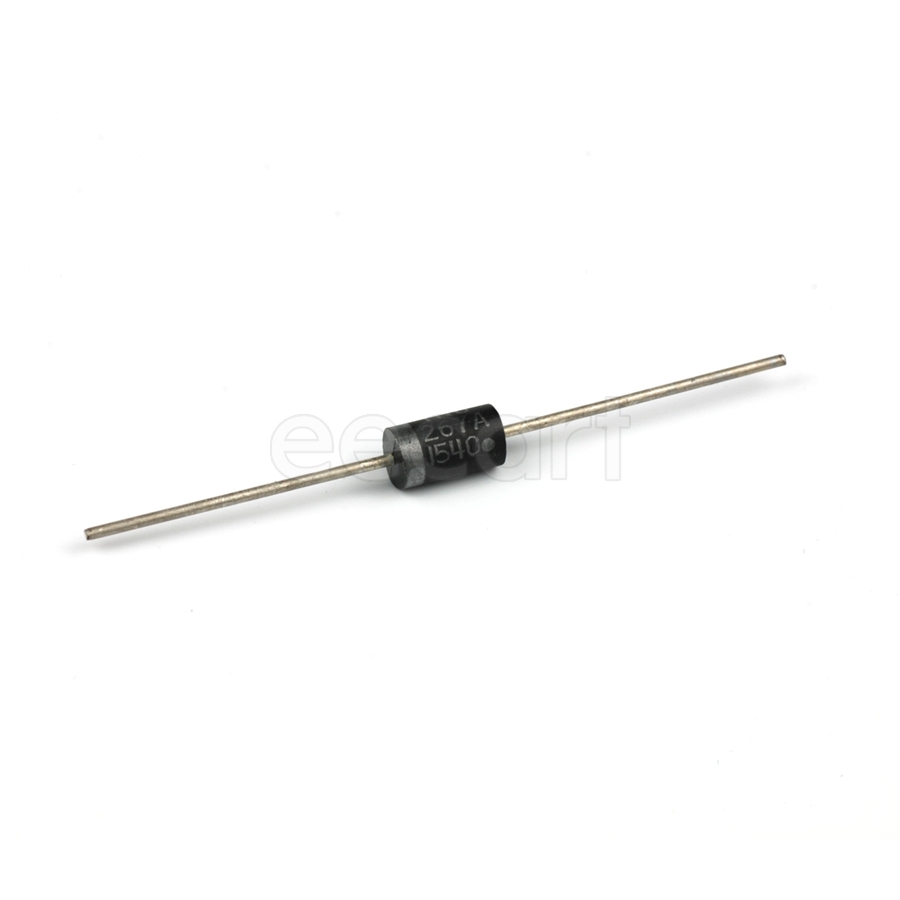

1.5KE180CA
Manufacturer:
STMicroelectronics
Mfr.Part #:
1.5KE180CA
Datasheet:
Description:
TVS Diodes DO-201AD Through Hole Working Voltage:154 V Breakdown Voltage:171 V Clamping Voltage:317 V Peak Pulse Power:1.5 kW Polarity:Bidirectional
| Parameter | Value |
|---|---|
| Capacitance | 725 pF |
| Voltage Rating (DC) | 180 V |
| Length | 9.5 mm |
| Width | 5.3 mm |
| Termination | Through Hole |
| Diameter | 5.3 mm |
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 2 |
| Leakage Current | 1 µA |
| Power Rating | 1.5 kW |
| Composition(Kit Type) | Zener |
| Height | 5.3 mm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Bidirectional |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Number of Elements | 1 |
| Working Voltage | 154 V |
| Operating Supply Voltage | 154 V |
| Power Dissipation | 1.5 kW |
| Peak Pulse Current | 31.5 A |
| Number of Channels | 1 |
| Breakdown Voltage | 171 V |
| Max Reverse Leakage Current | 1 µA |
| Element Configuration | Single |
| Direction(Counting Sequence) | Bidirectional |
| Min Breakdown Voltage | 171 V |
| Reverse Standoff Voltage | 154 V |
| Clamping Voltage | 317 V |
| Peak Pulse Power | 1.5 kW |
| Power Line Protection | No |
| Max Surge Current | 1 mA |
| Number of Bidirectional Channels | 1 |
| Reverse Breakdown Voltage | 171 V |
| ESD Protection | No |
| Test Current | 1 mA |
| Max Breakdown Voltage | 189 V |
| Schedule B | 8541100080 |
| Diode Capacitance | 725 pF |
Stock: 1
Distributors
pcbx
pcbxUnit Price$0.47683
Ext.Price$0.47683
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.47683 | $0.47683 |
| 10 | $0.38026 | $3.80260 |
| 25 | $0.34731 | $8.68275 |
| 50 | $0.31722 | $15.86100 |
| 100 | $0.28974 | $28.97400 |
