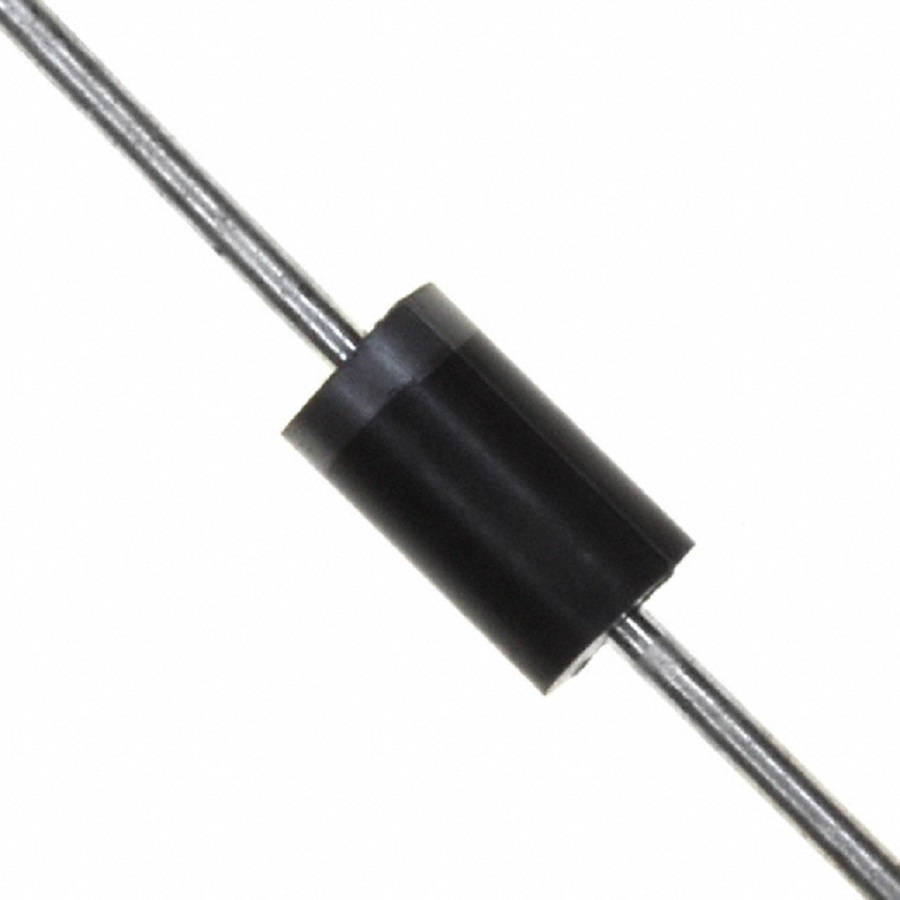

1.5KE33A
Manufacturer:
STMicroelectronics
Mfr.Part #:
1.5KE33A
Datasheet:
Description:
TVS Diodes DO201-2 Through Hole Working Voltage:28.2 V Breakdown Voltage:31.4 V Clamping Voltage:45.7 V Peak Pulse Power:1.5 kW Polarity:Unidirectional
| Parameter | Value |
|---|---|
| Capacitance | 2.7 nF |
| Voltage Rating (DC) | 33 V |
| Length | 9.5 mm |
| Width | 5.3 mm |
| Termination | Through Hole |
| Diameter | 5.3 mm |
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 2 |
| Leakage Current | 1 µA |
| Power Rating | 1.5 kW |
| Composition(Kit Type) | Zener |
| Height | 5.3 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Number of Elements | 1 |
| Operating Supply Voltage | 28.2 V |
| Max Power Dissipation | 1.5 kW |
| Power Dissipation | 1.5 kW |
| Peak Pulse Current | 33 A |
| Number of Channels | 1 |
| Breakdown Voltage | 31.4 V |
| Max Reverse Leakage Current | 1 µA |
| Element Configuration | Single |
| Direction(Counting Sequence) | Unidirectional |
| Min Breakdown Voltage | 31.4 V |
| Reverse Standoff Voltage | 28.2 V |
| Clamping Voltage | 45.7 V |
| Peak Pulse Power | 1.5 kW |
| Power Line Protection | No |
| Number of Unidirectional Channels | 1 |
| Max Surge Current | 1 mA |
| Reverse Breakdown Voltage | 31.4 V |
| ESD Protection | No |
| Test Current | 1 mA |
| Max Junction Temperature (Tj) | 175 °C |
| Max Breakdown Voltage | 34.7 V |
| Schedule B | 8541100080 |
| RoHS | Compliant |
| Polarity | Unidirectional |
| Packaging | Ammo Pack |
| Working Voltage | 28.2 V |
| Diode Capacitance | 2.7 nF |
Stock: 22
Distributors
pcbx
pcbxUnit Price$0.43152
Ext.Price$0.43152
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.43152 | $0.43152 |
| 10 | $0.34368 | $3.43680 |
| 25 | $0.31380 | $7.84500 |
| 50 | $0.28652 | $14.32600 |
| 100 | $0.26161 | $26.16100 |
| 300 | $0.24955 | $74.86500 |
| 500 | $0.23805 | $119.02500 |
| 1000 | $0.22708 | $227.08000 |
