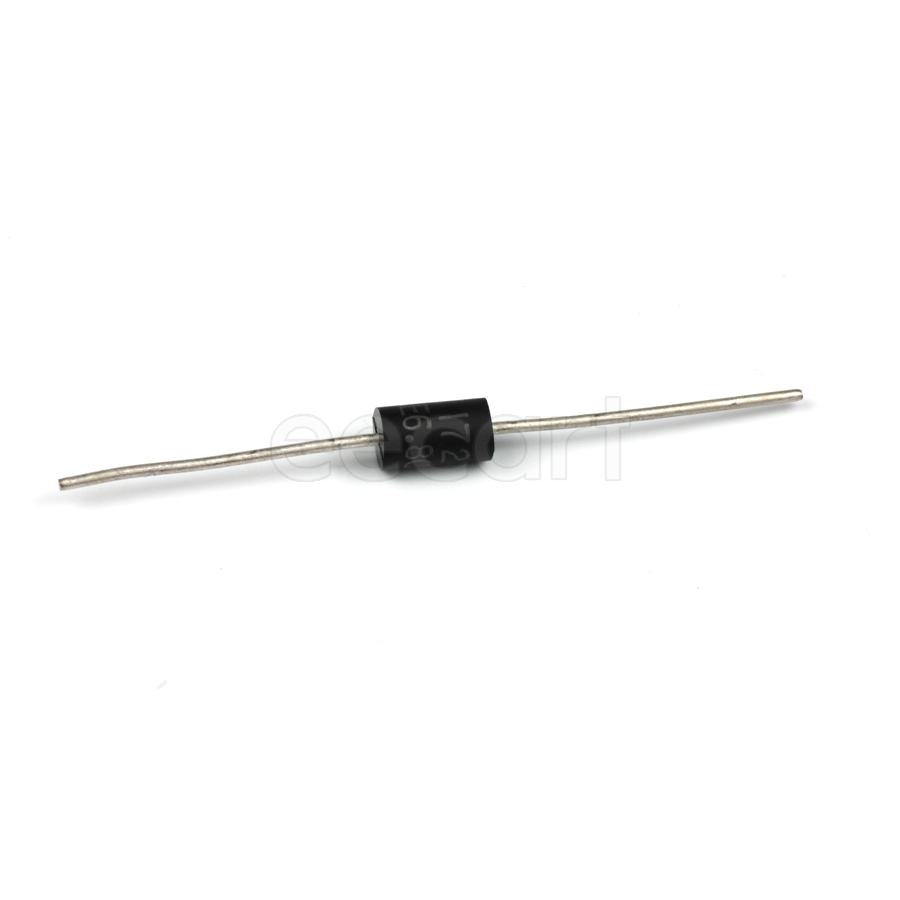

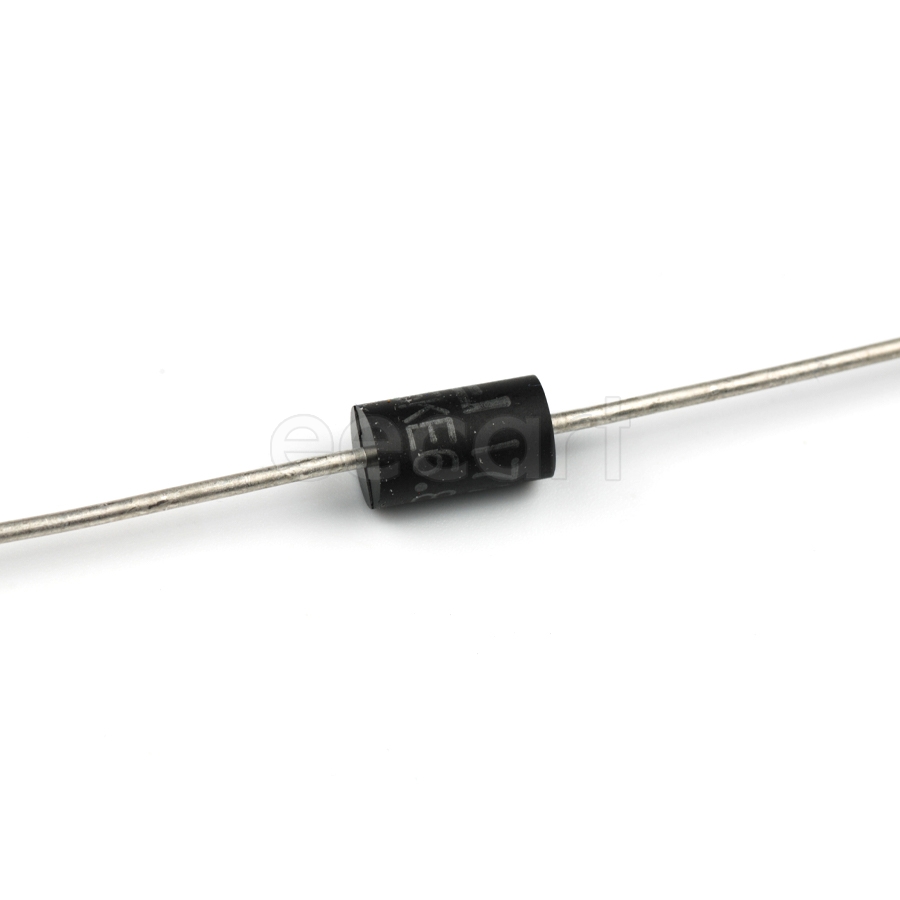

1.5KE6.8CA
Manufacturer:
Littelfuse
Mfr.Part #:
1.5KE6.8CA
Datasheet:
Description:
TVS Diodes DO201-2 Through Hole Working Voltage:5.8 V Breakdown Voltage:64.6 V Clamping Voltage:92 V Peak Pulse Power:1.5 kW Polarity:Bidirectional
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 6.8 V |
| Length | 9.4996 mm |
| Termination | Axial |
| Diameter | 5.3 mm |
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Leakage Current | 1 µA |
| Power Rating | 1.5 kW |
| Composition(Kit Type) | Zener |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Bidirectional |
| REACH SVHC | No SVHC |
| Number of Elements | 1 |
| Operating Supply Voltage | 5.8 V |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Max Power Dissipation | 6.5 W |
| Power Dissipation | 1.5 kW |
| Peak Pulse Current | 16.5 A |
| Number of Channels | 1 |
| Breakdown Voltage | 64.6 V |
| Max Reverse Leakage Current | 1 µA |
| Element Configuration | Single |
| Direction(Counting Sequence) | Bidirectional |
| Min Breakdown Voltage | 64.6 V |
| Reverse Standoff Voltage | 5.8 V |
| Clamping Voltage | 92 V |
| Power Line Protection | No |
| Max Surge Current | 16.5 A |
| Number of Bidirectional Channels | 1 |
| Reverse Breakdown Voltage | 6.45 V |
| ESD Protection | Yes |
| Reverse Voltage | 58.1 V |
| Test Current | 1 mA |
| Max Breakdown Voltage | 71.4 V |
| Schedule B | 8541100080 |
| Packaging | Reel |
| Peak Pulse Power | 1.5 kW |
| Working Voltage | 5.8 V |
| Voltage ESD Air Gap | 15 kV |
| Voltage ESD Contact | 8 kV |
Stock: 12125
Distributors
pcbx
pcbxUnit Price$0.30692
Ext.Price$0.30692
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.30692 | $0.30692 |
| 10 | $0.26760 | $2.67600 |
| 25 | $0.24078 | $6.01950 |
| 50 | $0.21665 | $10.83250 |
| 100 | $0.19493 | $19.49300 |
| 300 | $0.17368 | $52.10400 |
| 500 | $0.15474 | $77.37000 |
| 1000 | $0.14790 | $147.90000 |
