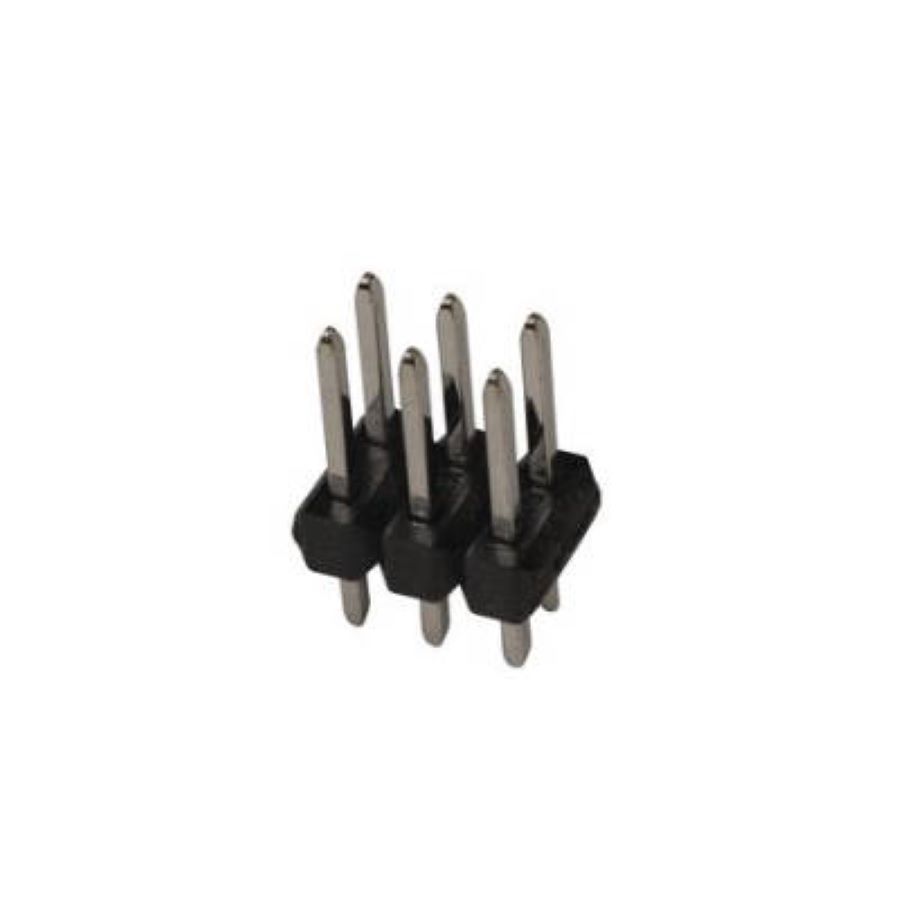

10-89-7061
Manufacturer:
Molex
Mfr.Part #:
10-89-7061
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 6 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 6 |
| ELV | Compliant |
| Connector Type | Male Pin |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Mating Length | 6.096 mm |
| Contact Gender | Male |
| Mating Post Length | 6.1 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 2.71 mm |
Stock: 9813
Distributors
pcbx
pcbxUnit Price$0.23169
Ext.Price$0.23169
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.23169 | $0.23169 |
| 10 | $0.20176 | $2.01760 |
| 25 | $0.17013 | $4.25325 |
| 50 | $0.16078 | $8.03900 |
| 100 | $0.15194 | $15.19400 |
| 300 | $0.14359 | $43.07700 |
| 500 | $0.13570 | $67.85000 |
| 1000 | $0.12824 | $128.24000 |
| 3000 | $0.12796 | $383.88000 |
| 5000 | $0.12768 | $638.40000 |
| 10000 | $0.12739 | $1273.90000 |
