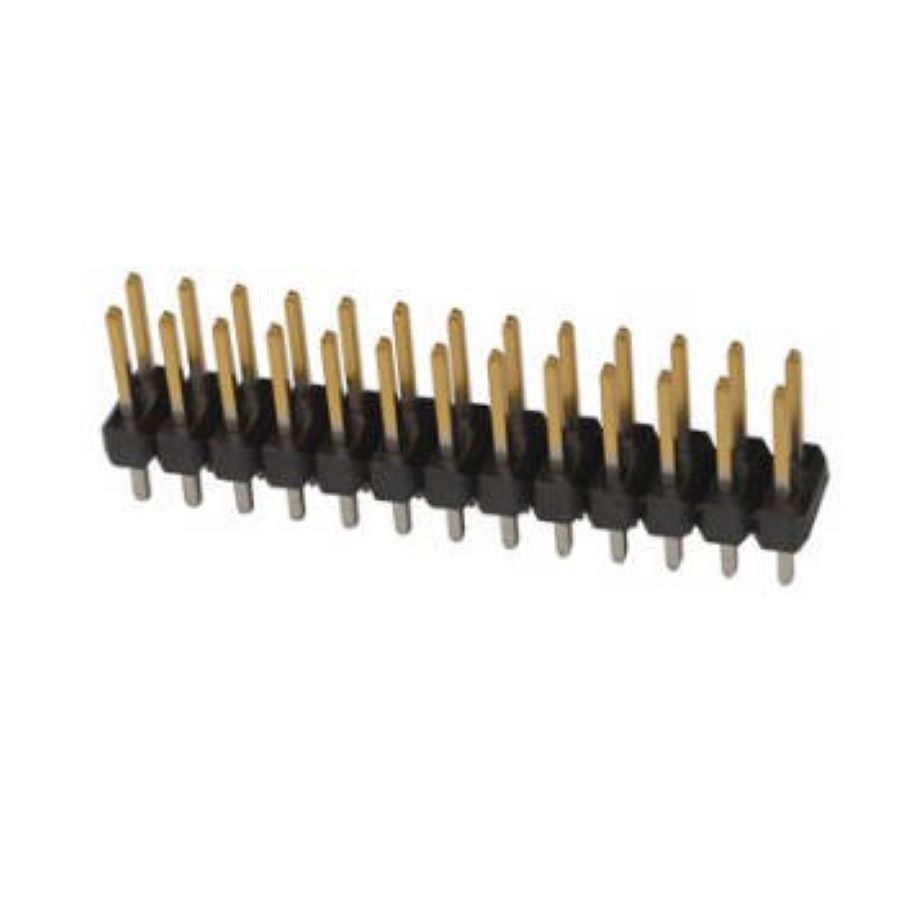

10-89-7262
Manufacturer:
Molex
Mfr.Part #:
10-89-7262
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:26 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Termination | Through Hole |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Number of Circuits | 26 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 26 |
| ELV | Compliant |
| Connector Type | Male Pin |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Contact Resistance | 15 mΩ |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Mating Length | 6.096 mm |
| Mating Post Length | 6.1 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 2.72 mm |
Stock: 342
Distributors
pcbx
pcbxUnit Price$1.84580
Ext.Price$1.84580
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.84580 | $1.84580 |
| 10 | $1.69618 | $16.96180 |
| 25 | $1.57734 | $39.43350 |
| 50 | $1.56452 | $78.22600 |
| 100 | $1.46450 | $146.45000 |
| 300 | $1.42377 | $427.13100 |
| 500 | $1.38417 | $692.08500 |
| 1000 | $1.34566 | $1345.66000 |
