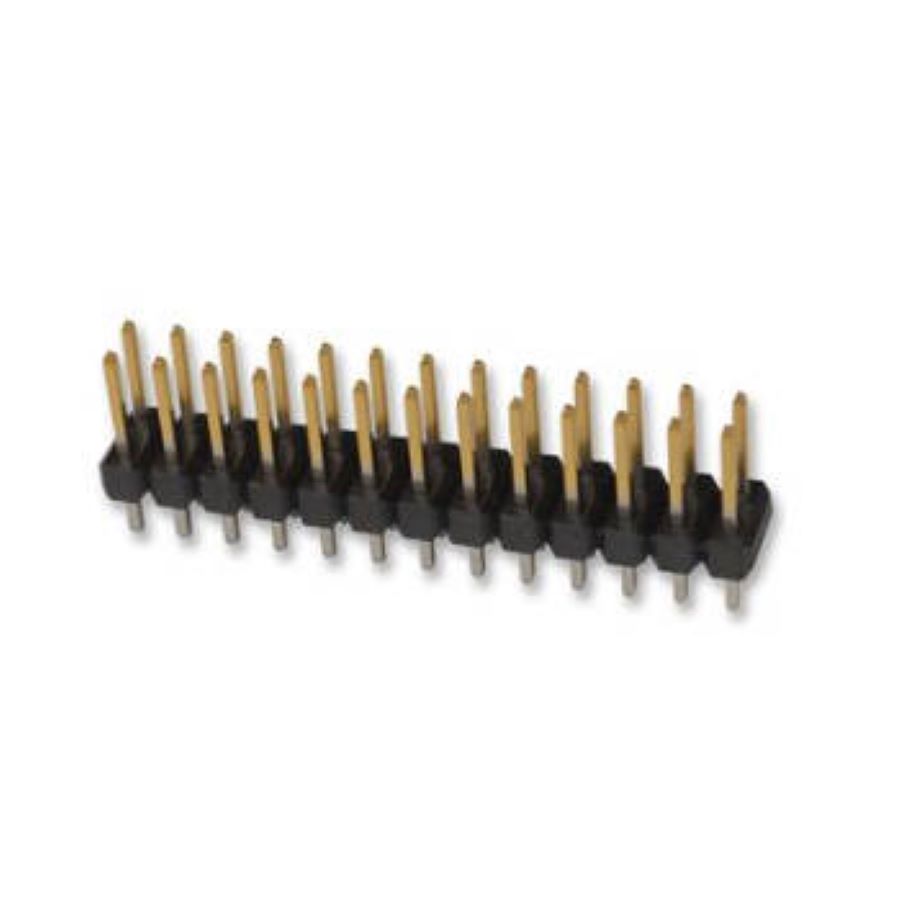

10-89-7402
Manufacturer:
Molex
Mfr.Part #:
10-89-7402
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:40 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Termination | Through Hole |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Halogen Free | Low Halogen |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass, Copper |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Number of Circuits | 40 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 40 |
| ELV | Compliant |
| Connector Type | Male Pin |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Contact Resistance | 15 mΩ |
| Housing Color | Black |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Contact Mating Length | 6.096 mm |
| Contact Gender | Male |
| Mating Post Length | 6.1 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Termination Post Length | 2.72 mm |
Stock: 252
Distributors
pcbx
pcbxUnit Price$3.19145
Ext.Price$3.19145
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.19145 | $3.19145 |
| 10 | $2.79134 | $27.91340 |
| 25 | $2.58445 | $64.61125 |
| 50 | $2.55367 | $127.68350 |
| 100 | $2.45963 | $245.96300 |
| 300 | $2.24546 | $673.63800 |
| 500 | $2.04994 | $1024.97000 |
| 1000 | $1.87144 | $1871.44000 |
