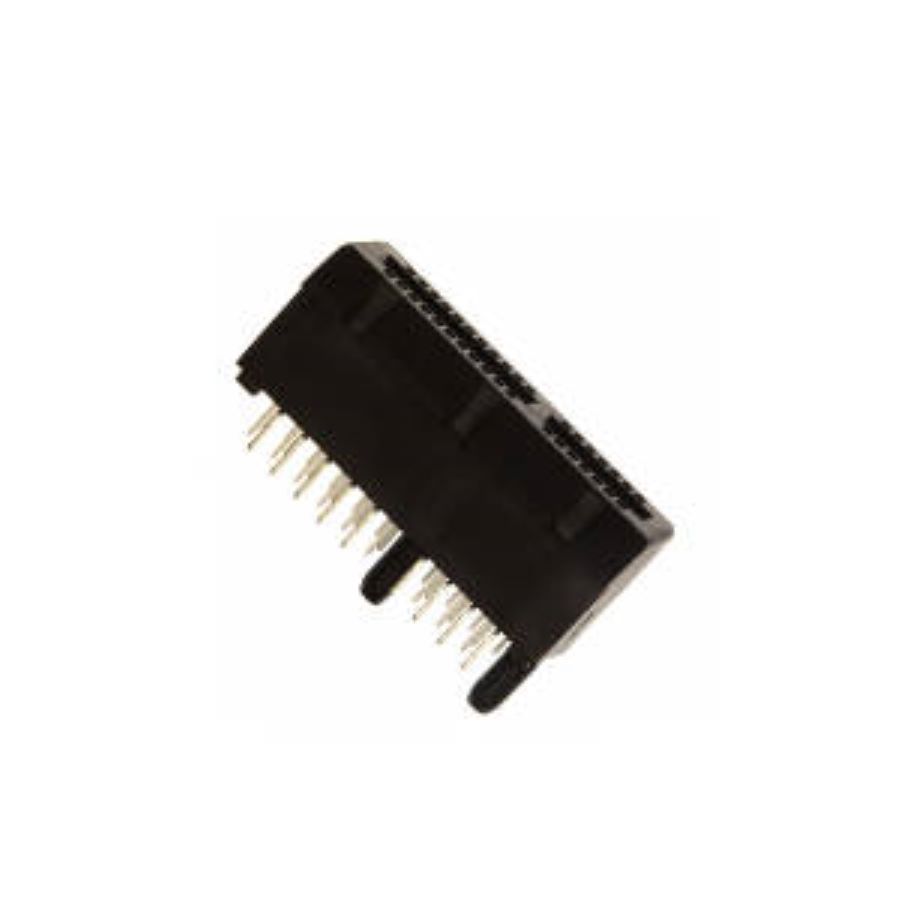

10018783-10000TLF
Manufacturer:
Amphenol
Mfr.Part #:
10018783-10000TLF
Datasheet:
Description:
Edgeboard Connectors Through Hole Female Vertical Number of Positions:36
| Parameter | Value |
|---|---|
| Length | 25 mm |
| Width | 7.4 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 300 V |
| Packaging | Tray |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 2 mm |
| Current Rating | 1.1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Female |
| Number of Contacts | 36 |
| Connector Type | Cantilever |
| Contact Type | Cantilever |
| Number of Positions | 36 |
| Number of Rows | 2 |
| Insulation Material | Nylon |
| Card Thickness | 1.57 mm |
| Housing Material | Nylon |
| Max Voltage Rating (AC) | 300 V |
| Housing Color | Black |
| Board Thickness | 1.56 mm |
| Mounting Angle | Vertical |
| Card Type | PCI Express |
Stock: 2622
Distributors
pcbx
pcbxUnit Price$0.67625
Ext.Price$0.67625
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.67625 | $0.67625 |
| 10 | $0.58050 | $5.80500 |
| 25 | $0.55913 | $13.97825 |
| 50 | $0.52920 | $26.46000 |
| 100 | $0.49241 | $49.24100 |
| 300 | $0.45818 | $137.45400 |
| 500 | $0.42633 | $213.16500 |
| 1000 | $0.39669 | $396.69000 |
