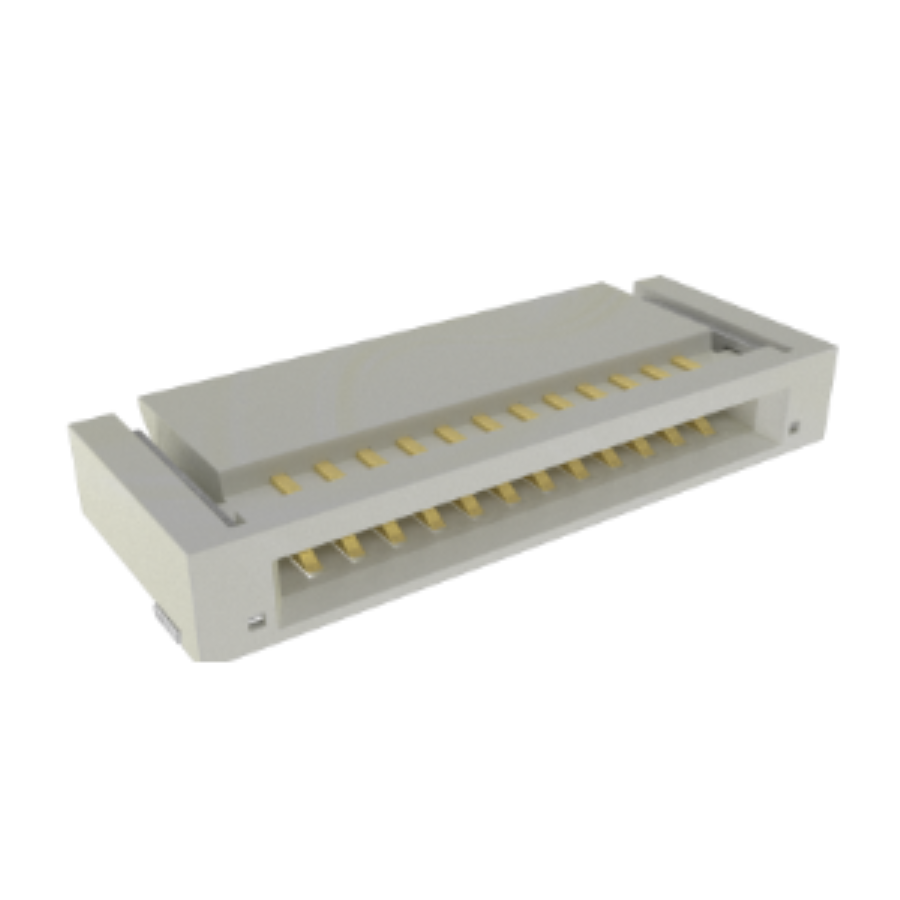

10051922-1010ELF
Manufacturer:
Amphenol
Mfr.Part #:
10051922-1010ELF
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:10 500 mA 50 V
| Parameter | Value |
|---|---|
| Length | 7.5 mm |
| Width | 3.4 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 3.4 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 500 µm |
| Current Rating | 500 mA |
| Max Voltage Rating (DC) | 50 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Gender | Female |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Contact Location | Bottom |
| Contact Resistance | 30 mΩ |
| Max Voltage Rating (AC) | 50 V |
| Actuator Material | Glass, Nylon, Polyamide |
| Housing Color | Natural |
| Mounting Angle | Right Angle |
Stock: 53
Distributors
pcbx
pcbxUnit Price$0.43536
Ext.Price$0.43536
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.43536 | $0.43536 |
| 10 | $0.42643 | $4.26430 |
| 25 | $0.42339 | $10.58475 |
| 50 | $0.42038 | $21.01900 |
| 100 | $0.41739 | $41.73900 |
