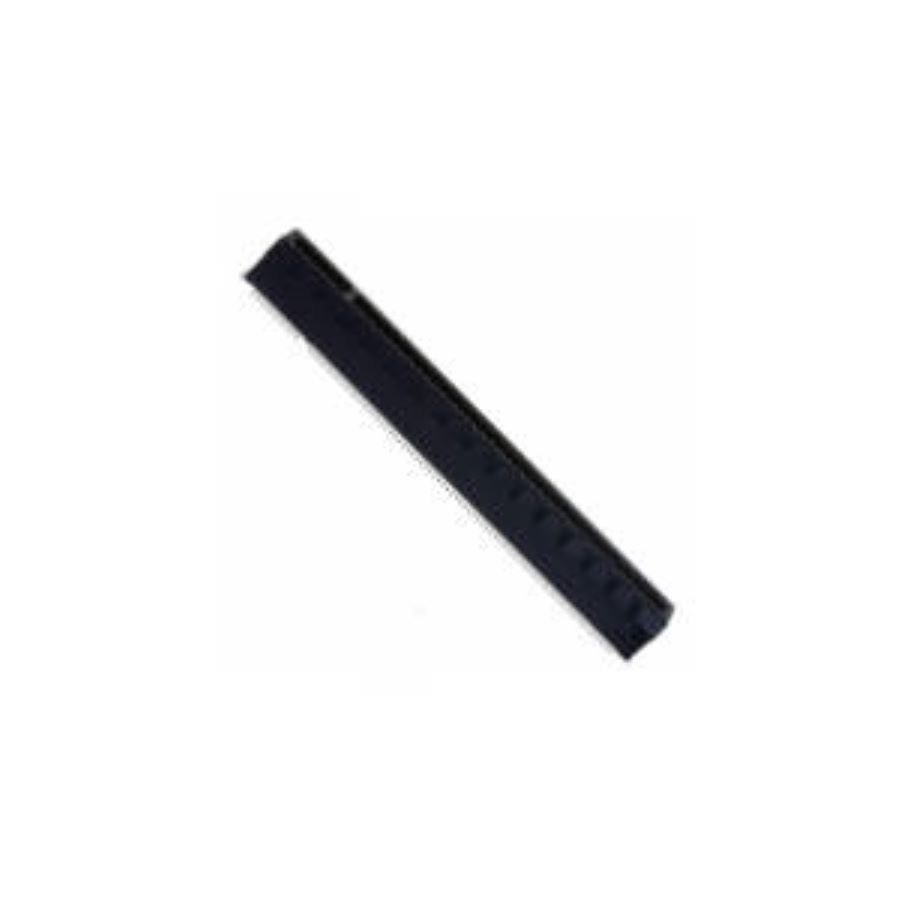

10061913-103CLF
Manufacturer:
Amphenol
Mfr.Part #:
10061913-103CLF
Datasheet:
Description:
Edgeboard Connectors SMD/SMT Female Vertical Number of Positions:164
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 300 V |
| Packaging | Tray |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| Contact Plating | Gold over Nickel |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 1 mm |
| Current Rating | 1.1 A |
| Orientation | Straight |
| Color | Black |
| Gender | Female |
| Connector Type | Cantilever |
| Contact Type | Cantilever |
| Number of Positions | 164 |
| Number of Rows | 2 |
| Insulation Material | Nylon |
| Card Thickness | 1.57 mm |
| Housing Material | Nylon |
| Contact Resistance | 30 mΩ |
| Max Voltage Rating (AC) | 300 V |
| Housing Color | Black |
| Board Thickness | 1.56 mm |
| Mounting Angle | Vertical |
| Card Type | PCI Express |
Stock: 1737
Distributors
pcbx
pcbxUnit Price$3.80406
Ext.Price$3.80406
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.80406 | $3.80406 |
| 10 | $3.23481 | $32.34810 |
| 25 | $3.03211 | $75.80275 |
| 50 | $2.88733 | $144.36650 |
| 100 | $2.74949 | $274.94900 |
| 300 | $2.54455 | $763.36500 |
| 500 | $2.35489 | $1177.44500 |
| 1000 | $2.17934 | $2179.34000 |
