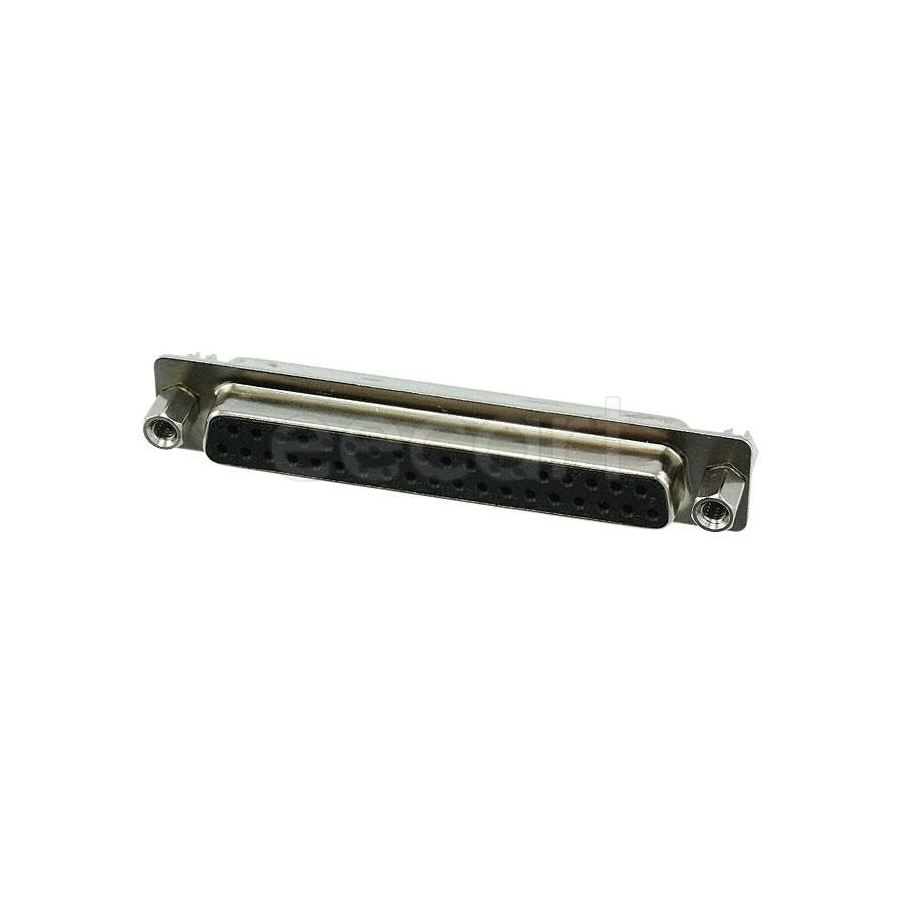

10090098-S374VLF
Manufacturer:
Amphenol
Mfr.Part #:
10090098-S374VLF
Datasheet:
Description:
D-Sub Connectors Through Hole Receptacle Number of Positions:37 Solder Female
| Parameter | Value |
|---|---|
| Length | 69.32 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tray |
| Voltage Rating | 250 V |
| Depth | 12.55 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Pitch | 2.77 mm |
| Type | Receptacle |
| Number of Terminals | 37 |
| Current Rating | 5 A |
| Orientation | Straight |
| Color | Black |
| Gender | Female |
| Number of Contacts | 37 |
| Connector Type | D-Sub, Receptacle, Signal |
| Contact Type | Signal |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 250 V |
| Max Supply Voltage (AC) | 250 V |
| Shell Material | Steel |
