10103593-0001LF
Manufacturer:
Amphenol
Mfr.Part #:
10103593-0001LF
Datasheet:
Description:

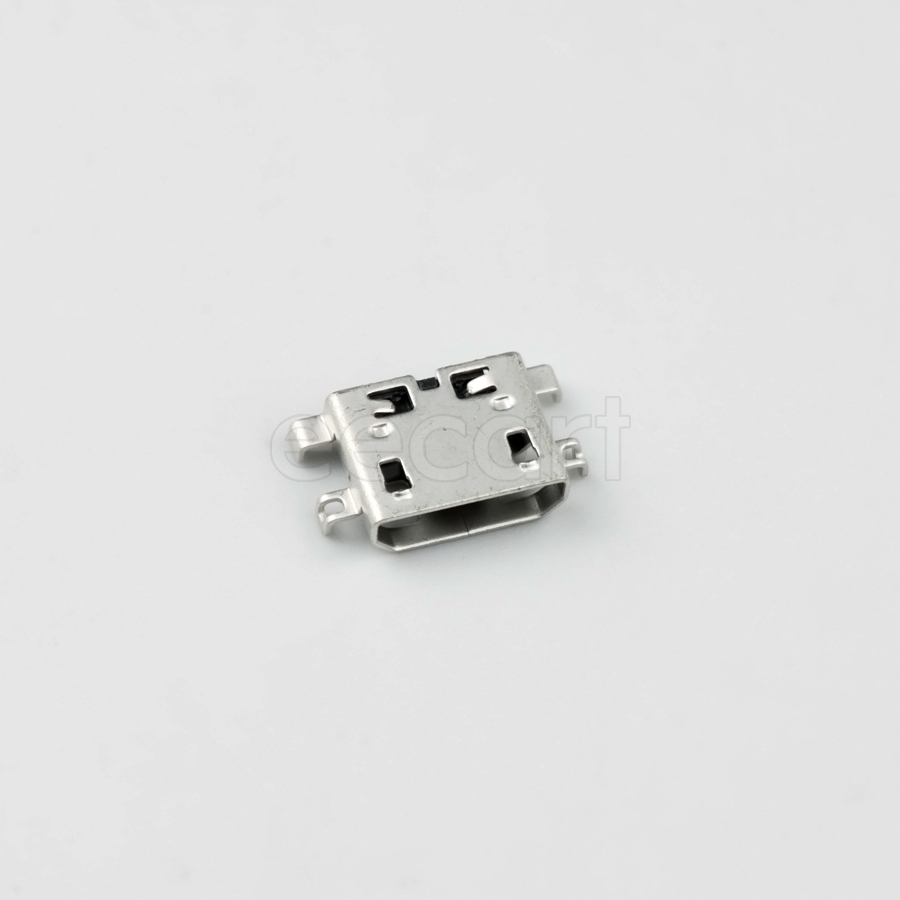

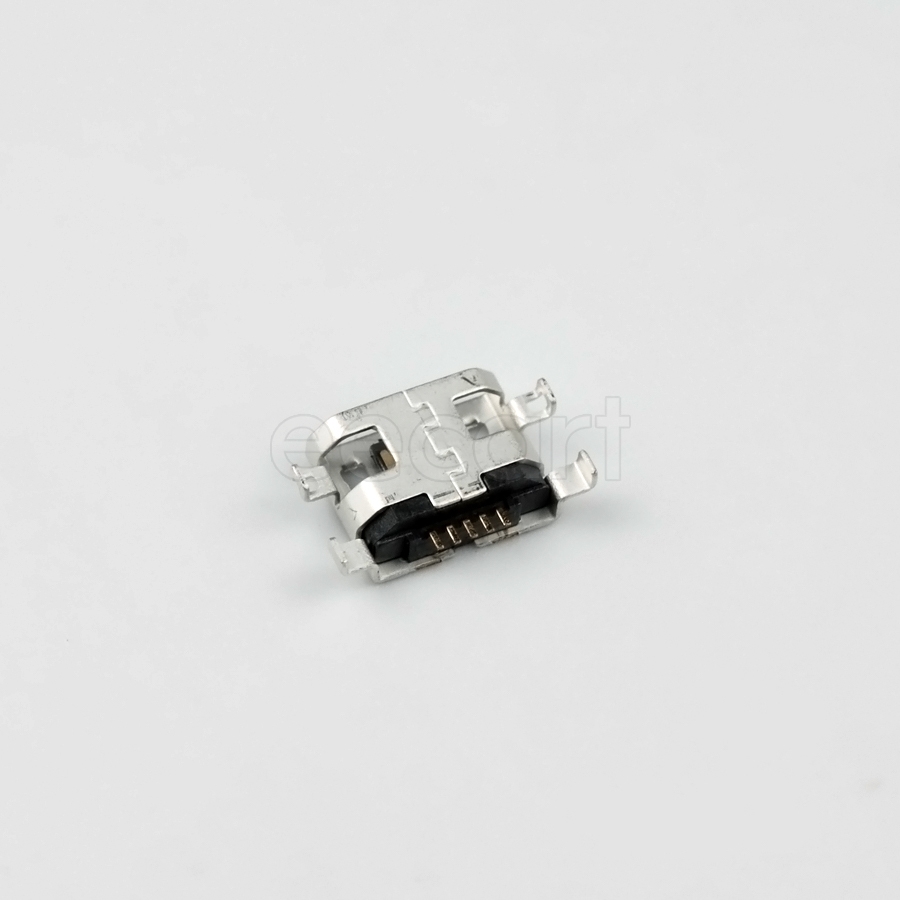

USB Connectors SMD/SMT USB Connectors Receptacle USB 2.0
| Parameter | Value |
|---|---|
| Length | 10.5 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Voltage Rating | 100 V |
| Depth | 6.92 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Features | Shielded |
| Pitch | 650 µm |
| Type | USB Connectors |
| Number of Terminals | 5 |
| Current Rating | 1.8 A |
| Orientation | Right Angle |
| Gender | Receptacle |
| Shielding | Shielded |
| Number of Contacts | 5 |
| USB Standard | USB 2.0 |
| Connector Type | Plug, USB |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 100 V |
Stock: 7482
Distributors
pcbx
pcbxUnit Price$0.47534
Ext.Price$0.47534
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.47534 | $0.47534 |
| 10 | $0.42576 | $4.25760 |
| 25 | $0.37959 | $9.48975 |
| 50 | $0.37050 | $18.52500 |
| 100 | $0.36163 | $36.16300 |
| 300 | $0.34185 | $102.55500 |
| 500 | $0.32316 | $161.58000 |
| 1000 | $0.23083 | $230.83000 |
| 3000 | $0.22477 | $674.31000 |
| 5000 | $0.21886 | $1094.30000 |
