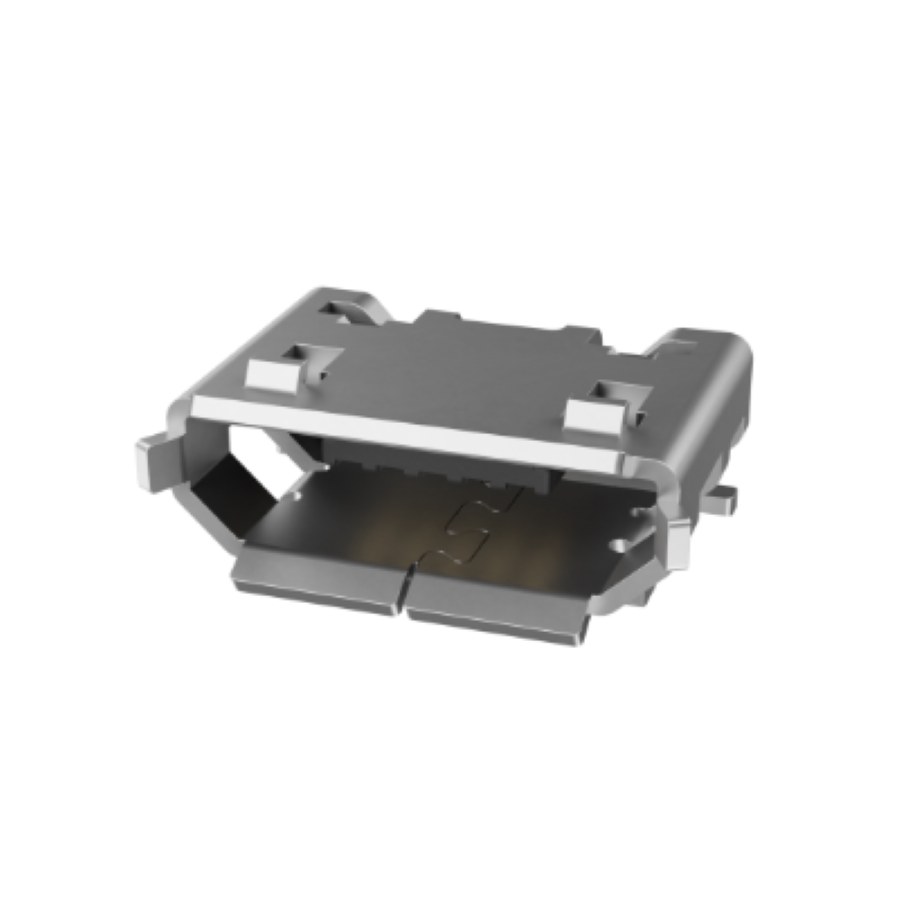

10103594-0001LF
Manufacturer:
Amphenol
Mfr.Part #:
10103594-0001LF
Datasheet:
Description:
USB Connectors SMD/SMT USB-B (USB TYPE-B) Receptacle USB 2.0
| Parameter | Value |
|---|---|
| Length | 8.04 mm |
| Termination | Solder |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 5 |
| Height | 3.05 mm |
| Packaging | Reel |
| Voltage Rating | 100 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Features | Shielded |
| Contact Material(Contact Finish) | Copper |
| Pitch | 650 µm |
| Type | USB-B (USB TYPE-B) |
| Number of Terminals | 5 |
| Current Rating | 1.8 A |
| Orientation | Right Angle |
| Color | Black |
| Gender | Receptacle |
| Shielding | Shielded |
| Number of Contacts | 5 |
| USB Standard | USB 2.0 |
| Connector Type | Receptacle, USB |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 100 V |
| Mounting Angle | Right Angle |
Stock: 606
Distributors
pcbx
pcbxUnit Price$0.37315
Ext.Price$0.37315
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.37315 | $0.37315 |
| 10 | $0.34782 | $3.47820 |
| 25 | $0.32421 | $8.10525 |
| 50 | $0.30221 | $15.11050 |
| 100 | $0.28397 | $28.39700 |
| 300 | $0.26683 | $80.04900 |
| 500 | $0.25073 | $125.36500 |
| 1000 | $0.23560 | $235.60000 |
| 3000 | $0.22138 | $664.14000 |
