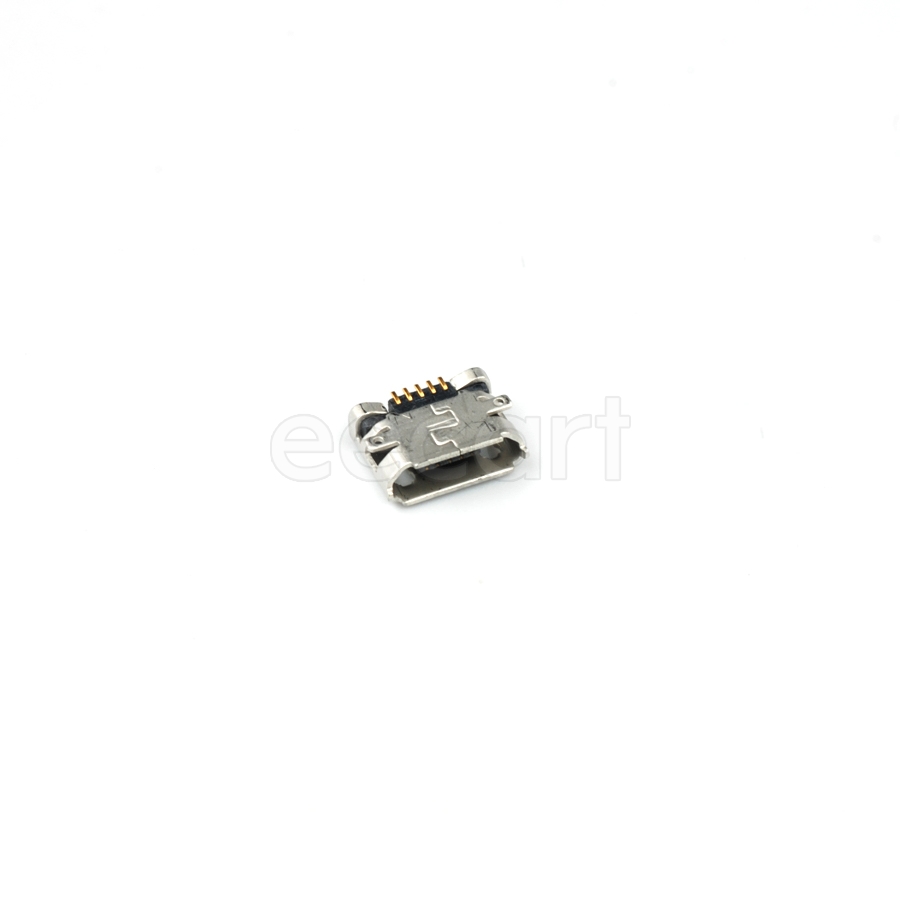

10104110-0001LF
Manufacturer:
Amphenol
Mfr.Part #:
10104110-0001LF
Datasheet:
Description:
USB Connectors SMD/SMT USB Receptacle USB 2.0
| Parameter | Value |
|---|---|
| Length | 8.06 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Height | 2.99 mm |
| Voltage Rating | 100 V |
| Depth | 5.6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 650 µm |
| Type | USB |
| Number of Terminals | 5 |
| Current Rating | 1.8 A |
| Orientation | Right Angle |
| Gender | Receptacle |
| Shielding | Shielded |
| Number of Contacts | 5 |
| USB Standard | USB 2.0 |
| Connector Type | Receptacle, USB |
| Number of Positions | 5 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 100 V |
| Mounting Angle | Right Angle |
| Packaging | Reel |
| RoHS | Compliant |
Stock: 4238
Distributors
pcbx
pcbxUnit Price$0.39965
Ext.Price$0.39965
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.39965 | $0.39965 |
| 10 | $0.35453 | $3.54530 |
| 25 | $0.34001 | $8.50025 |
| 50 | $0.32609 | $16.30450 |
| 100 | $0.31273 | $31.27300 |
| 300 | $0.30660 | $91.98000 |
| 500 | $0.30060 | $150.30000 |
| 1000 | $0.29294 | $292.94000 |
