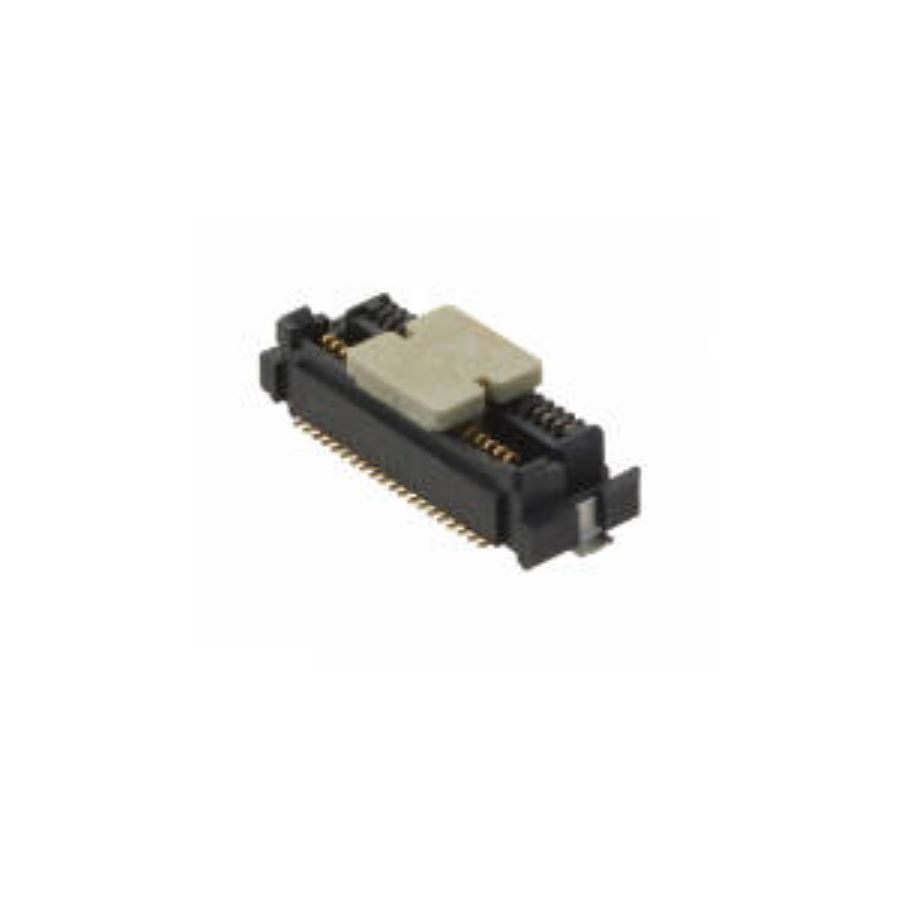

10106813-071112LF
Manufacturer:
Amphenol
Mfr.Part #:
10106813-071112LF
Datasheet:
Description:
Board to Board Connectors SMD/SMT Non-Gendered Number of Positions:70 Number of Rows:2 Row Spacing:5.1 mm Pitch:500 µm
| Parameter | Value |
|---|---|
| Length | 22.24 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| Voltage Rating | 500 V |
| Depth | 5.1 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 500 µm |
| Current Rating | 500 mA |
| Orientation | Straight |
| Gender | Receptacle |
| Number of Contacts | 70 |
| Connector Type | Non-Gendered |
| Number of Positions | 70 |
| Number of Rows | 2 |
| Row Spacing | 5.1 mm |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Contact Resistance | 30 mΩ |
| Housing Color | Black |
| Stack Height | 4 mm |
| Mated Stacking Heights | 5.5 mm |
| Mounting Angle | Vertical |
Stock: 1
Distributors
pcbx
pcbxUnit Price$4.80134
Ext.Price$4.80134
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.80134 | $4.80134 |
| 10 | $4.69843 | $46.98430 |
| 25 | $4.66772 | $116.69300 |
| 50 | $4.63721 | $231.86050 |
| 100 | $4.60692 | $460.69200 |
