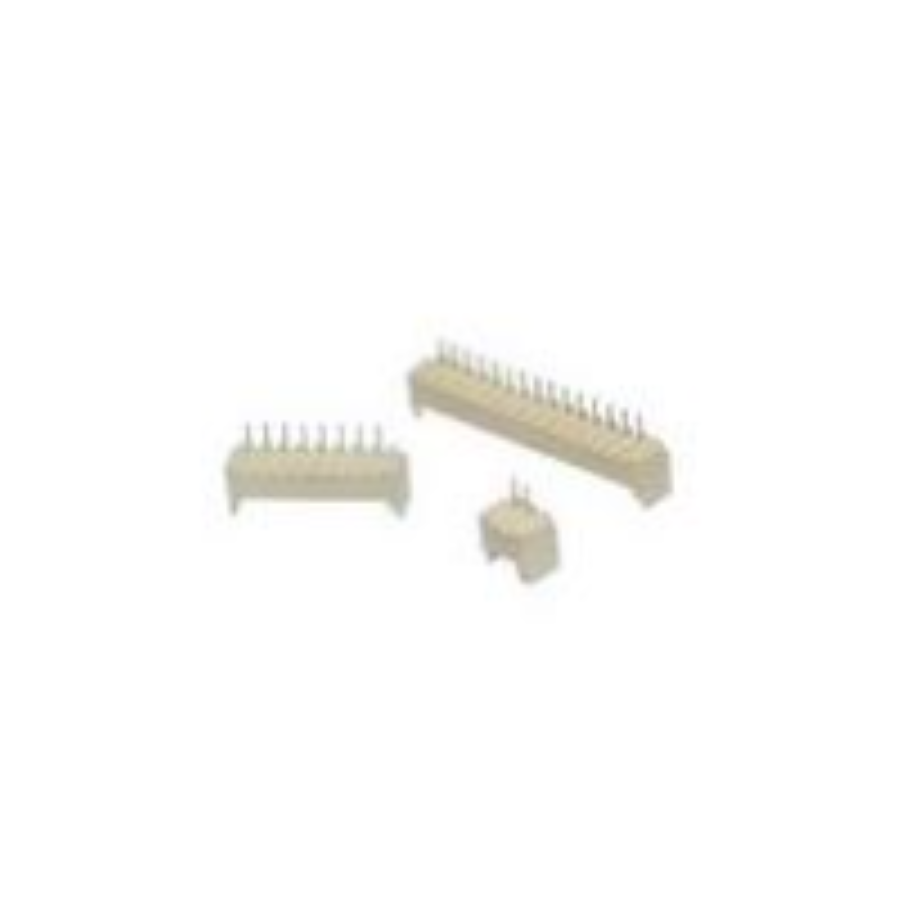

10114829-10102LF
Manufacturer:
Amphenol
Mfr.Part #:
10114829-10102LF
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:2 Pitch:1.25 mm
| Parameter | Value |
|---|---|
| Length | 4.25 mm |
| Termination | Through Hole |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| Voltage Rating | 125 V |
| Depth | 3.2 mm |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead Length | 2.3 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.25 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Orientation | Straight |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 2 |
| Connector Type | Male Pin |
| Wire/Cable Gauge | 32 AWG |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 125 V |
| Housing Color | Natural |
| Schedule B | 8536694040 |
| Termination Post Length | 2.3 mm |
Stock: 20907
Distributors
pcbx
pcbxUnit Price$0.21260
Ext.Price$0.21260
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21260 | $0.21260 |
| 10 | $0.18082 | $1.80820 |
| 25 | $0.17130 | $4.28250 |
| 50 | $0.16228 | $8.11400 |
| 100 | $0.15373 | $15.37300 |
| 300 | $0.14522 | $43.56600 |
| 500 | $0.13719 | $68.59500 |
| 1000 | $0.12756 | $127.56000 |
