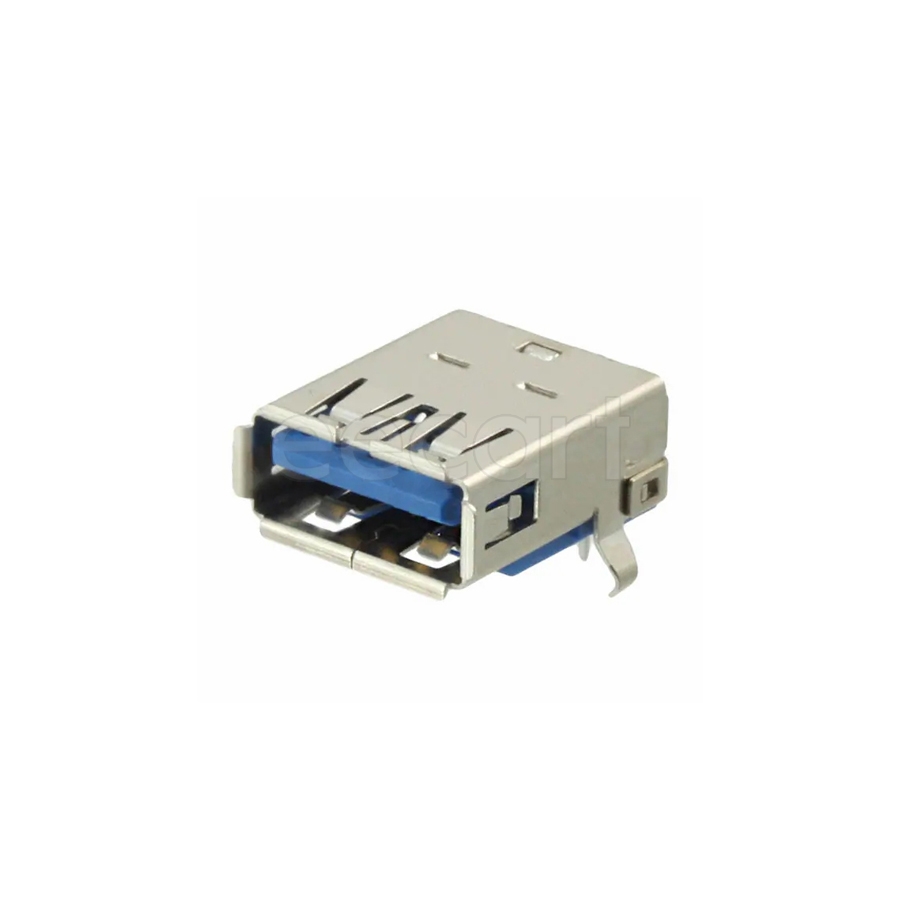

10117835-002LF
Manufacturer:
Amphenol
Mfr.Part #:
10117835-002LF
Datasheet:
Description:
USB Connectors Through Hole Receptacle USB 3.0
| Parameter | Value |
|---|---|
| Length | 15.58 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tray |
| Voltage Rating | 30 V |
| Depth | 16.4 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2 mm |
| Number of Terminals | 9 |
| Current Rating | 1.8 A |
| Orientation | Right Angle |
| Gender | Receptacle |
| Shielding | Unshielded |
| Number of Contacts | 9 |
| USB Standard | USB 3.0 |
| Connector Type | Receptacle, USB |
| Number of Positions | 9 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 30 V |
| Plating | Nickel |
