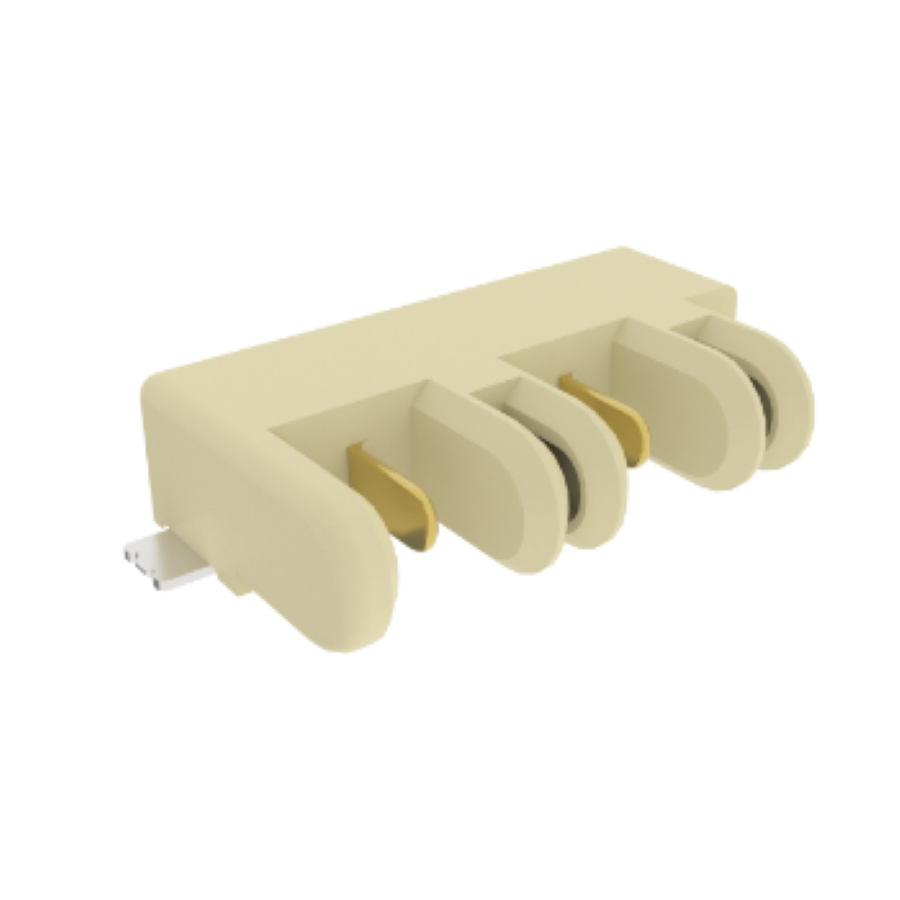

10120045-201LF
Manufacturer:
Amphenol
Mfr.Part #:
10120045-201LF
Datasheet:
Description:
Board to Board Connectors SMD/SMT Number of Positions:2 Number of Rows:1 Pitch:3 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| Voltage Rating | 125 V |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 3 mm |
| Current Rating | 5 A |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic (TP) |
| Stack Height | 3.7 mm |
| Mounting Angle | Rotatable |
Stock: 438
Distributors
pcbx
pcbxUnit Price$0.37531
Ext.Price$0.37531
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.37531 | $0.37531 |
| 10 | $0.32658 | $3.26580 |
| 25 | $0.31120 | $7.78000 |
| 50 | $0.29675 | $14.83750 |
| 100 | $0.28298 | $28.29800 |
| 300 | $0.26476 | $79.42800 |
| 500 | $0.24771 | $123.85500 |
| 1000 | $0.23176 | $231.76000 |
| 3000 | $0.21684 | $650.52000 |
| 5000 | $0.20288 | $1014.40000 |
| 10000 | $0.18980 | $1898.00000 |
