10137061-00021LF
Manufacturer:
Amphenol
Mfr.Part #:
10137061-00021LF
Datasheet:
Description:

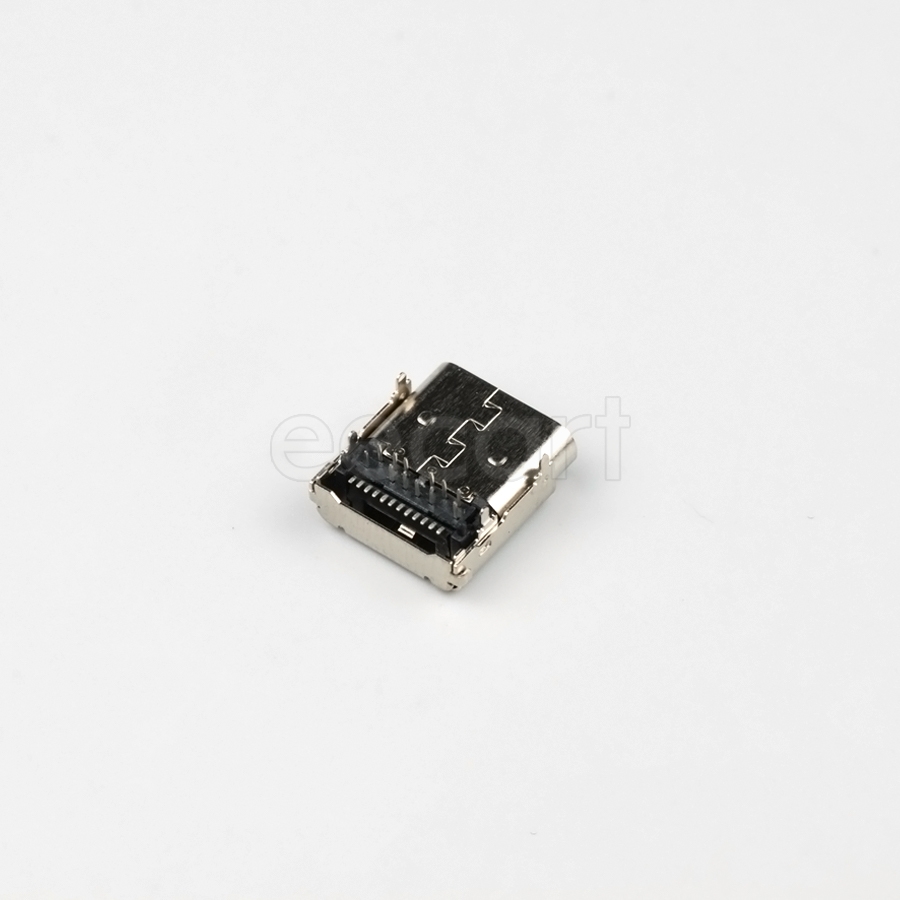

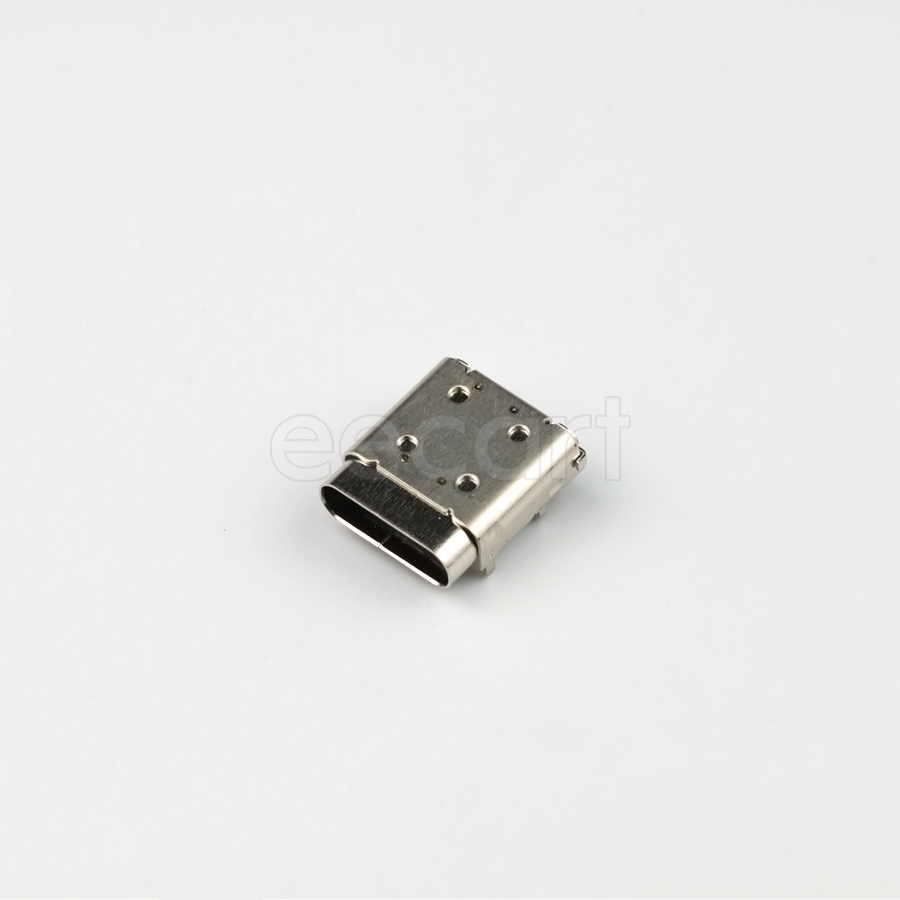

USB Connectors SMD/SMT Type C Receptacle USB 3.0
| Parameter | Value |
|---|---|
| Length | 9.65 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Gold |
| Pitch | 500 µm |
| Type | Type C |
| Number of Terminals | 24 |
| Current Rating | 0.25 A, 1.25 A, 5 A |
| Orientation | Right Angle |
| Gender | Receptacle |
| Shielding | Shielded |
| Number of Contacts | 24 |
| USB Standard | USB 3.0 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Mounting Angle | Right Angle |
Stock: 729
Distributors
pcbx
pcbxUnit Price$1.36447
Ext.Price$1.36447
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.36447 | $1.36447 |
| 10 | $1.16441 | $11.64410 |
| 25 | $1.08918 | $27.22950 |
| 50 | $1.03874 | $51.93700 |
| 100 | $0.98916 | $98.91600 |
| 300 | $0.93420 | $280.26000 |
| 500 | $0.88229 | $441.14500 |
| 1000 | $0.79509 | $795.09000 |
